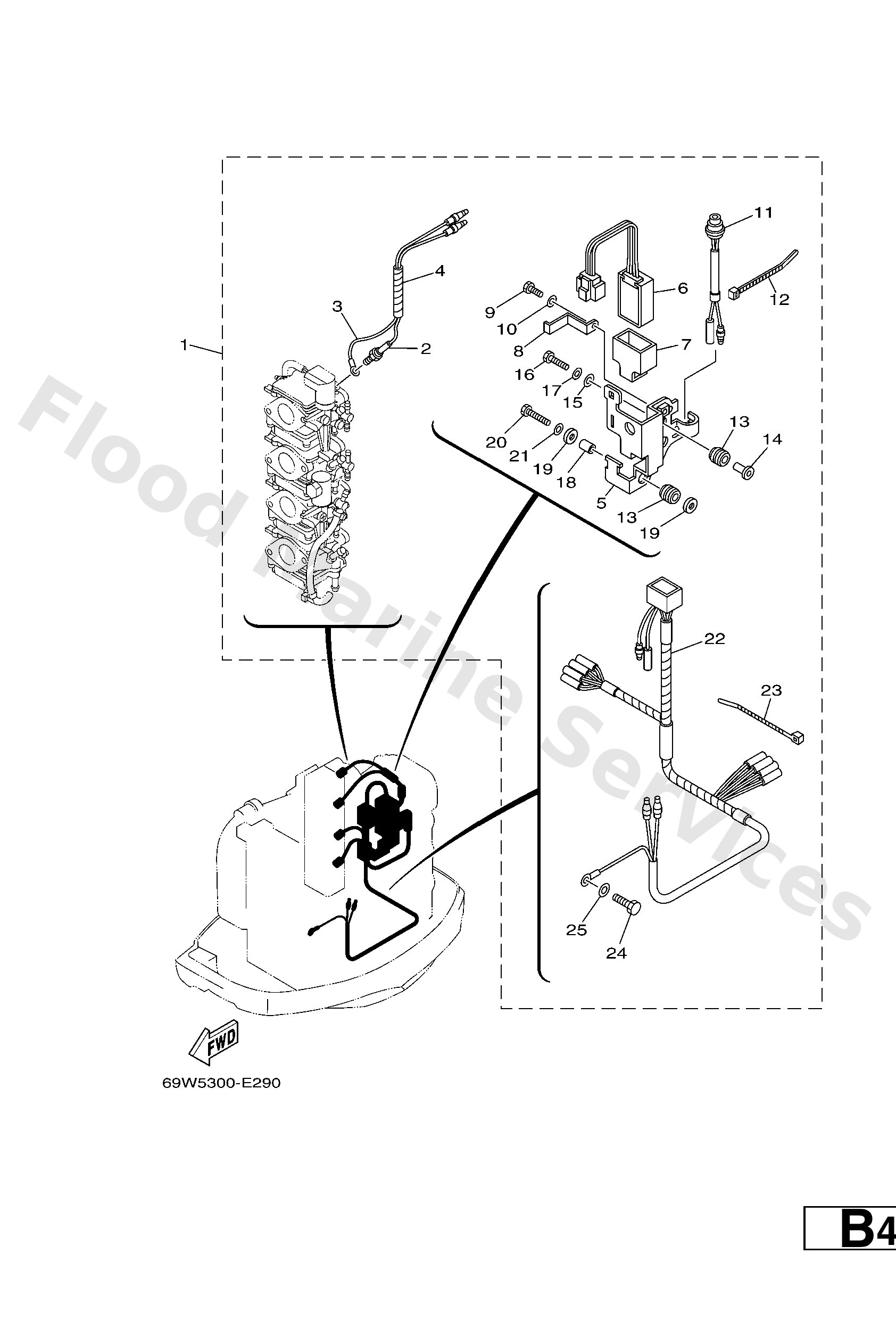

Diagram: OPTIONAL PARTS

Diagram

Parts List

69W8379001 (AP)
Heater assembly
Diagram Reference: 1
Get Part
69W8379200
Heater
Diagram Reference: 2
Get Part
69W8335400
Wire, earth lead 1
Diagram Reference: 3
Get Part
9044606M90
Hose
Diagram Reference: 4
Get Part
69W1429100
Bracket 1
Diagram Reference: 5
Get Part
67F8193000
Control unit assembly
Diagram Reference: 6
Get Part
69W8554600
Band
Diagram Reference: 7
Get Part
69W1429200
Bracket 2
Diagram Reference: 8
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 10
Get Part
67F8256000
Thermo switch assembly
Diagram Reference: 11
Get Part
9046513M18
Clamp
Diagram Reference: 12
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 13
Get Part
9038706M60
Collar (6h3)
Diagram Reference: 14
Get Part
9020106M31
Washer (6a0)
Diagram Reference: 15
Get Part
9709506025
Bolt
Diagram Reference: 16
Get Part
9038008M05
Bushing (6a5)
Diagram Reference: 18
Get Part
9020108M05
-
Diagram Reference: 19
Get Part
9709508030
Bolt, hexagon (fj1)
Diagram Reference: 20
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 21
Get Part
69W8197100
Wire, Lead
Diagram Reference: 22
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 24
Get Part
