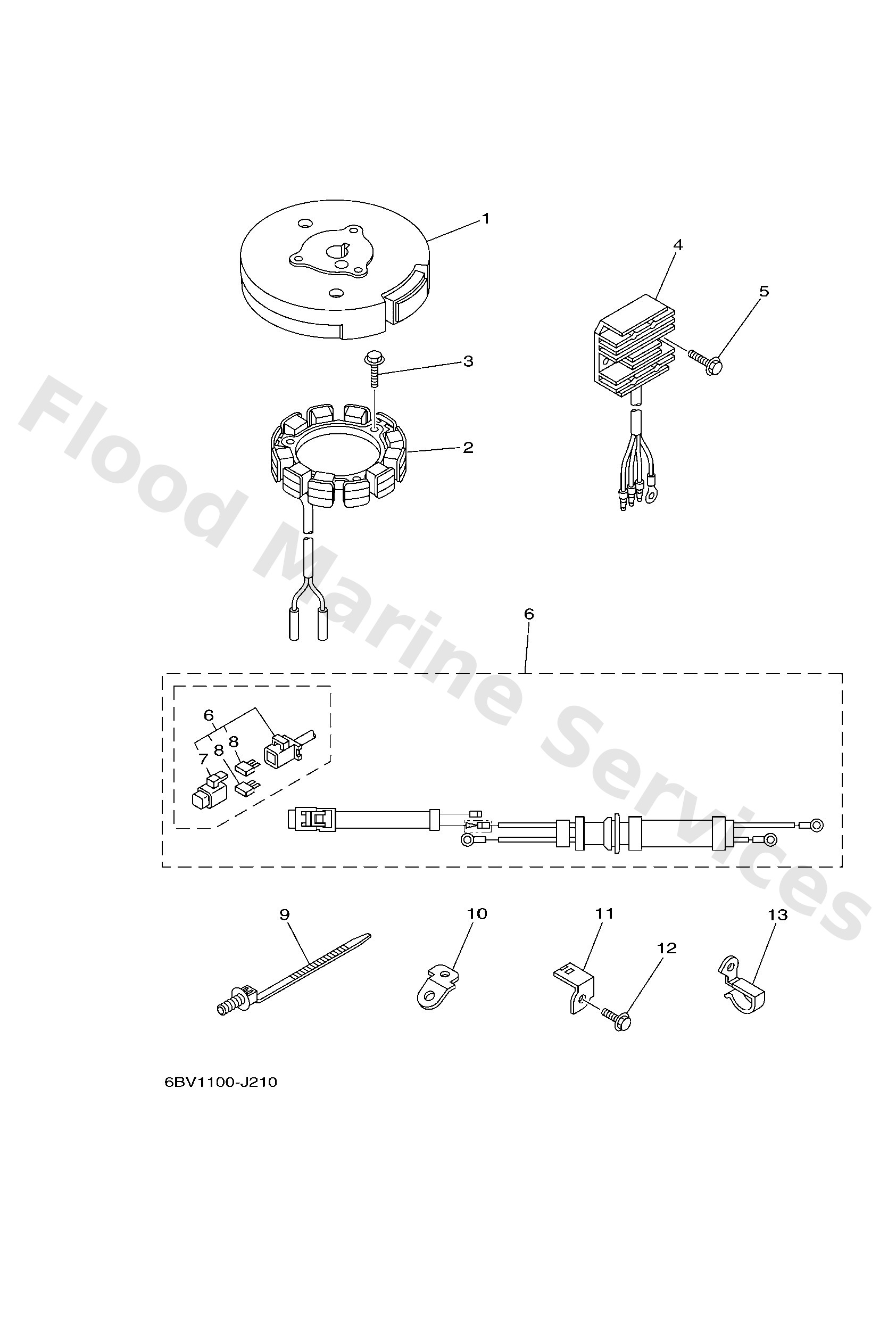

Diagram: OPTIONAL PARTS

Diagram

Parts List

6BX85550A0 (AP EXCEPT FOR RUS)
Rotor assembly
Diagram Reference: 1
Get Part
6BX85510A0 (AP EXCEPT FOR RUS)
Lighting coil assembly
Diagram Reference: 2
Get Part
9759506520 (AP EXCEPT FOR RUS)
Bolt(7u8)
Diagram Reference: 3
Get Part
6BX8196000 (AP EXCEPT FOR RUS)
Rectifier & regulator assembly
Diagram Reference: 4
Get Part
9759506516 (AP EXCEPT FOR RUS)
Bolt, with washer(6r6)
Diagram Reference: 5
Get Part
6BX8194900 (AP EXCEPT FOR RUS)
Wire, lead
Diagram Reference: 6
Get Part
67F8215B00
Cap (black)
Diagram Reference: 7
Get Part
67F8215100
Fuse
Diagram Reference: 8
Get Part
9046430009 (AP EXCEPT FOR RUS)
Clamp
Diagram Reference: 9
Get Part
6BX8258100 (AP EXCEPT FOR RUS)
Stay, cord clamp
Diagram Reference: 10
Get Part
6BX8238800 (AP EXCEPT FOR RUS)
Plate
Diagram Reference: 11
Get Part
9010906M80 (AP EXCEPT FOR RUS)
Bolt
Diagram Reference: 12
Get Part
9046508371 (AP EXCEPT FOR RUS)
Clamp(4km)
Diagram Reference: 13
