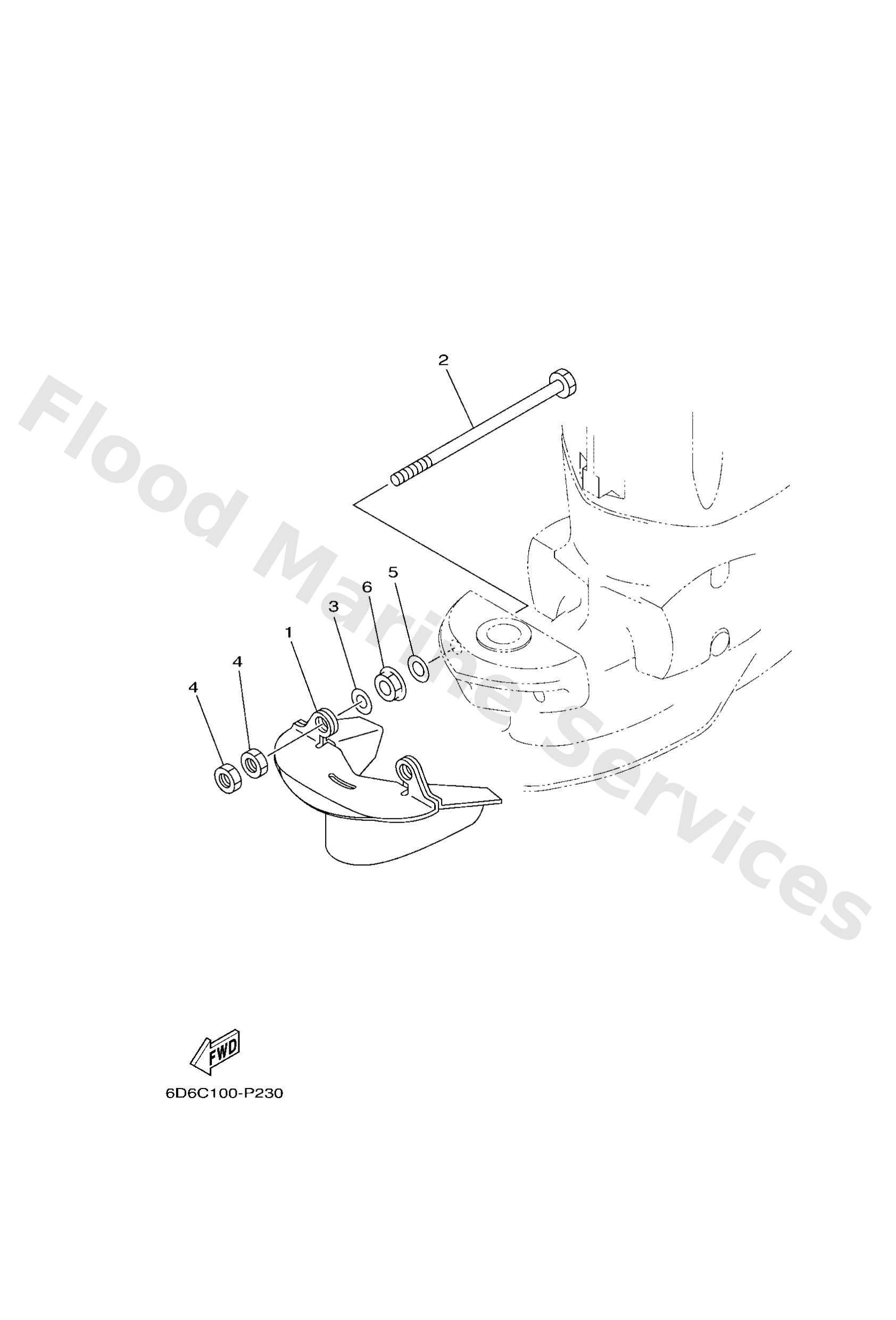

Diagram: OPTIONAL PARTS 1

Diagram

Parts List

67F45180004D (AP)
Plate, Splash
Diagram Reference: 1
Get Part
9010912006 (AP)
Bolt
Diagram Reference: 2
Get Part
9020112M01 (AP)
Washer, plate(6t4)
Diagram Reference: 3
Get Part
9538012700 (AP)
Nut(6t4)
Diagram Reference: 4
Get Part
9020112M16 (AP)
Washer, plate (679)
Diagram Reference: 5
Get Part
9578012300 (AP)
Nut, nylon (6f2)
Diagram Reference: 6
Get Part
