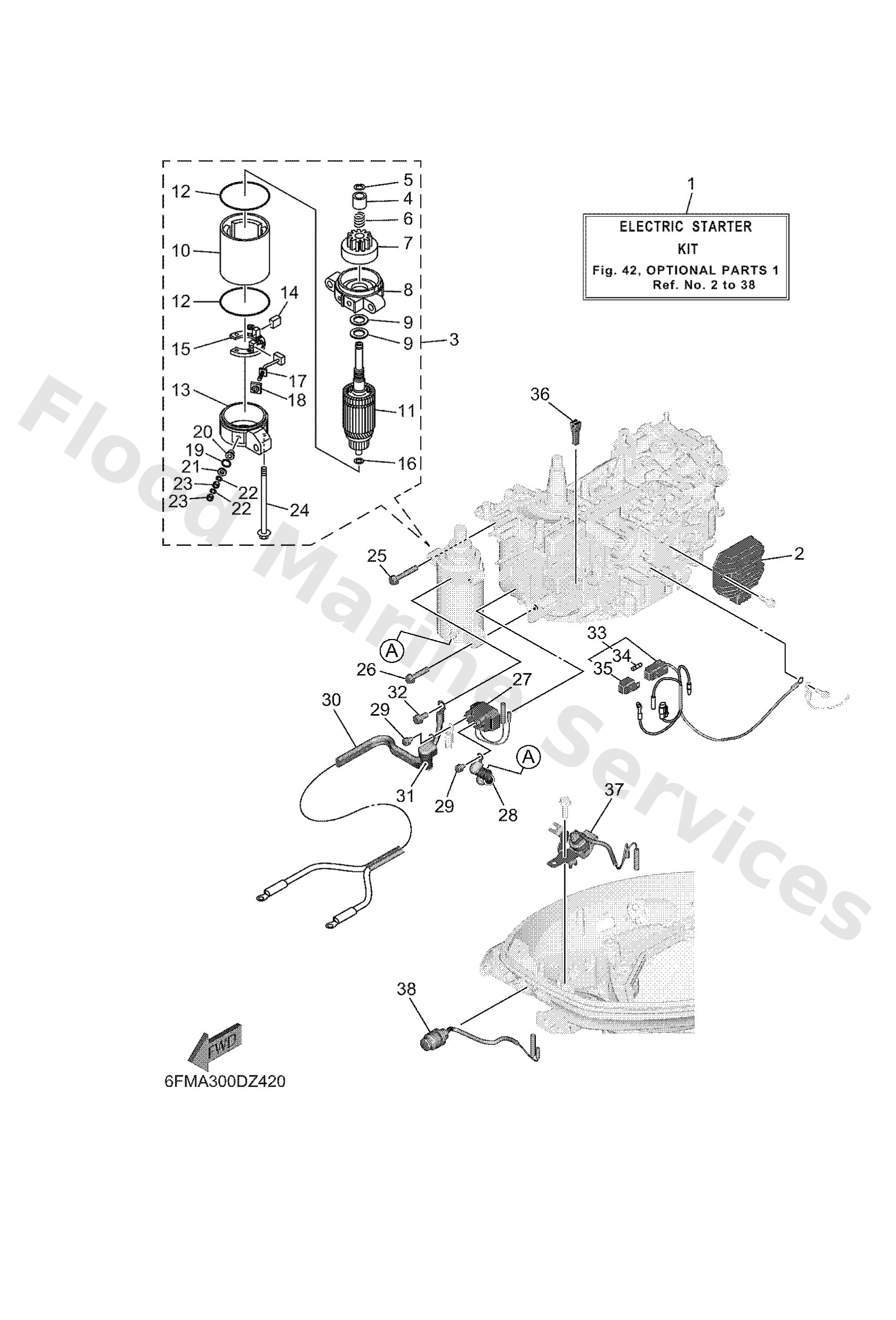

Parts List
Electric Starter Kit
Diagram Reference: 1
Rectifier & regulator assembly
Diagram Reference: 2
Starting motor assembly
Diagram Reference: 3
Stopper, Pinion
Diagram Reference: 4
Clip,Pinion Stopper
Diagram Reference: 5
Spring, Return
Diagram Reference: 6
Gear assembly, Starting Motor
Diagram Reference: 7
Front Bracket assembly
Diagram Reference: 8
Washer
Diagram Reference: 9
Stator assembly
Diagram Reference: 10
Armature assembly
Diagram Reference: 11
O-Ring
Diagram Reference: 12
Rear Bracket assembly
Diagram Reference: 13
Brush 2
Diagram Reference: 14
Brush Holder assembly
Diagram Reference: 15
Washer 2
Diagram Reference: 16
Brush 1
Diagram Reference: 17
Bush, Terminal 2
Diagram Reference: 18
O-Ring 1
Diagram Reference: 19
Bush, Terminal
Diagram Reference: 20
Washer
Diagram Reference: 21
Washer
Diagram Reference: 22
Nut
Diagram Reference: 23
Bolt
Diagram Reference: 24
Bolt, with washer
Diagram Reference: 25
Bolt, with washer
Diagram Reference: 26
Starter relay assembly
Diagram Reference: 27
Wire, lead
Diagram Reference: 28
Bolt, hexagon w/w deep recess
Diagram Reference: 29
Battery cable (l: 2.0m)
Diagram Reference: 30
Cover, lead wire
Diagram Reference: 31
Bolt, hexagon w/w deep recess
Diagram Reference: 32
Wire, lead
Diagram Reference: 33
Fuse
Diagram Reference: 34
Cap (yellow)
Diagram Reference: 35
Puller, fuse
Diagram Reference: 36
Neutral switch assembly
Diagram Reference: 37
Starting switch assembly
Diagram Reference: 38
