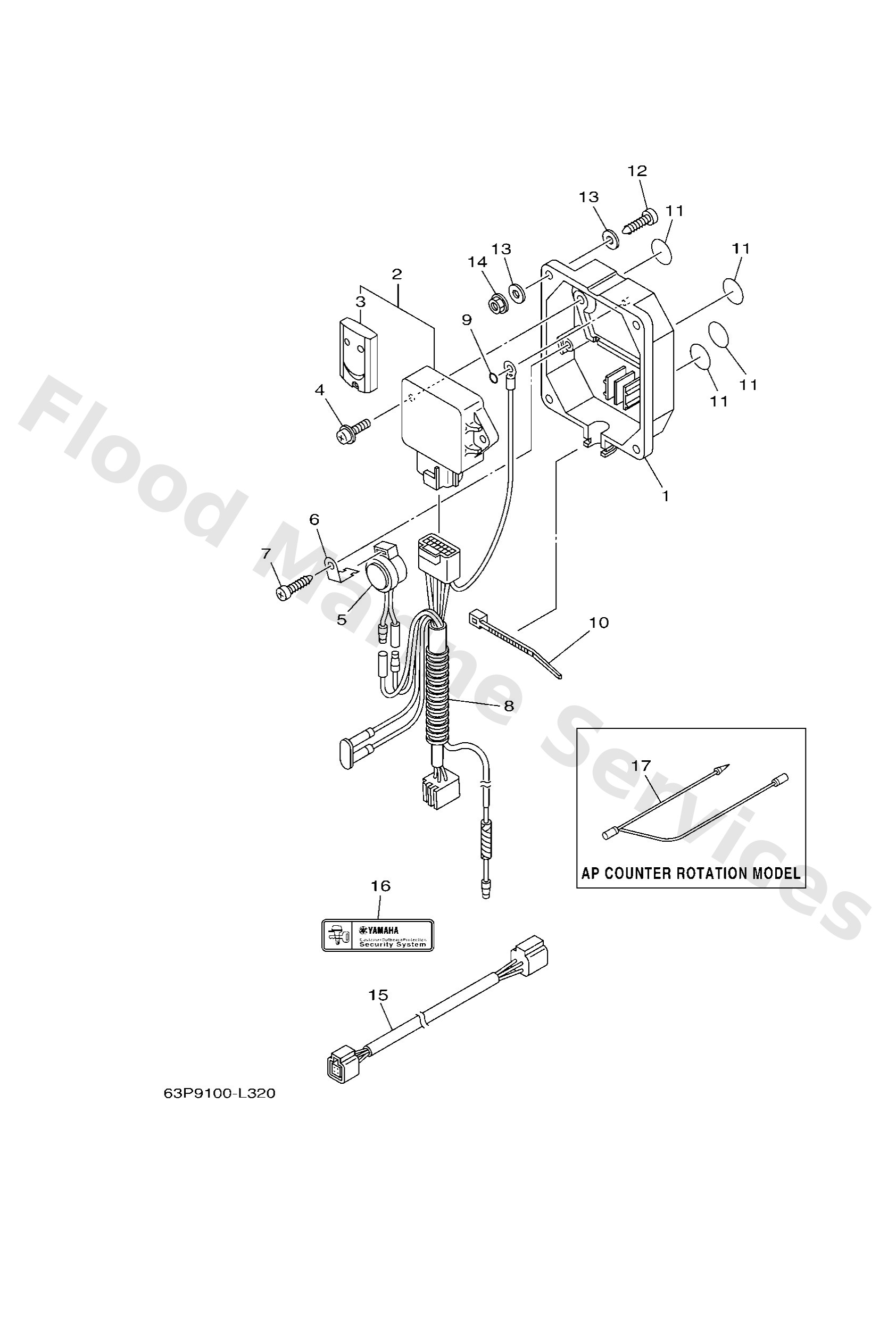

Diagram: OPTIONAL PARTS 1

Diagram

Parts List

6Y88626700
Case Complete 1
Diagram Reference: 1
Get Part
6Y88626003
Remote control unit assembly
Diagram Reference: 2
Get Part
6AA8626101
Xmtr. comp.
Diagram Reference: 3
Get Part
9798006216
Screw, With Washer
Diagram Reference: 4
Get Part
6X48338300
Buzzer
Diagram Reference: 5
Get Part
6X48338600
Stay, Buzzer
Diagram Reference: 6
Get Part
9778060620
Screw, Tapping
Diagram Reference: 7
Get Part
6Y88250910
Wire, Sub Lead
Diagram Reference: 8
Get Part
9321004279
O-Ring
Diagram Reference: 9
Get Part
9046511M10
Clamp
Diagram Reference: 10
Get Part
6Y88454G00
Patch 1
Diagram Reference: 11
Get Part
9788006035 (UR)
Screw, Pan Head
Diagram Reference: 12
Get Part
9016706M00 (UR)
Screw, Tapping
Diagram Reference: 12
Get Part
9020106M30
Washer, Plate
Diagram Reference: 13
Get Part
9578006300
34
Diagram Reference: 14
Get Part
6Y88252111
2Ft Pigtail Bus
Diagram Reference: 15
Get Part
6Y84827700
34
Diagram Reference: 16
Get Part
6H58131500 (AP)
34
Diagram Reference: 17
