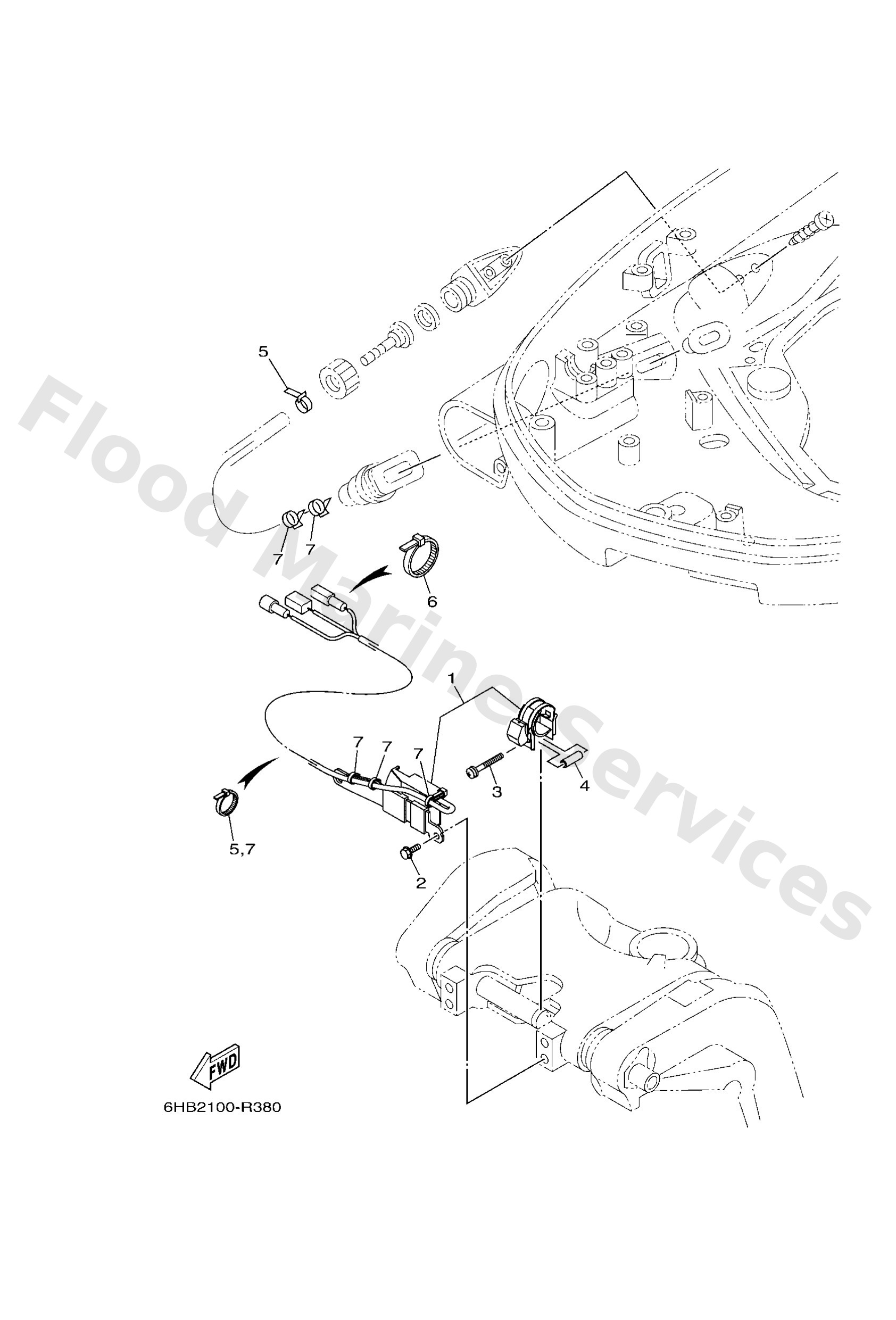

Diagram: OPTIONAL PARTS 2

Diagram

Parts List

63P825E001
Tilt Limit Switch Assy
Diagram Reference: 1
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Get Part
9015905059
Screw, With Washer
Diagram Reference: 3
Get Part
9038705004
Collar
Diagram Reference: 4
Get Part
9046511M10
Clamp
Diagram Reference: 5
Get Part
9046513M18
Clamp
Diagram Reference: 6
Get Part
