Yamaha Outboard Parts - OPTIONAL PARTS 5 - F350NSA2 (2024)

9360816M16

Pin, dowel(6t4)

Diagram Reference: 1

Get Part

6KA4521400

Cover, water inlet 1

Diagram Reference: 2

Get Part

6KA4521500

Cover, water inlet 2

Diagram Reference: 3

Get Part

9011005039

Bolt, hexagon socket head

Diagram Reference: 4

Get Part

6CE4522400

Cover, water inlet 3

Diagram Reference: 5

Get Part

6CE4522500

Cover, water inlet 4

Diagram Reference: 6

Get Part

9018505002

Nut nylon (sus)(ex4)

Diagram Reference: 7

Get Part

6KA4525400

Cover, outlet 1

Diagram Reference: 9

Get Part

6KA4525500

Cover, outlet 2

Diagram Reference: 10

Get Part

9138005020

Bolt,socket

Diagram Reference: 12

Get Part

6CE4537300

Anode

Diagram Reference: 13

Get Part

9010510M00

Bolt, hexagon (663)

Diagram Reference: 14

Get Part

69J4598700

Spacer 1

Diagram Reference: 15

Get Part

6884599701

Spacer 2

Diagram Reference: 16

Get Part

9299018200

Washer (6e5)

Diagram Reference: 17

Get Part

9017118M04

Nut, castle (6e5)

Diagram Reference: 18

Get Part

9149040030

Pin, cotter (663)

Diagram Reference: 19

Get Part

6CE4593020 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-3/4 x13-t)

Diagram Reference: 20

Get Part

6CE45D7020 (UR SDS 3 BLADE)

Propeller (3X15-3/4"X14"-T)

Diagram Reference: 20

Get Part

6CE4597620 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-3/4 x15-t)

Diagram Reference: 20

Get Part

6CE4593820 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-1/2 x16 -t)

Diagram Reference: 20

Get Part

6CE4597820 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-1/2 x 17-t)

Diagram Reference: 20

Get Part

6CE4593420 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-1/4 x18 -t)

Diagram Reference: 20

Get Part

6CE4597020 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-1/4 x19-t)

Diagram Reference: 20

Get Part

6CE4593220 (UR SDS 3 BLADE)

Sws2 w/sds (3x15 x20-t)

Diagram Reference: 20

Get Part

6CE4597220 (UR SDS 3 BLADE)

Sws2 w/sds (3x15 x21-t)

Diagram Reference: 20

Get Part

6CE4593620 (UR SDS 3 BLADE)

Sws2 w/sds (3x14-3/4 x22 -t)

Diagram Reference: 20

Get Part

6CE4597420 (UR SDS 3 BLADE)

Sws2 w/sds (3x14-3/4 x23-t)

Diagram Reference: 20

Get Part

6CE45D7220 (UR SDS 3 BLADE)

Propeller (3X13-3/4"X24"-T)

Diagram Reference: 20

Get Part

6CE45D7420 (UR SDS 3 BLADE)

Propeller (3X13-3/4"X25"-T)

Diagram Reference: 20

Get Part

6KA4597000 (UR SDS 3 BLADE HP)

Propeller (3X15-1/4"X18"-T)

Diagram Reference: 20

Get Part

6KA4597200 (UR SDS 3 BLADE HP)

Propeller (ss 3x15-1/4 x19 -t)

Diagram Reference: 20

Get Part

6KA4597400 (UR SDS 3 BLADE HP)

Propeller (ss 3x15 x20 -t)

Diagram Reference: 20

Get Part

6KA4597600 (UR SDS 3 BLADE HP)

Propeller (ss 3x15 x21 -t)

Diagram Reference: 20

Get Part

6CE45C8110

Damper rubber, propeller 1

Diagram Reference: 21

Get Part

6CE45B7020 (UR SDS 4 BLADE HS)

Sws hs4 sds (ss 4x15"x21"-t)

Diagram Reference: 22

Get Part

6CE45B7220 (UR SDS 4 BLADE HS)

Sws hs4 sds (ss 4x15"x22"-t)

Diagram Reference: 22

Get Part

6CE45B7420 (UR SDS 4 BLADE HS)

Sws hs4 sds (ss 4x15"x23"-t)

Diagram Reference: 22

Get Part

6ML45B7600 (UR SDS 4 BLADE)

-

Diagram Reference: 22

Get Part

6ML45B7800 (UR SDS 4 BLADE)

-

Diagram Reference: 22

Get Part

6ML45B8000 (UR SDS 4 BLADE)

-

Diagram Reference: 22

Get Part

6ML45B8200 (UR SDS 4 BLADE)

-

Diagram Reference: 22

Get Part

6ML45B8400 (UR SDS 4 BLADE)

-

Diagram Reference: 22

Get Part

6ML45B8600 (UR SDS 4 BLADE)

-

Diagram Reference: 22

Get Part

6CF4593020 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-3/4 x13-tl)

Diagram Reference: 24

Get Part

6CF45D7020 (UR SDS 3 BLADE)

Propeller (3X15-3/4"X14"-Tl)

Diagram Reference: 24

Get Part

6CF4597620 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-3/4 x15-tl)

Diagram Reference: 24

Get Part

6CF4593820 (UR SDS 3 BLADE)

-

Diagram Reference: 24

Get Part

6CF4597820 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-1/2 x17-tl)

Diagram Reference: 24

Get Part

6CF4593420 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-1/4 x18 -tl)

Diagram Reference: 24

Get Part

6CF4597020 (UR SDS 3 BLADE)

Sws2 w/sds (3x15-1/4 x19-tl)

Diagram Reference: 24

Get Part

6CF4593220 (UR SDS 3 BLADE)

Sws2 w/sds (3x15 x20-tl)

Diagram Reference: 24

Get Part

6CF4597220 (UR SDS 3 BLADE)

Sws2 w/sds (3x15 x21-tl)

Diagram Reference: 24

Get Part

6CF4593620 (UR SDS 3 BLADE)

Sws2 w/sds (3x14-3/4 x22 -tl)

Diagram Reference: 24

Get Part

6CF4597420 (UR SDS 3 BLADE)

Sws2 w/sds (3x14-3/4 x23-tl)

Diagram Reference: 24

Get Part

6KB4597000 (UR SDS 3 BLADE HP)

Propeller (3X15-1/4"X18"-Tl)

Diagram Reference: 24

Get Part

6KB4597200 (UR SDS 3 BLADE HP)

Propeller (3X15-1/4"X19"-Tl)

Diagram Reference: 24

Get Part

6KB4597400 (UR SDS 3 BLADE HP)

Propeller (3X15"X20"-Tl)

Diagram Reference: 24

Get Part

6KB4597600 (UR SDS 3 BLADE HP)

Propeller (ss 3x15 x21 -tl)

Diagram Reference: 24

Get Part

6CF45B7020 (UR SDS 4 BLADE HS)

Sws hs4 sds (ss 4x15"x21"-tl)

Diagram Reference: 26

Get Part

6CF45B7220 (UR SDS 4 BLADE HS)

Sws hs4 sds (ss 4x15"x22"-tl)

Diagram Reference: 26

Get Part

6CF45B7420 (UR SDS 4 BLADE HS)

Sws hs4 sds (ss 4x15"x23"-tl)

Diagram Reference: 26

Get Part

6MM45B7600 (UR SDS 4 BLADE)

-

Diagram Reference: 26

Get Part

6MM45B7800 (UR SDS 4 BLADE)

-

Diagram Reference: 26

Get Part

6MM45B8000 (UR SDS 4 BLADE)

-

Diagram Reference: 26

Get Part

6MM45B8200 (UR SDS 4 BLADE)

-

Diagram Reference: 26

Get Part

6MM45B8400 (UR SDS 4 BLADE)

-

Diagram Reference: 26

Get Part

6MM45B8600 (UR SDS 4 BLADE)

-

Diagram Reference: 26

Get Part

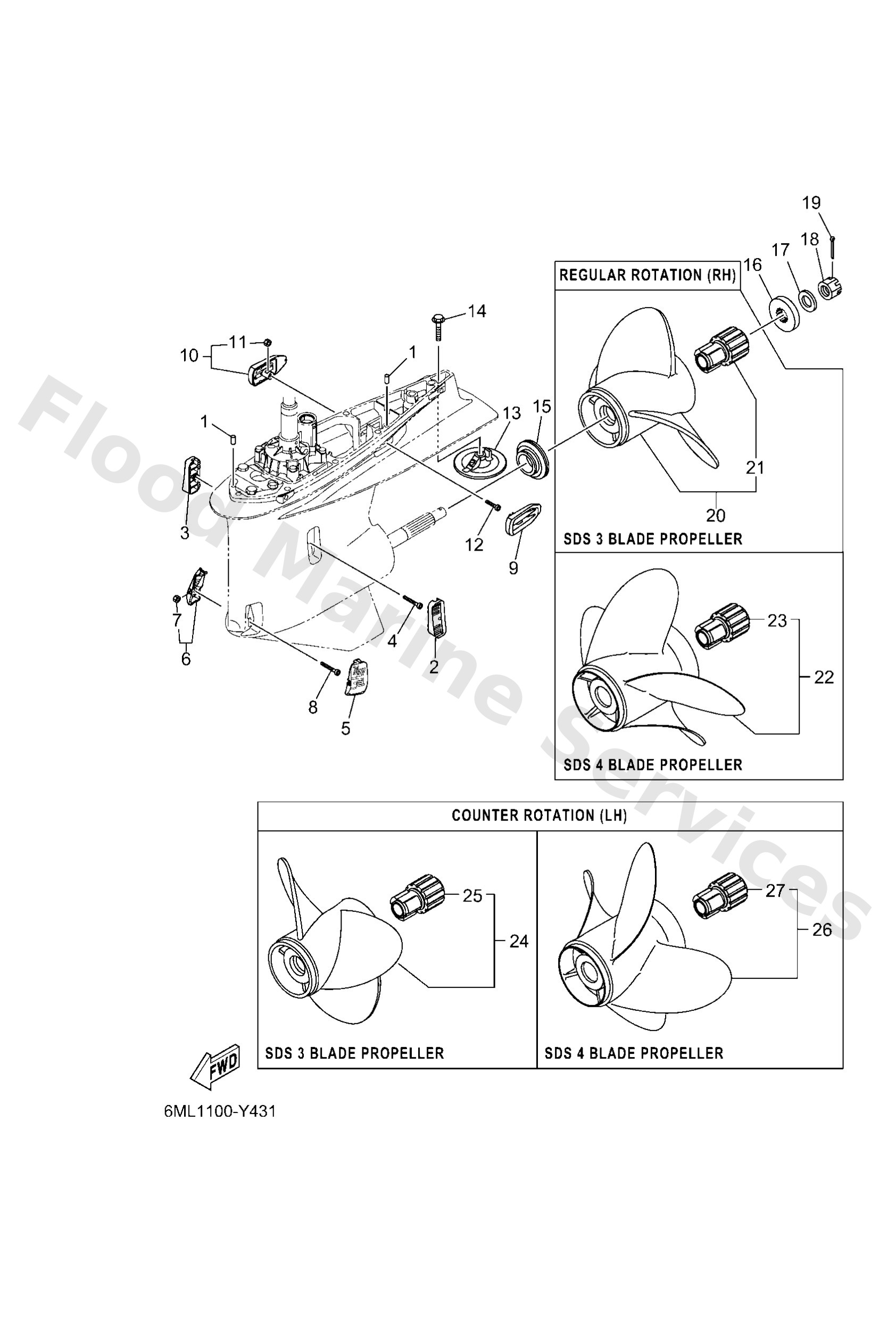

Diagram: OPTIONAL PARTS 5

Parts List
