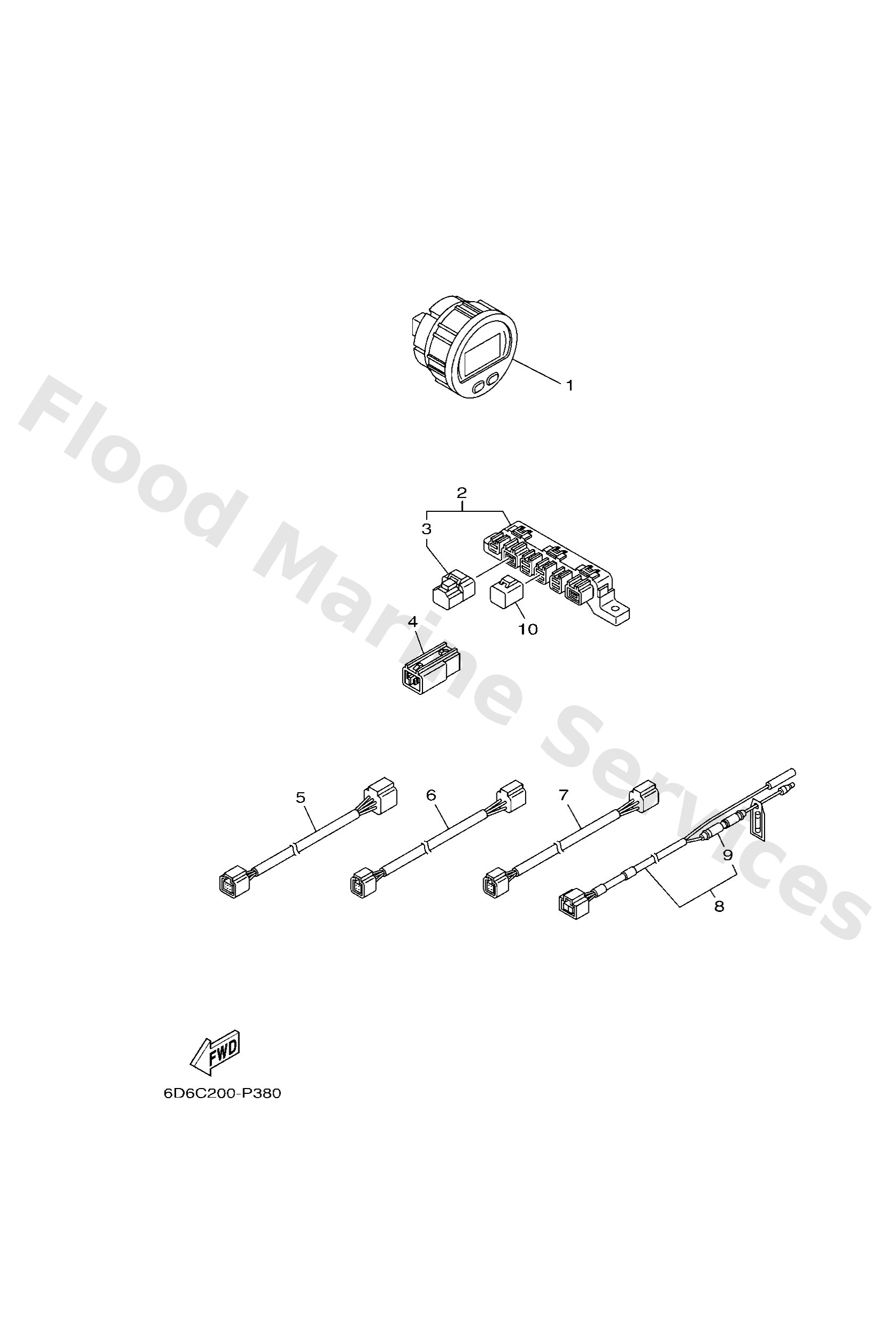

Diagram: OPTIONAL PARTS 7

Diagram

Parts List

6Y88350T20 (FOR RUS)
Tachometer, rd
Diagram Reference: 1
Get Part
6Y88192001 (FOR RUS)
Multi-hub
Diagram Reference: 2
Get Part
6Y88537101
End of line resister
Diagram Reference: 3
Get Part
6Y88192011 (FOR RUS)
Single-hub
Diagram Reference: 4
Get Part
6Y88255311 (FOR RUS)
Main bus wire 4.6m (15ft)
Diagram Reference: 5
Get Part
6Y88252111 (FOR RUS)
Pigtail bus wire 0.6m-2ft
Diagram Reference: 6
Get Part
6Y88252141 (FOR RUS)
9ft pigtail bus
Diagram Reference: 7
Get Part
6Y88355301 (FOR RUS)
8ft power wire
Diagram Reference: 8
Get Part
6G18215100
Fuse (10a)
Diagram Reference: 9
Get Part
6Y88258211 (FOR RUS)
White cap 1 (4pin)
Diagram Reference: 10
