4ACMH (1993)
Optional Parts 1

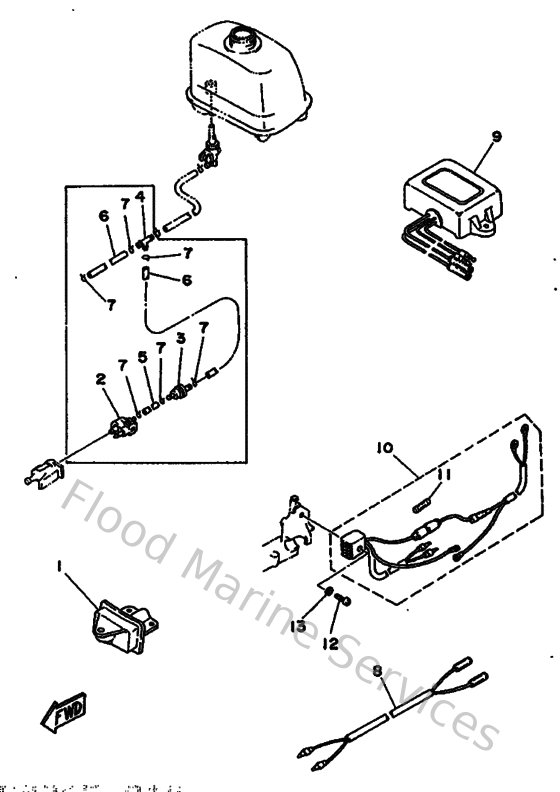

Diagram: Optional Parts 1
Parts List
Reference
Description
Price
2
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
3
646242510200
Strainer 1
Loading…
↗
4
688243780000
Pipe, joint
Loading…
↗
5
904450906800
Hose (l420)
Loading…
↗
6
904450922000
Hose (l1500)
Loading…
↗
7
904670800400
Clip, pipe 6162435600
Loading…
↗
8
6E0835532000
Wire, lead
Loading…
↗
9
663819101000
Voltage Regulator assembly
Loading…
↗
10
676819700000
Rectifier assembly
Loading…
↗
11
682821510000
Fuse
Loading…
↗
12
985030502500
Screw, panhead (a93)
Loading…
↗
13
929900560000
Washer, plain (646)
Loading…
↗
