80AETOL (1985)
Optional Parts 1

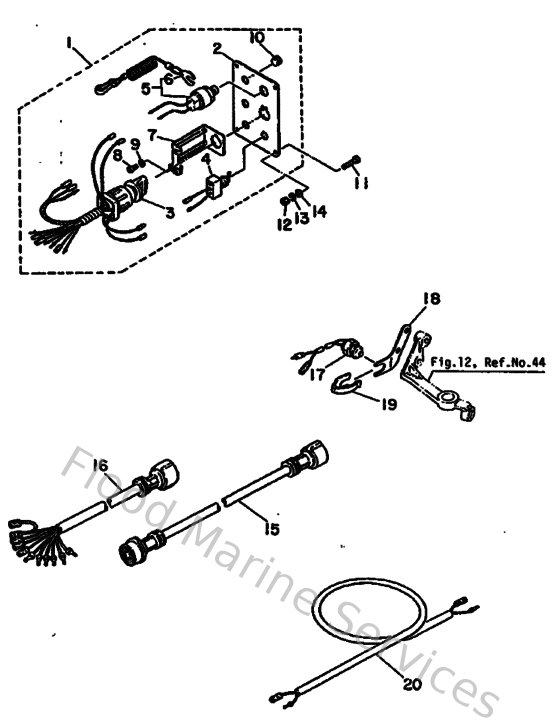

Diagram: Optional Parts 1
Parts List
Reference
Description
Price
1
688825701300
Panel switch assembly
Loading…
↗
2
688825711100
Switch panel
Loading…
↗
3
688825101100
Main switch assembly
Loading…
↗
4
688825740000
Switch, choke
Loading…
↗
5
688825750200
Engine stop switch assembly
Loading…
↗
6
682825560000
Lanyard, stop switch
Loading…
↗
7
663825810100
Stay, cord clamp
Loading…
↗
8
983030400800
Screw, pan head (713)
Loading…
↗
9
929010410000
Ybs67-4 washer, spring
Loading…
↗
10
903381219200
Plug(2gu)
Loading…
↗
11
989030502500
Screw, bind
Loading…
↗
12
953030560000
Nut, hexagon (663)
Loading…
↗
13
929030510000
Ybs67-5 washer, spring
Loading…
↗
14
929030560000
Washer, plain (646)
Loading…
↗
15
688825863100
Extension, wire harness
Loading…
↗
16
688825862100
Extension, wire harness
Loading…
↗
17
688825401100
Neutral switch assembly
Loading…
↗
18
663825540100
Stay, neutral switch
Loading…
↗
19
663825550100
Plate
Loading…
↗
20
688825411000
Wire, lead
Loading…
↗
