8CEM (1992)
Optional Parts 1

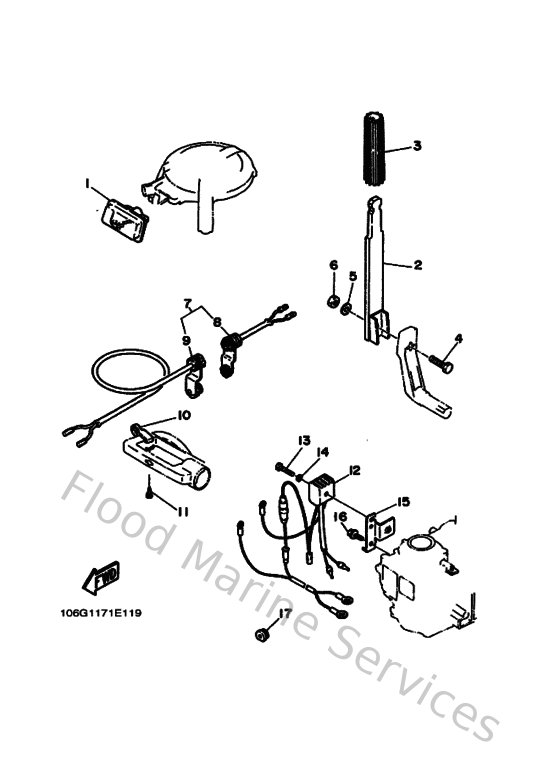

Diagram: Optional Parts 1
Parts List
Reference
Description
Price
1
6G11575880EK
Guide, wire
Loading…
↗
3
646421190200
Grip, steering handle
Loading…
↗
4
970170602500
Bolt, hexagon
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
953800660000
Nut(661)
Loading…
↗
7
682843800000
2p concent assembly
Loading…
↗
8
682843810000
2p concent 1
Loading…
↗
9
682843820000
2p concent 2
Loading…
↗
10
682843870000
Holder
Loading…
↗
11
977805051200
Screw, tapping(61a)
Loading…
↗
12
6G1819700000
Rectifier assembly
Loading…
↗
14
929900560000
Washer, plain (646)
Loading…
↗
15
6G1819750000
Plate, rectifier fitting
Loading…
↗
16
9010506M2300
Bolt (6g1)
Loading…
↗
17
6G1427241000
Grommet
Loading…
↗
