E8DMH (1999)
Optional Parts 1

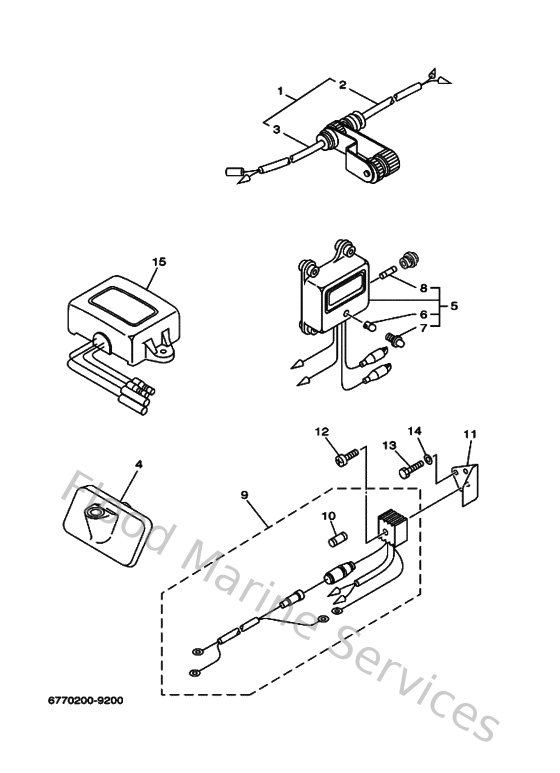

Diagram: Optional Parts 1
Parts List
Reference
Description
Price
1
682843800000
2p concent assembly
Loading…
↗
2
682843810000
2p concent 1
Loading…
↗
3
682843820000
2p concent 2
Loading…
↗
5
648819704100
Rectifier assembly (80w)
Loading…
↗
6
648819774000
Bulb, Pilot Light
Loading…
↗
8
648821514100
Fuse (10a)
Loading…
↗
9
676819700100
Rectifier assembly
Loading…
↗
10
663821510000
Fuse
Loading…
↗
11
677819750000
Plate, Rectifier Fitting
Loading…
↗
12
985800552500
Screw, panhead (a93)
Loading…
↗
13
970130601000
Bolt(63v)
Loading…
↗
14
929030660000
Washer, plain (646)
Loading…
↗
15
663819101000
Voltage Regulator assembly
Loading…
↗
