75AE (1992)
Optional Parts 4

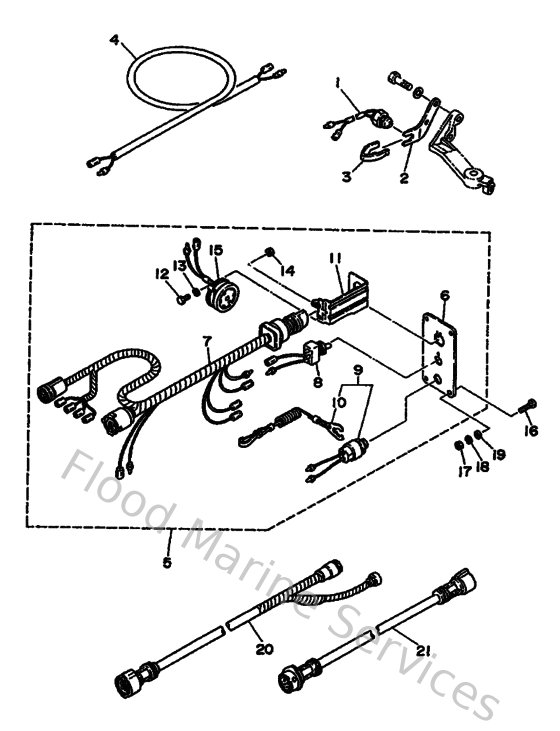

Diagram: Optional Parts 4
Parts List
Reference
Description
Price
1
688825401100
Neutral switch assembly
Loading…
↗
2
663825540000
Stay, neutral switch
Loading…
↗
3
663825550100
Plate
Loading…
↗
4
688825411000
Wire, lead
Loading…
↗
5
704825701200
Panel switch assembly
Loading…
↗
6
689825710200
Panel, Switch
Loading…
↗
7
704825100200
Main switch assembly
Loading…
↗
8
703825740000
Switch, choke
Loading…
↗
9
688825750100
Engine stop switch assembly
Loading…
↗
10
682825560000
Lanyard, stop switch
Loading…
↗
11
704825810000
Stay, Cord Clamp
Loading…
↗
12
973030601200
Bolt(gh1)
Loading…
↗
13
929900510000
Ybs67-5 washer, spring
Loading…
↗
14
953030570000
Nut (656)
Loading…
↗
15
688833831100
Buzzer
Loading…
↗
16
9014905M0500
Screw(6k0)
Loading…
↗
17
953800560000
Nut, hexagon (663)
Loading…
↗
19
929900560000
Washer, plain (646)
Loading…
↗
20
688825865000
Extension, wire harness
Loading…
↗
21
688825861100
Extension, wire harness
Loading…
↗
