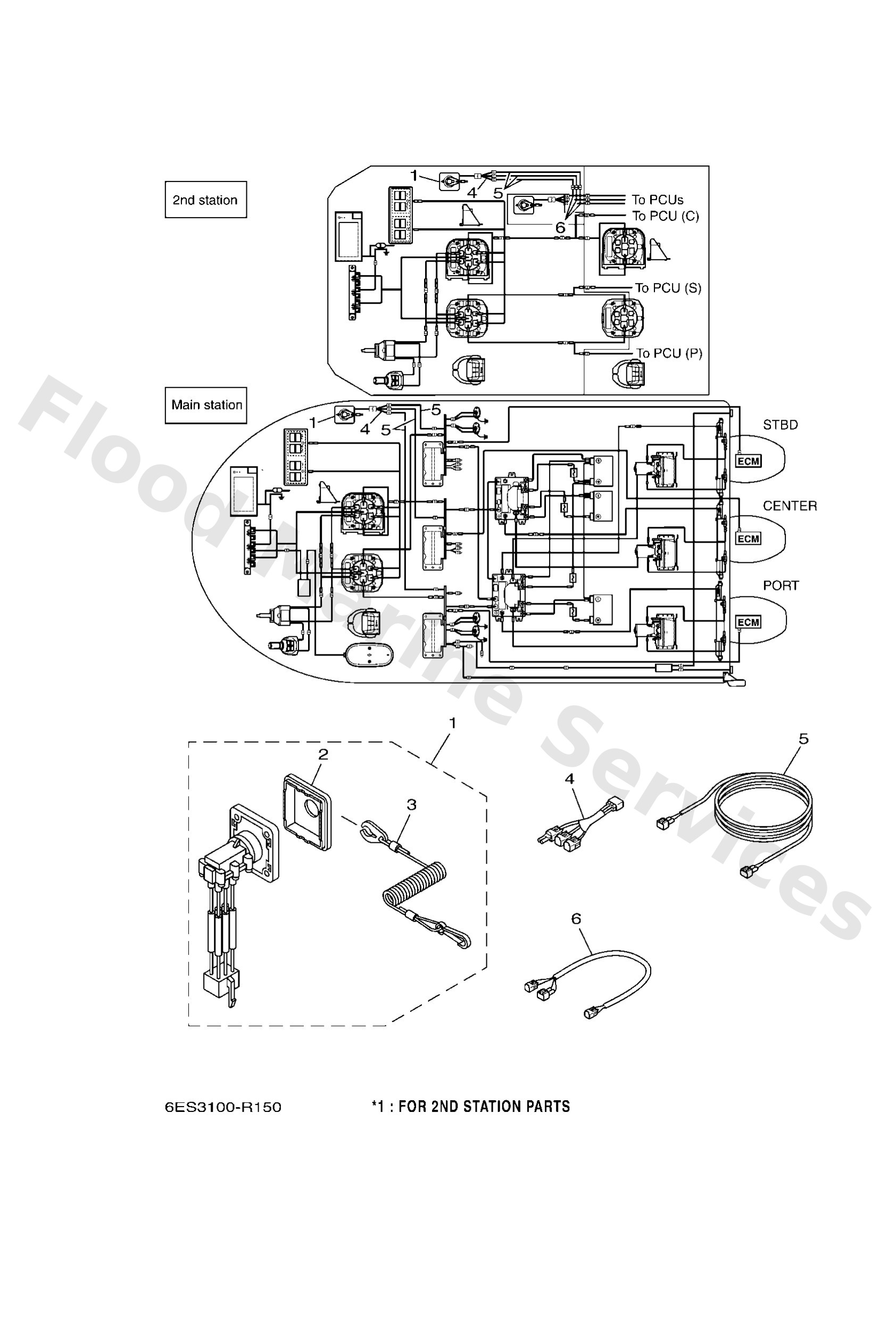

Diagram: PANEL SWITCH (TRIPLE)

Diagram

Parts List

6X68257090
Lanyard switch -2nd station
Diagram Reference: 1
Get Part
6X68257150
Panel, switch
Diagram Reference: 2
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 3
Get Part
6ES8258A31 (ASK TO MARINE DIV)
Lanyard Harness 6P
Diagram Reference: 4
Get Part
6ES8258A20 (ASK TO MARINE DIV)
Lanyard Harness 2P
Diagram Reference: 5
Get Part
6ES8258A70 (*1)
Lanyard Harness, 2Nd Station
Diagram Reference: 6
Get Part
