ME372STIP1 (2007)
POWER STEERING OIL PUMP

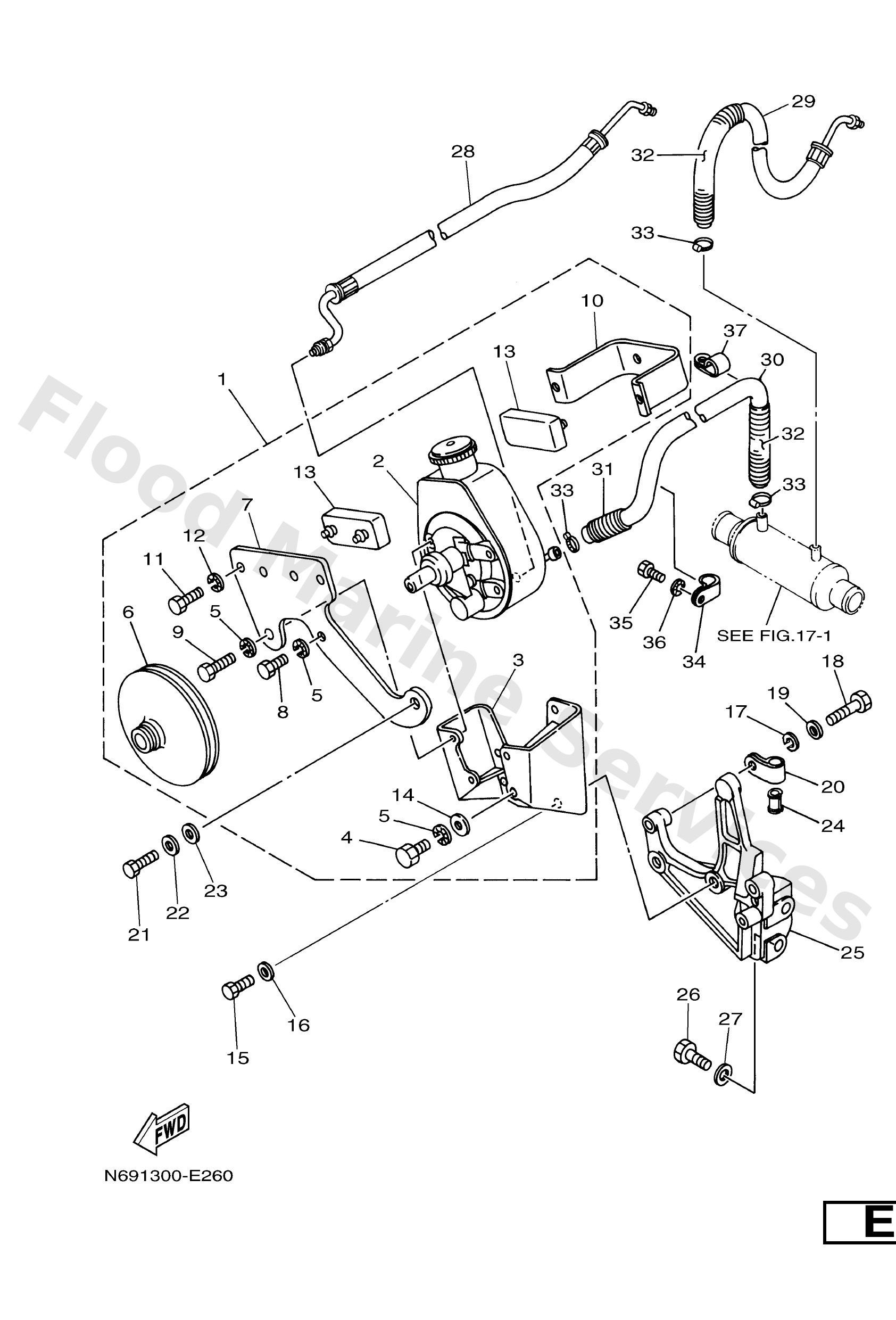

Diagram: POWER STEERING OIL PUMP
Parts List
Reference
Description
Price
1
6TC7610B01
Power steering pump sub assembly
Loading…
↗
2
6TA7611A00
Power steering pump assembly.
Loading…
↗
3
6TC7612J00
Brkt., p.s. pump 2
Loading…
↗
4
9010110321
Bolt, hexagon (705)
Loading…
↗
5
9290710700
Washer(6ta)
Loading…
↗
6
6TA7618700
Pulley
Loading…
↗
7
6TC7612K00
Stay, p.s. pump 1
Loading…
↗
8
9010110327
Bolt, hexagon (705)
Loading…
↗
9
9010110319
Bolt, hexagon (705)
Loading…
↗
10
6TC7612L00
Stay, p.s. pump 2
Loading…
↗
11
9732708020
Bolt, hexagon
Loading…
↗
12
9290708700
Washer(6ta)
Loading…
↗
13
6TC7616800
Plate
Loading…
↗
14
9290710600
Washer(6ta)
Loading…
↗
15
9702712025
Bolt, hexagon
Loading…
↗
16
90201122H1
Washer, plate (35t)
Loading…
↗
17
9290708200
Washer(6tc)
Loading…
↗
18
9702708045
Bolt(3hn)
Loading…
↗
19
9290708600
Washer(6ta)
Loading…
↗
20
6TC2436900
Clamp, oil pipe
Loading…
↗
21
9702708020
Bolt, hexagon
Loading…
↗
23
9020108M23
Washer, plate (6e5)
Loading…
↗
24
6TC7751500
Bush, rubber 1
Loading…
↗
25
6TC7612H01
Brkt., p.s. pump 1
Loading…
↗
26
9702712030
Bolt
Loading…
↗
28
6TC7617E00
Hose, power steering
Loading…
↗
29
6TA7617F00
Hose, power steering
Loading…
↗
30
6TC7617G00
Hose, power steering
Loading…
↗
31
9044624M44
Hose(6tc)
Loading…
↗
32
9044524M00
Hose (l165)
Loading…
↗
33
9046016M18
Clamp, hose(6ta)
Loading…
↗
34
9046108072
Clamp (727)
Loading…
↗
35
9702706010
Bolt(3jp)
Loading…
↗
36
9290706600
Washer(6ta)
Loading…
↗
