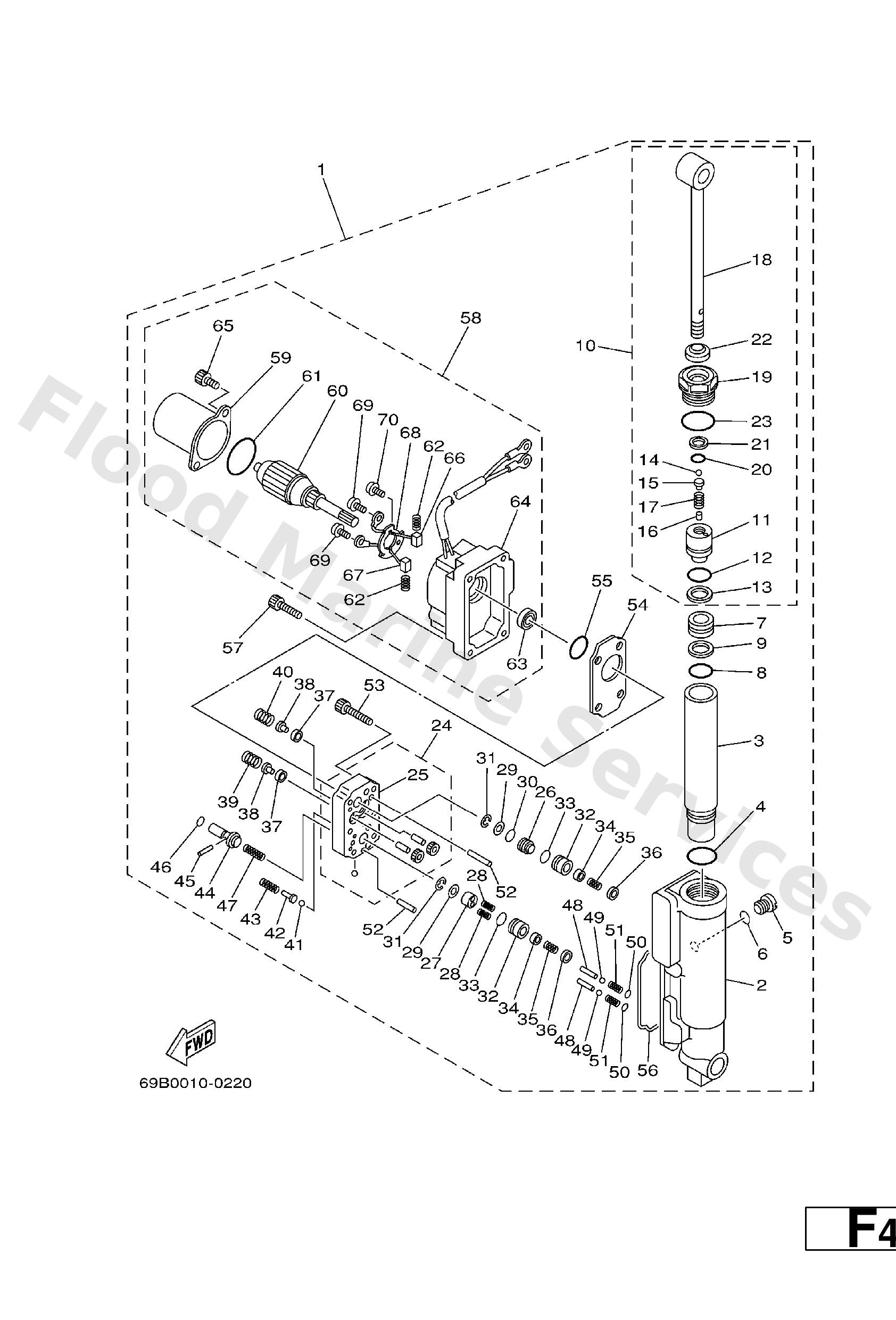

Diagram: POWER TILT ASSY

Diagram

Parts List

69G−43840−00−4D
Power tilt assembly
Diagram Reference: 1
Get Part
69A−4380K−00
Cylinder, tilt sub assembly
Diagram Reference: 2
Get Part
69A−22471−00
Case, cylinder
Diagram Reference: 3
Get Part
93210−27666
O-ring(47x)
Diagram Reference: 4
Get Part
6H1−4388E−11
Plug, tapper screw
Diagram Reference: 5
Get Part
93210−07003
O-ring (11m)
Diagram Reference: 6
Get Part
69A−43814−00
Piston, free
Diagram Reference: 7
Get Part
93210−21276
O-ring
Diagram Reference: 8
Get Part
69A−43872−00
Ring, back up
Diagram Reference: 9
Get Part
69A−43810−00
Piston sub assembly
Diagram Reference: 10
Get Part
69A−4380D−00
Piston comp.
Diagram Reference: 11
Get Part
93505−32038
Ball(7fk)
Diagram Reference: 14
Get Part
65W−4386A−00
Pin, absorber valve
Diagram Reference: 15
Get Part
93604−06136
Pin, dowel
Diagram Reference: 16
Get Part
69A−43857−00
Spring, absorber valve
Diagram Reference: 17
Get Part
69A−43801−00
Rod
Diagram Reference: 18
Get Part
69A−43811−00
Screw, cylinder end
Diagram Reference: 19
Get Part
6H1−43866−00
O-ring
Diagram Reference: 20
Get Part
69A−43871−00
Ring, back up
Diagram Reference: 21
Get Part
69A−43812−00
Seal, dust
Diagram Reference: 22
Get Part
69A−43869−00
O-ring
Diagram Reference: 23
Get Part
69A−43830−00
Gear pump assembly
Diagram Reference: 24
Get Part
69A−4380C−00
Gear housing assembly
Diagram Reference: 25
Get Part
69A−43841−00
Piston, shuttle
Diagram Reference: 26
Get Part
69A−4384M−00
Piston, shuttle 2
Diagram Reference: 27
Get Part
62Y−43894−00
Spring, shuttle return
Diagram Reference: 28
Get Part
69A−4384F−00
Seal, main valve
Diagram Reference: 29
Get Part
6H1−43883−00
O-ring
Diagram Reference: 30
Get Part
99001−03600
Circlip(6l5)
Diagram Reference: 31
Get Part
69A−4382G−00
Valve Seat
Diagram Reference: 32
Get Part
93210−12N52
O-ring
Diagram Reference: 33
Get Part
6T4−43808−00
Seat valve comp. 1
Diagram Reference: 34
Get Part
6T4−43853−00
Spring, main valve
Diagram Reference: 35
Get Part
6H1−43816−00
Filter 1
Diagram Reference: 36
Get Part
6H1−4384G−11
Seal, relief valve
Diagram Reference: 37
Get Part
6H1−43844−10
Pin, valve support
Diagram Reference: 38
Get Part
69A−43855−00
Spring, up relief
Diagram Reference: 39
Get Part
6H1−43856−10
Spring, down relief
Diagram Reference: 40
Get Part
93501−08001
Ball
Diagram Reference: 41
Get Part
69A−4386A−00
Pin, absorber valve
Diagram Reference: 42
Get Part
69A−43824−00
Spring, down relief 2
Diagram Reference: 43
Get Part
69A−43848−00
Rod, manual release
Diagram Reference: 44
Get Part
93602−15250
Pin, dowel
Diagram Reference: 45
Get Part
93210−06001
O-ring (26h)
Diagram Reference: 46
Get Part
69A−43854−00
Spring, manual release
Diagram Reference: 47
Get Part
69A−4381G−00
Pin 1
Diagram Reference: 48
Get Part
69A−4384H−00
Spring
Diagram Reference: 51
Get Part
93606−14081
Pin,dowel(296)
Diagram Reference: 52
Get Part
91317−05025
Bolt, socket
Diagram Reference: 53
Get Part
69A−43816−00
Filter 1
Diagram Reference: 54
Get Part
N35−43862−10
O-ring
Diagram Reference: 55
Get Part
69A−23129−00
Gasket, drain plug
Diagram Reference: 56
Get Part
69A−43878−00
Bolt, socket
Diagram Reference: 57
Get Part
69G−43880−00
Motor assembly
Diagram Reference: 58
Get Part
65W−43804−00
Stator assembly
Diagram Reference: 59
Get Part
65W−43805−00
Armature assembly
Diagram Reference: 60
Get Part
65W−43869−00
O-ring
Diagram Reference: 61
Get Part
65W−4386K−00
Spring, brush
Diagram Reference: 62
Get Part
65W−43882−00
Oil seal
Diagram Reference: 63
Get Part
69G−43881−00
Frame, End
Diagram Reference: 64
Get Part
65W−43887−00
Bolt, screw
Diagram Reference: 65
Get Part
65W−43892−00
Brush 2
Diagram Reference: 66
Get Part
65W−43891−00
Brush 1
Diagram Reference: 67
Get Part
65W−4380F−00
Plate, brush holder
Diagram Reference: 68
Get Part
65W−43879−00
Screw, with washer
Diagram Reference: 69
Get Part
65W−4388E−00
Bolt
Diagram Reference: 70
Get Part
