INTHDP/HDL (2014)
POWER TILT BODY ASSY 2

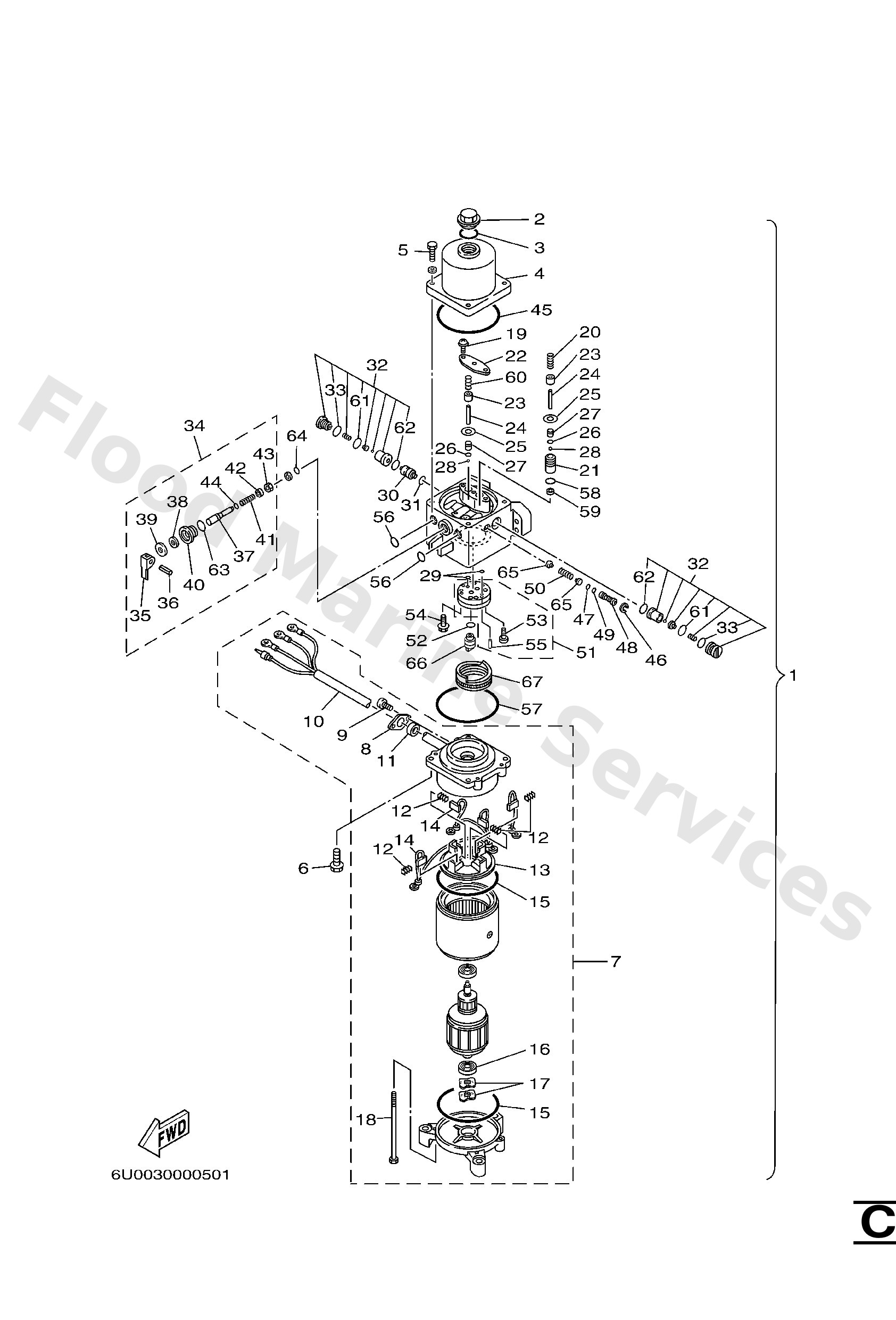

Diagram: POWER TILT BODY ASSY 2
Parts List
Reference
Description
Price
2
6T44382900
Plug, reservoir
Loading…
↗
3
9321021276
O-ring
Loading…
↗
4
N354382800
Body, Reservoir
Loading…
↗
5
6T44388600
Bolt
Loading…
↗
6
9759006420
6- 6
Loading…
↗
7
6T44388001
12V
Motor assembly
Loading…
↗
8
6T44386J00
Washer, special
Loading…
↗
9
9858005008
Screw, pan head (7g3)
Loading…
↗
10
6T44380700
12V
Wire Sub assembly
Loading…
↗
11
6T44388500
Grommet
Loading…
↗
12
6T44386K00
Spring, brush
Loading…
↗
13
6T44380600
Brush holder assembly
Loading…
↗
14
6T44389100
12V
Brush 1
Loading…
↗
15
9321081782
O-ring(6t4)
Loading…
↗
16
9330060820
Bearing(6t4)
Loading…
↗
17
9020614086
Washer, wave(6t4)
Loading…
↗
18
6T44388700
Bolt, through
Loading…
↗
19
9760705210
Screw, With Washer
Loading…
↗
20
6T44385500
Spring, up relief
Loading…
↗
21
6T44389500
Seat, relief valve
Loading…
↗
22
6T44382K00
Cap, relief valve
Loading…
↗
23
6T44384400
Pin, valve support
Loading…
↗
24
9160910014
Pin, spring(61a)
Loading…
↗
25
6T44389300
Washer
Loading…
↗
26
6T44384G00
Seal, relief valve
Loading…
↗
27
6T44385100
Seat, relief valve
Loading…
↗
28
9350108001
Ball
Loading…
↗
29
93210064A5
O-ring(61a)
Loading…
↗
30
6T44384101
Piston, Shuttle
Loading…
↗
31
9321009165
O-ring
Loading…
↗
32
6T44380203
Valve sub assembly
Loading…
↗
34
6T44386000
Manual valve sub-assembly
Loading…
↗
35
6T44386E00
Lever 1
Loading…
↗
36
9169040014
Pin, spring (6f2)
Loading…
↗
37
6T44384800
Rod, Manual Release
Loading…
↗
38
6T44386H00
Washer
Loading…
↗
39
6T44387H00
Washer
Loading…
↗
40
6T44384500
Screw, Manual Release
Loading…
↗
41
6T44385400
Spring, Manual Release
Loading…
↗
42
9290705600
Washer(1rw)
Loading…
↗
43
9530704600
Nut(6ta)
Loading…
↗
45
9321082491
O-ring (5r0)
Loading…
↗
46
6T44387600
Ring, snap
Loading…
↗
47
9321007003
O-ring (11m)
Loading…
↗
48
6T44384900
Pin, valve support
Loading…
↗
49
9321006001
O-ring (26h)
Loading…
↗
50
6T44385H00
Spring, seal
Loading…
↗
51
6T44383000
Gear pump assembly
Loading…
↗
53
9131805012
Bolt, socket
Loading…
↗
54
9760704230
Screw, pan head with washer
Loading…
↗
55
9160940025
Pin, spring (6g0)
Loading…
↗
57
6T44386900
O-ring
Loading…
↗
58
6H14389F00
O-Ring
Loading…
↗
59
6H14381600
Filter 1
Loading…
↗
60
6H14385610
Spring, down relief
Loading…
↗
62
9321012N52
O-ring
Loading…
↗
64
6H14384G11
Seal, relief valve
Loading…
↗
65
6H14384F10
Seal, main valve
Loading…
↗
66
6H14383100
Connector, shaft
Loading…
↗
67
6H14381700
Filter 2
Loading…
↗
