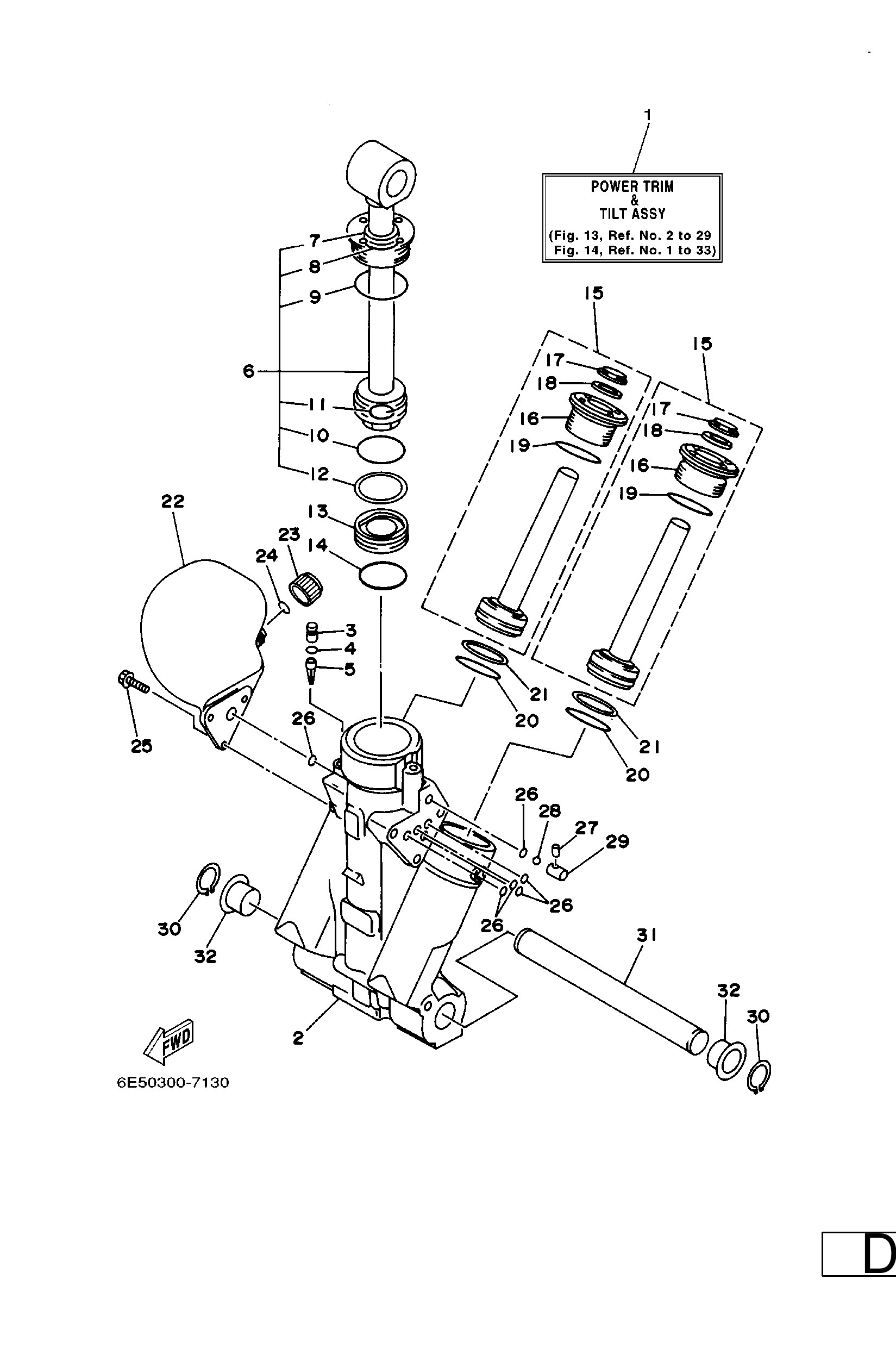

Diagram: POWER TRIM & TILT ASSY 1

Diagram

Parts List

64E4382500
14- 2
Diagram Reference: 2
Get Part
64E4388J00
Plug 2
Diagram Reference: 3
Get Part
9321010M74
O-ring
Diagram Reference: 4
Get Part
64E4381700
Filter 2
Diagram Reference: 5
Get Part
64E4381000
Tilt piston sub assembly
Diagram Reference: 6
Get Part
64E4389800
Seal, dust 2
Diagram Reference: 7
Get Part
64E4386700
O-ring 7
Diagram Reference: 8
Get Part
64E4386600
O-ring 6
Diagram Reference: 9
Get Part
6E54386200
O-ring 2
Diagram Reference: 10
Get Part
64E4388300
O-ring 10
Diagram Reference: 11
Get Part
6E54387200
Ring, back-up 2
Diagram Reference: 12
Get Part
6E54381402
Piston, free
Diagram Reference: 13
Get Part
64E4382100
Screw, trim cylinder end
Diagram Reference: 16
Get Part
64E4382200
Seal, trim dust
Diagram Reference: 17
Get Part
64E4384J00
Seal, trim down
Diagram Reference: 18
Get Part
6G54386400
O-ring 4
Diagram Reference: 19
Get Part
6E54386400
O-ring 4
Diagram Reference: 20
Get Part
6E54387401
Ring, back-up 4
Diagram Reference: 21
Get Part
64E4382800
Body, reservoir
Diagram Reference: 22
Get Part
64E4382900
Plug, reservoir
Diagram Reference: 23
Get Part
64E4389700
O-ring
Diagram Reference: 24
Get Part
64E4388E00
Bolt ,screw (l:14mm)
Diagram Reference: 25
Get Part
64E4386900
O-ring 9
Diagram Reference: 26
Get Part
64E4381G00
Pin 1
Diagram Reference: 27
Get Part
6E54385800
Ball 1
Diagram Reference: 28
Get Part
6E54382G00
Valve seat
Diagram Reference: 29
Get Part
9341022M11
Circlip(61u)
Diagram Reference: 30
Get Part
64E4381800
Lower shock mount pin set
Diagram Reference: 31
Get Part
9038622M98
Bush(61u)
Diagram Reference: 32
Get Part
