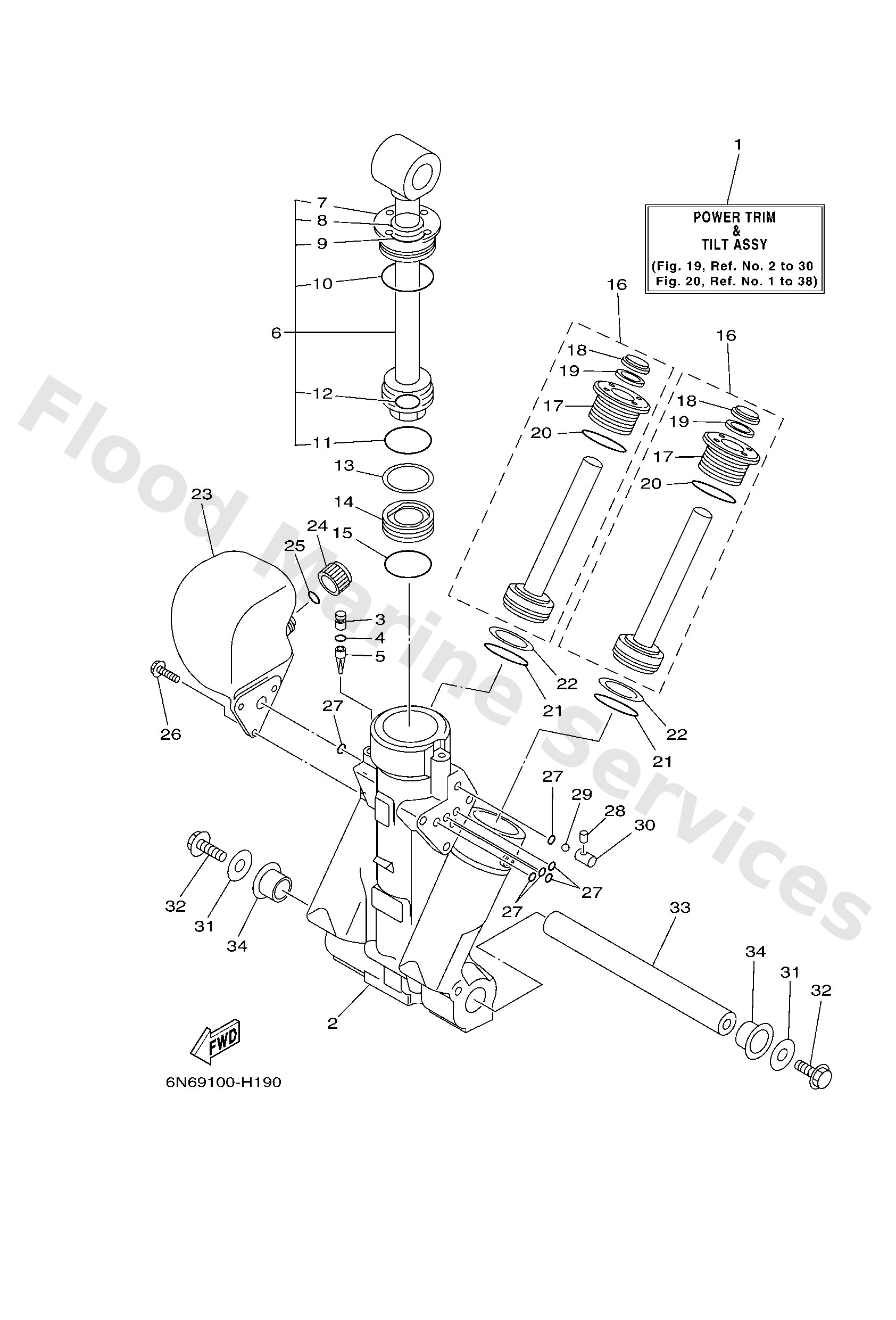

Diagram: POWER TRIM & TILT ASSY 1

Diagram

Parts List

64E4380006
Power trim & tilt assembly
Diagram Reference: 1
Get Part
64E4382503
Housing, trim & tilt
Diagram Reference: 2
Get Part
6AW4388J00
Plug 2
Diagram Reference: 3
Get Part
9321010M74
O-ring
Diagram Reference: 4
Get Part
64E4381700
Filter 2
Diagram Reference: 5
Get Part
64E4381002
Tilt piston sub assembly
Diagram Reference: 6
Get Part
64E4381102
Screw, cylinder end
Diagram Reference: 7
Get Part
64E4389800
Seal, dust 2
Diagram Reference: 8
Get Part
64E4386700
O-ring 7
Diagram Reference: 9
Get Part
64E4386600
O-ring 6
Diagram Reference: 10
Get Part
6E54386200
O-ring 2
Diagram Reference: 11
Get Part
64E4388300
O-ring 10
Diagram Reference: 12
Get Part
6E54387200
Ring, back-up 2
Diagram Reference: 13
Get Part
6E54381402
Piston, free
Diagram Reference: 14
Get Part
64E4382002
Trim piston sub assembly
Diagram Reference: 16
Get Part
64E4382102
Screw, trim cylinder end
Diagram Reference: 17
Get Part
64E4382200
Seal, trim dust
Diagram Reference: 18
Get Part
64E4384J00
Seal, trim down
Diagram Reference: 19
Get Part
6G54386400
O-ring 4
Diagram Reference: 20
Get Part
6E54386400
O-ring 4
Diagram Reference: 21
Get Part
6E54387401
Ring, back-up 4
Diagram Reference: 22
Get Part
64E4382801
Body, reservoir
Diagram Reference: 23
Get Part
64E4382901
Plug, reservoir
Diagram Reference: 24
Get Part
64E4389700
O-ring
Diagram Reference: 25
Get Part
64E4388E01
Bolt ,screw (l:14mm)
Diagram Reference: 26
Get Part
64E4386900
O-ring 9
Diagram Reference: 27
Get Part
64E4381G00
Pin 1
Diagram Reference: 28
Get Part
6E54385800
Ball 1
Diagram Reference: 29
Get Part
64E4382G00
Valve seat
Diagram Reference: 30
Get Part
9020110060
Washer, plate
Diagram Reference: 31
Get Part
9757510530
Bolt, with washer
Diagram Reference: 32
Get Part
6BC4381800
Pin, lower shock mount
Diagram Reference: 33
Get Part
9038622M98
Bush(61u)
Diagram Reference: 34
Get Part
