Parts List
Power trim & tilt assembly

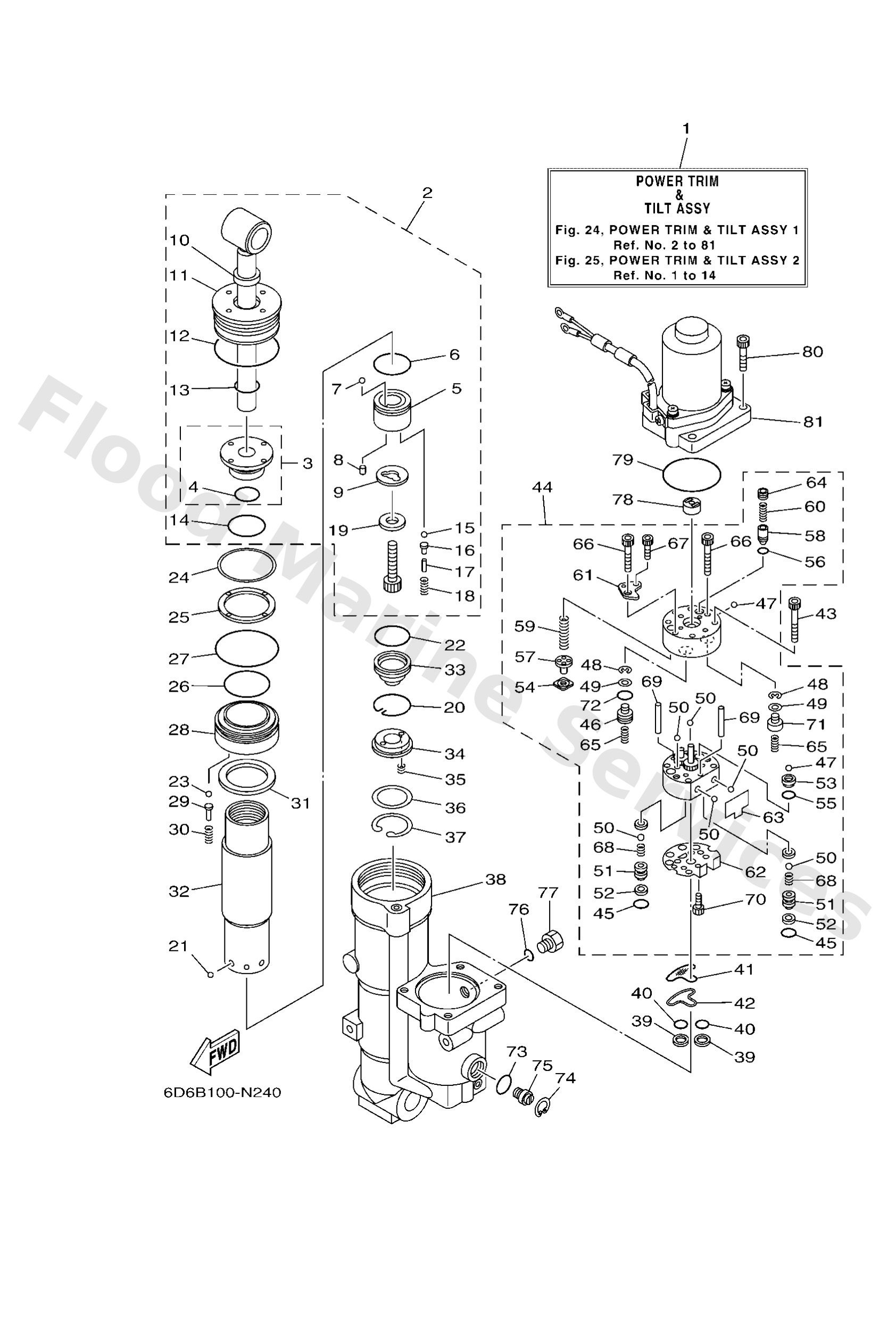

Diagram Reference: 1
Tilt piston sub assembly
Diagram Reference: 2
Cylinder end sub assembly
Diagram Reference: 3
O-ring
Diagram Reference: 4
Piston, tilt
Diagram Reference: 5
O-ring
Diagram Reference: 6
Ball
Diagram Reference: 7
Pin, dowel
Diagram Reference: 8
Plate, valve 2
Diagram Reference: 9
Seal dast
Diagram Reference: 10
Screw, trim cylinder end
Diagram Reference: 11
O-ring
Diagram Reference: 12
O-ring
Diagram Reference: 14
Pin, absorber valve
Diagram Reference: 16
Pin, straight
Diagram Reference: 17
Spring, absorber valve
Diagram Reference: 18
Washer
Diagram Reference: 19
Ring, snap
Diagram Reference: 20
Ball
Diagram Reference: 21
Plate stopper
Diagram Reference: 24
Filter 1
Diagram Reference: 25
O-ring
Diagram Reference: 26
O-ring
Diagram Reference: 27
Piston, trim
Diagram Reference: 28
Pin, absorber valve
Diagram Reference: 29
Spring, absorber valve
Diagram Reference: 30
Plate
Diagram Reference: 31
Cylinder, shock absorber
Diagram Reference: 32
Free piston sub assembly
Diagram Reference: 33
Plate stopper
Diagram Reference: 34
Spring
Diagram Reference: 35
Plate, valve 1
Diagram Reference: 36
Ring, snap
Diagram Reference: 37
Cylinder, tilt sub assembly
Diagram Reference: 38
Filter 2
Diagram Reference: 39
O-ring
Diagram Reference: 40
Filter 1
Diagram Reference: 41
Plate
Diagram Reference: 42
Bolt
Diagram Reference: 43
Gear pump assembly
Diagram Reference: 44
Piston, shuttle
Diagram Reference: 46
Circlip(6l5)
Diagram Reference: 48
Seal, main valve
Diagram Reference: 49
Ball(7fk)
Diagram Reference: 50
Adaptor 2
Diagram Reference: 51
Washer
Diagram Reference: 52
Seat, relief valve
Diagram Reference: 53
Seal, relief valve
Diagram Reference: 54
O-ring(61a)
Diagram Reference: 55
O-ring
Diagram Reference: 56
Pin, valve support
Diagram Reference: 57
Pin, valve support
Diagram Reference: 58
Spring, down relief
Diagram Reference: 59
Spring, up relief
Diagram Reference: 60
Cap, relief valve
Diagram Reference: 61
Seat, relief valve
Diagram Reference: 62
Spring, manual release
Diagram Reference: 63
Screw, valve lock
Diagram Reference: 64
Spring, shuttle return
Diagram Reference: 65
Bolt
Diagram Reference: 66
Bolt
Diagram Reference: 67
Spring, main valve
Diagram Reference: 68
Pin, dowel
Diagram Reference: 69
Bolt
Diagram Reference: 70
Piston, shuttle 2
Diagram Reference: 71
O-ring
Diagram Reference: 72
O-ring
Diagram Reference: 73
Ring, snap
Diagram Reference: 74
Screw, manual release
Diagram Reference: 75
O-ring
Diagram Reference: 76
Plug, reservoir
Diagram Reference: 77
Connector, shaft
Diagram Reference: 78
93210-64488
Diagram Reference: 79
Bolt, hexagon socket head(1jk)
Diagram Reference: 80
Motor assembly (with connector)
Diagram Reference: 81
