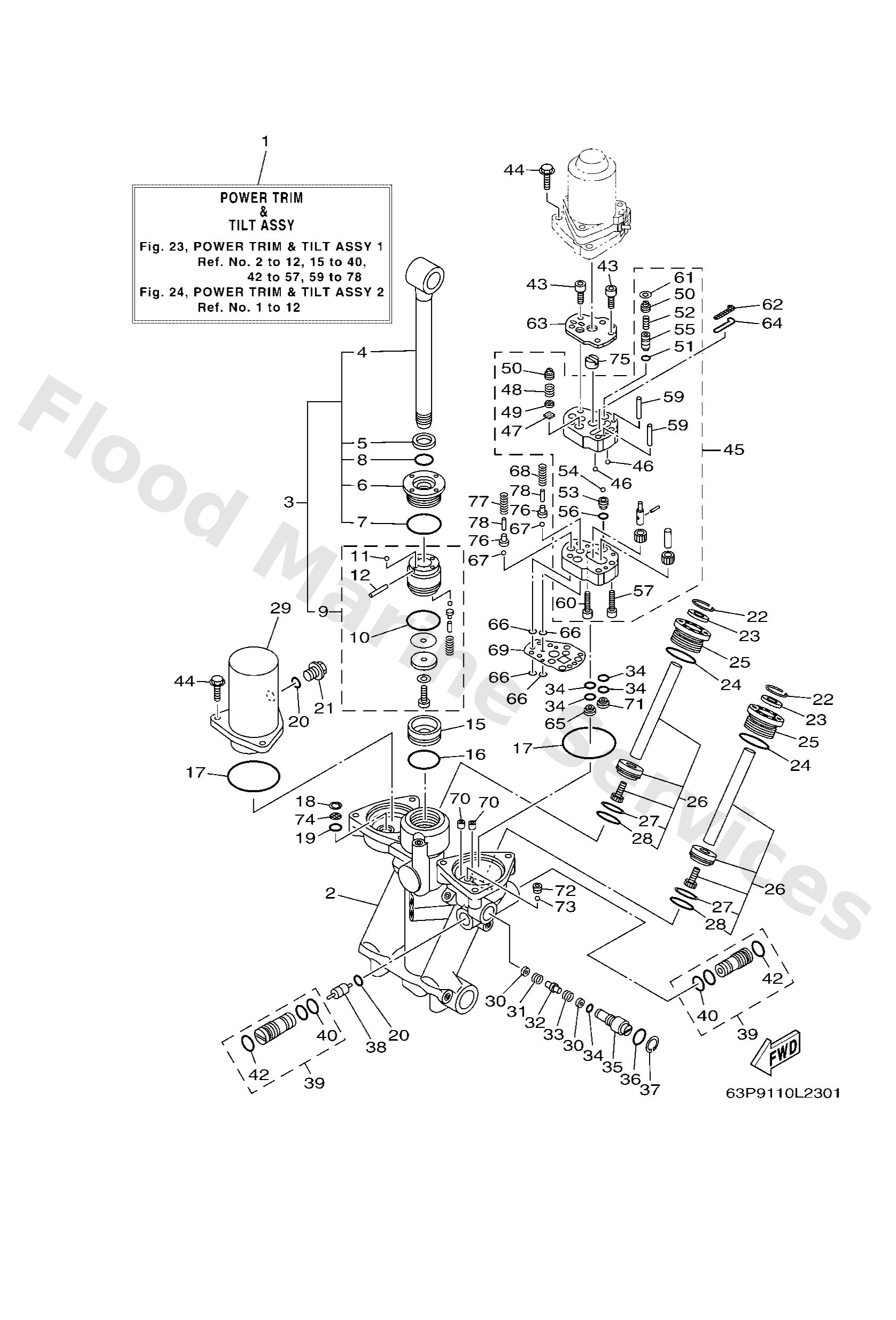

Parts List
Power trim & tilt assembly
Diagram Reference: 1
Housing, trim & tilt sub assembly
Diagram Reference: 2
Tilt piston sub assembly
Diagram Reference: 3
Oil seal
Diagram Reference: 5
Screw, cylinder end
Diagram Reference: 6
O-ring
Diagram Reference: 7
O-ring
Diagram Reference: 8
Piston sub assembly
Diagram Reference: 9
O-ring
Diagram Reference: 10
Ball(7fk)
Diagram Reference: 11
91609-16012
Diagram Reference: 12
Piston, free
Diagram Reference: 15
O-ring
Diagram Reference: 17
Ring, snap
Diagram Reference: 18
O-ring
Diagram Reference: 19
O-ring
Diagram Reference: 20
Plug, reservoir
Diagram Reference: 21
Ring, snap
Diagram Reference: 22
Seal, trim dust
Diagram Reference: 23
O-ring
Diagram Reference: 24
Screw, trim cylinder end
Diagram Reference: 25
Trim piston sub assembly
Diagram Reference: 26
Ring, back up
Diagram Reference: 27
O-ring (j10)
Diagram Reference: 28
Body, reservoir
Diagram Reference: 29
Seat, manual valve
Diagram Reference: 30
Spring, manual release
Diagram Reference: 31
Adaptor 1
Diagram Reference: 32
Spring
Diagram Reference: 33
O-ring
Diagram Reference: 34
Screw, manual release
Diagram Reference: 35
O-ring (6g5)
Diagram Reference: 36
Ring, snap
Diagram Reference: 37
Piston, shuttle
Diagram Reference: 38
Valve sub assembly
Diagram Reference: 39
O-ring
Diagram Reference: 40
O-ring
Diagram Reference: 42
Bolt,socket
Diagram Reference: 43
Bolt, hexagon w/w deep recess
Diagram Reference: 44
Gear pump assembly
Diagram Reference: 45
Ball
Diagram Reference: 46
Seal, relief valve
Diagram Reference: 47
Spring, down relief
Diagram Reference: 48
Pin, valve support
Diagram Reference: 49
Screw, valve lock
Diagram Reference: 50
O-ring(61a)
Diagram Reference: 51
Spring, up relief
Diagram Reference: 52
Seat, relief valve
Diagram Reference: 53
Ball
Diagram Reference: 54
Pin, valve support
Diagram Reference: 55
O-ring
Diagram Reference: 56
Bolt(62x)
Diagram Reference: 57
Pin, dowel
Diagram Reference: 59
Bolt,socket
Diagram Reference: 60
Washer, wave
Diagram Reference: 61
Filter 1
Diagram Reference: 62
Plate
Diagram Reference: 63
Ring, back up
Diagram Reference: 64
Plate stopper
Diagram Reference: 65
Spring, seal
Diagram Reference: 68
Seal, relief valve
Diagram Reference: 69
Plug
Diagram Reference: 70
Plate stopper
Diagram Reference: 71
Bolt, socket
Diagram Reference: 72
Filter 1
Diagram Reference: 74
Connector, shaft
Diagram Reference: 75
Pin, absorber valve
Diagram Reference: 76
Spring, absorber valve
Diagram Reference: 77
Pin, straight
Diagram Reference: 78
