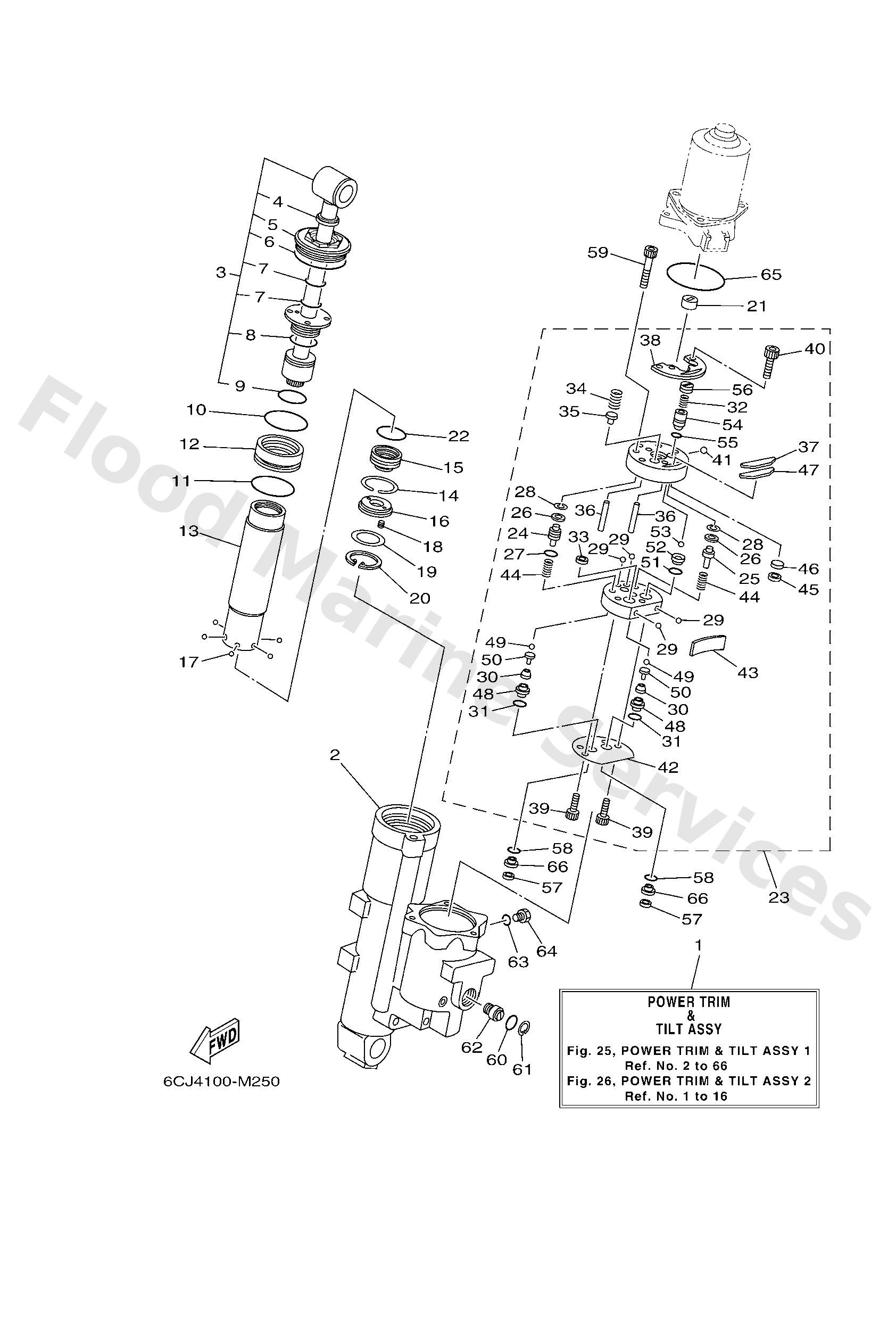

Diagram: POWER TRIM & TILT ASSY 1

Diagram

Parts List

6CJ43800108D
Power trim & tilt assembly
Diagram Reference: 1
Get Part
6CJ4380K01
Cylinder, tilt sub assembly
Diagram Reference: 2
Get Part
6CJ4381001
Tilt piston sub assembly
Diagram Reference: 3
Get Part
62Y4382200
Seal, trim dust
Diagram Reference: 4
Get Part
68S4382101
Screw, trim cylinder end
Diagram Reference: 5
Get Part
62X4386100
O-ring
Diagram Reference: 6
Get Part
6CJ4386300
O-ring
Diagram Reference: 7
Get Part
62X4386200
O-ring
Diagram Reference: 8
Get Part
67F4386300
O-ring
Diagram Reference: 9
Get Part
9321044383
O-ring (705)
Diagram Reference: 10
Get Part
6CJ4386100
O-ring
Diagram Reference: 11
Get Part
6CJ4388A00
Piston, trim
Diagram Reference: 12
Get Part
6CJ2247100
Cylinder, shock absorber
Diagram Reference: 13
Get Part
67F4387500
Ring, snap
Diagram Reference: 14
Get Part
69W4381B00
Free piston sub assembly
Diagram Reference: 15
Get Part
62X4389900
Plate stopper
Diagram Reference: 16
Get Part
9350316003
Ball
Diagram Reference: 17
Get Part
62X4384H00
Spring
Diagram Reference: 18
Get Part
1UF2243400
Plate, valve 1
Diagram Reference: 19
Get Part
62X4387500
Ring, snap
Diagram Reference: 20
Get Part
6H14383110
Connector, shaft
Diagram Reference: 21
Get Part
6CJ4383000
Gear pump assembly
Diagram Reference: 23
Get Part
6CJ4384100
Piston, shuttle
Diagram Reference: 24
Get Part
6CJ4384M00
Piston, shuttle 2
Diagram Reference: 25
Get Part
69A4384F00
Seal, main valve
Diagram Reference: 26
Get Part
6H14388300
O-ring
Diagram Reference: 27
Get Part
9900203600
Circlip(6l5)
Diagram Reference: 28
Get Part
9350532038
Ball(7fk)
Diagram Reference: 29
Get Part
69J4385300
Spring, main valve
Diagram Reference: 30
Get Part
69J4389J00
O-ring
Diagram Reference: 31
Get Part
69J4385500
Spring, up relief
Diagram Reference: 32
Get Part
6H14384F10
Seal, main valve
Diagram Reference: 33
Get Part
69W4385600
Spring, down relief
Diagram Reference: 34
Get Part
6H14384410
Pin, valve support
Diagram Reference: 35
Get Part
9360426256
Pin, dowel
Diagram Reference: 36
Get Part
6CJ4381600
Filter 1
Diagram Reference: 37
Get Part
69W4382L00
Cap, relief valve
Diagram Reference: 38
Get Part
9131805020
Bolt, socket
Diagram Reference: 39
Get Part
9131805008
Bolt,socket
Diagram Reference: 40
Get Part
9350108001
Ball
Diagram Reference: 41
Get Part
69W4384G00
Seal, relief valve
Diagram Reference: 42
Get Part
69W4385400
Spring, manual release
Diagram Reference: 43
Get Part
69J4389400
Spring, shuttle return
Diagram Reference: 44
Get Part
62Y4387J00
Washer, special 2
Diagram Reference: 45
Get Part
62Y2243400
Plate, valve 1
Diagram Reference: 46
Get Part
62Y4387100
Ring, back up
Diagram Reference: 47
Get Part
6CJ4389300
Washer
Diagram Reference: 48
Get Part
65W4386A00
Pin, absorber valve
Diagram Reference: 50
Get Part
9321008391
O-ring
Diagram Reference: 51
Get Part
69J4385100
Seat, relief valve
Diagram Reference: 52
Get Part
6CJ4384400
Pin, valve support
Diagram Reference: 54
Get Part
93210064A5
O-ring(61a)
Diagram Reference: 55
Get Part
6CJ4384300
Screw, valve lock
Diagram Reference: 56
Get Part
69J4381C00
Filter 3
Diagram Reference: 57
Get Part
9131806040
Bolt,socket
Diagram Reference: 59
Get Part
6D84386300
O-ring
Diagram Reference: 60
Get Part
6H14387500
Ring, snap
Diagram Reference: 61
Get Part
62Y4384500
Screw, manual release
Diagram Reference: 62
Get Part
9321009165
O-ring
Diagram Reference: 63
Get Part
6H14382900
Plug, reservoir
Diagram Reference: 64
Get Part
62X4386500
O-ring
Diagram Reference: 65
Get Part
6CJ4389900
Plate stopper
Diagram Reference: 66
Get Part
