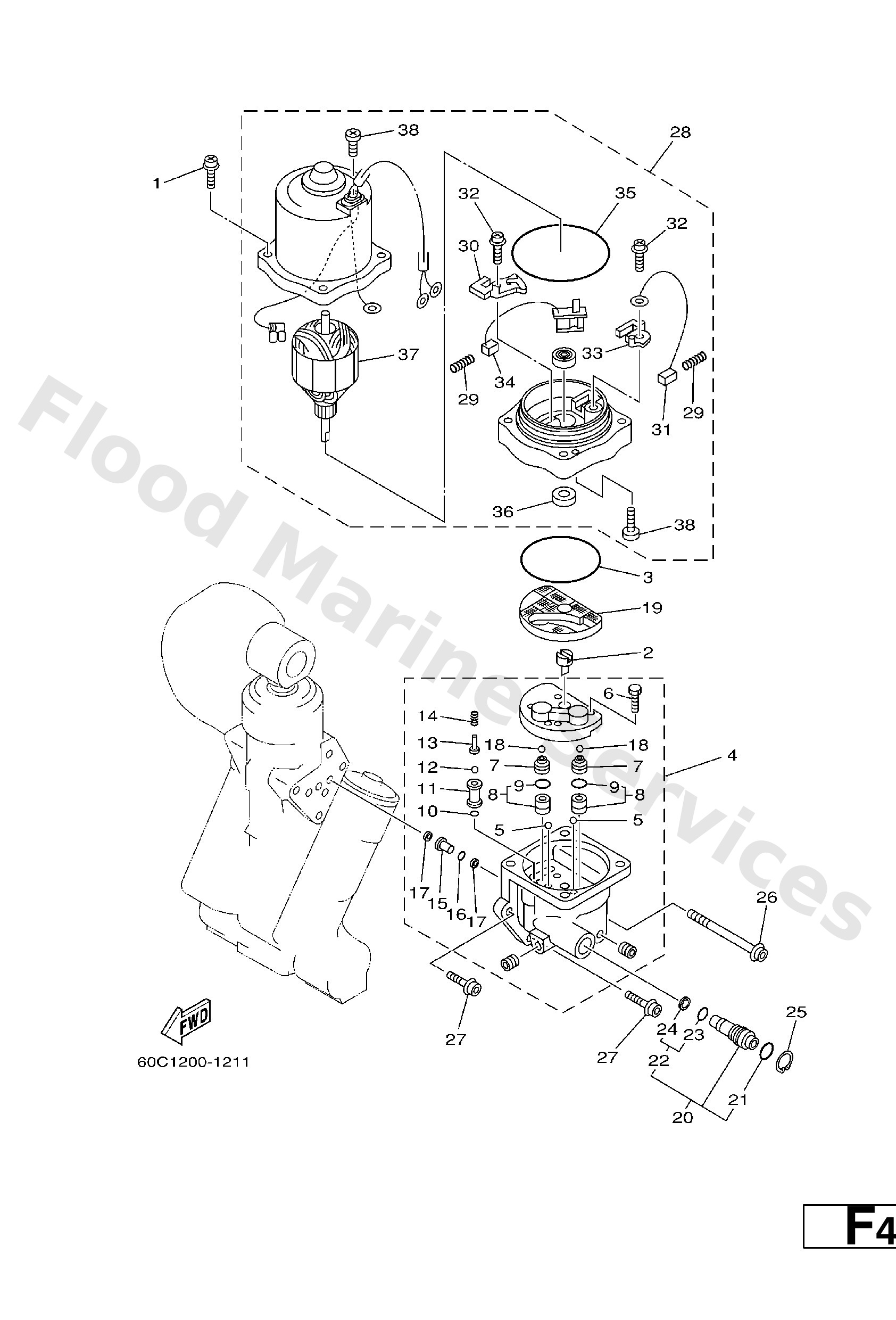

Diagram: POWER TRIM & TILT ASSY 2

Diagram

Parts List

64E−4388E−10
Bolt ,screw (l:34.7mm)
Diagram Reference: 1
Get Part
64E−43831−00
Connector, shaft
Diagram Reference: 2
Get Part
64E−43868−00
O-ring 8
Diagram Reference: 3
Get Part
64E−43830−00
Gear pump assembly
Diagram Reference: 4
Get Part
72X−43858−00
Ball
Diagram Reference: 5
Get Part
64E−43843−00
Screw, valve lock
Diagram Reference: 6
Get Part
64E−43841−00
Piston, shuttle
Diagram Reference: 7
Get Part
64E−43802−00
Valve sub assembly
Diagram Reference: 8
Get Part
6E5−43896−00
O-ring
Diagram Reference: 9
Get Part
6G5−43863−00
O-ring 3
Diagram Reference: 10
Get Part
64E−43851−00
23 −
Diagram Reference: 11
Get Part
64E−43858−00
Ball
Diagram Reference: 12
Get Part
64E−43859−00
Pin, Valve Support
Diagram Reference: 13
Get Part
64E−43855−00
Spring, up relief
Diagram Reference: 14
Get Part
64E−43850−00
Valve sub assembly
Diagram Reference: 15
Get Part
64E−43865−00
O-ring 10
Diagram Reference: 16
Get Part
64E−43816−00
Filter 1
Diagram Reference: 17
Get Part
64E−43817−10
Filter 2
Diagram Reference: 19
Get Part
64E−43860−00
Manual valve sub-assembly
Diagram Reference: 20
Get Part
72X−85075−L0
O-ring (nsd161)
Diagram Reference: 21
Get Part
64E−43827−00
Ring set
Diagram Reference: 22
Get Part
64E−4387A−00
O-ring
Diagram Reference: 23
Get Part
64E−43873−00
Ring, back up
Diagram Reference: 24
Get Part
64E−43875−00
Ring, snap
Diagram Reference: 25
Get Part
64E−43879−10
Screw, with washer
Diagram Reference: 26
Get Part
64E−43879−00
Screw, with washer
Diagram Reference: 27
Get Part
64E−43880−01
Motor assembly
Diagram Reference: 28
Get Part
6H1−4386K−10
Spring, brush
Diagram Reference: 29
Get Part
64E−4380J−00
23 −
Diagram Reference: 30
Get Part
64E−43891−00
Brush 1
Diagram Reference: 31
Get Part
97607−04310
Screw, pan head(6g8)
Diagram Reference: 32
Get Part
64E−4380F−00
Holder, brush 2
Diagram Reference: 33
Get Part
64E−43892−00
Breaker comp. (brush 2)
Diagram Reference: 34
Get Part
6G5−43865−00
O-ring
Diagram Reference: 35
Get Part
93102−08M43
Oil seal(6b0)
Diagram Reference: 36
Get Part
64E−43805−00
Armature assembly
Diagram Reference: 37
Get Part
64E−43843−10
Screw valve lock
Diagram Reference: 38
