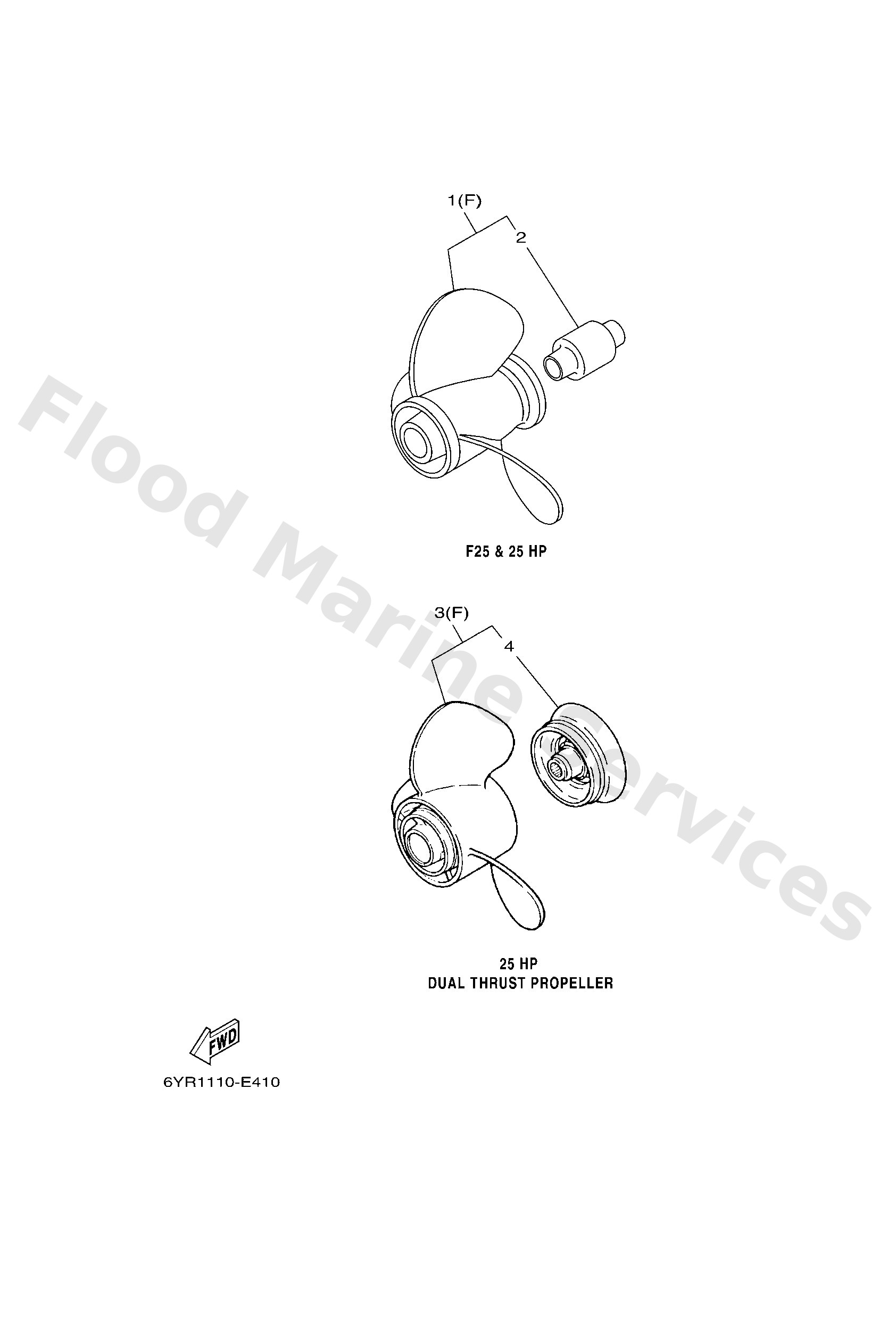

Diagram: PROPELLERS F25 AND 25

Diagram

Parts List

6644594301EL (UR)

Propeller (3x9-7/8 x8 -f)

Diagram Reference: 1

MARGYT3B0214 (UR)

10 1/8 X 14 3 Blade Ss F

Diagram Reference: 1

MARGYT3B0213 (UR)

10 1/8 X 13 3 Blade Ss F

Diagram Reference: 1

MARGYT3B0212 (UR)

10 1/8 X 12 3 Blade Ss F

Diagram Reference: 1

MARGYT3B0211 (UR)

10 1/8 X 11 3 Blade Ss F

Diagram Reference: 1

MARGYT3B0210 (UR)

10 1/8 X 10 3 Blade Ss F

Diagram Reference: 1

664459720098 (UR WEEDLESS)

Propeller (3x9-1/8 x12 -f)

Diagram Reference: 1

664459700098 (UR WEEDLESS)

Propeller (3x9-1/8 x13 -f)

Diagram Reference: 1

6644595401EL (UR)

Propeller (3x9-7/8 x12 -f)

Diagram Reference: 1

6644595200EL (UR)

Propeller (3x9-7/8 x14 -f)

Diagram Reference: 1

6644594902EL (UR)

Propeller (3x9-7/8 x13 -f)

Diagram Reference: 1

6644594701EL (UR)

Propeller (3x9-7/8 x11-1/4 -f)

Diagram Reference: 1

6644594500EL (UR)

Propeller (3x9-7/8 x10-1/2 -f)

Diagram Reference: 1

6644594101EL (UR)

Propeller (3x9-7/8"x9"-f)

Diagram Reference: 1

6644598101 (FOR 664 PROPELLER)

Damper rubber, propeller

Diagram Reference: 2

6J8W459100EL (DUAL THRUST)

Propeller (3x10-5/8"x8-1/4"-f)

Diagram Reference: 3

6J8459861098

Ring, deflector

Diagram Reference: 4
