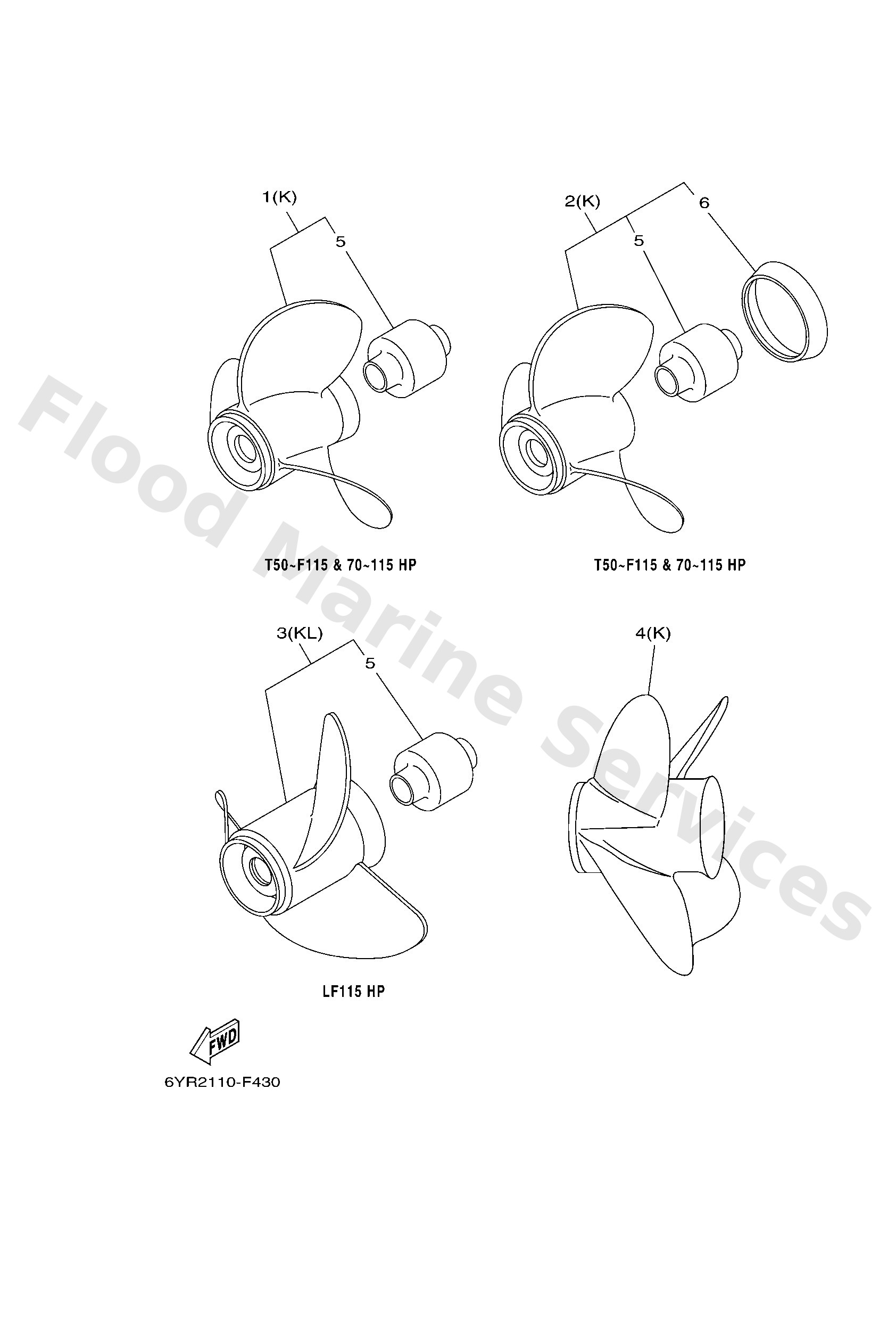

Diagram: PROPELLERS T50 THROUGH (L)F115

Diagram

Parts List

688459326098 (UR)

Propeller (3x13-1/2"x14"-k)

Diagram Reference: 1

688459300298 (UR)

Propeller (3x13x17)

Diagram Reference: 1

MARGYT3BV424 (UR)

3Blade 13.25X24 V4

Diagram Reference: 1

MARGYT3BV422 (UR)

3 Blade V4 13.25X22 Prop

Diagram Reference: 1

MARGYT3BV420 (UR)

3Blade 13.25X20 V4

Diagram Reference: 1

MARGYT3BV418 (UR)

3Blade V4 13.25X18 Prop

Diagram Reference: 1

MARGYT3BV416 (UR)

3Blade V4 13.25X16 Prop

Diagram Reference: 1

MARGYT3BV414 (UR)

3Blade V4 13.25X14 Prop

Diagram Reference: 1

62A4597410 (UR HIGH PERFORMANCE)

-

Diagram Reference: 1

62A4597210 (UR HIGH PERFORMANCE)

-

Diagram Reference: 1

62A4597010 (UR HIGH PERFORMANCE)

-

Diagram Reference: 1

68S4594100EL (UR DUAL THRUST)

Propeller (3x14 x11 -k)

Diagram Reference: 1

688459786098 (UR)

Propeller (3x13-1/2"x16"-k)

Diagram Reference: 1

688459760198 (UR)

Propeller (ss 3x13"x25"-k)

Diagram Reference: 1

688459740298 (UR)

Propeller (3x13"x23"-k)

Diagram Reference: 1

688459720298 (UR)

Propeller (3x13"x21"-k)

Diagram Reference: 1

688459700398 (UR)

Propeller (3x13"x19"-k)

Diagram Reference: 1

6E54595600EL (UR)

Propeller (3x13"x25"-k)

Diagram Reference: 2

6E54595400EL (UR)

Propeller (3x14"x11"-k)

Diagram Reference: 2

6E54594501EL (UR)

Propeller (3x13-1/4x17-k)

Diagram Reference: 2

6E54595200EL (UR)

Propeller (3x13"x23"-k)

Diagram Reference: 2

6E54594700EL (UR)

Propeller (3x13-1/2x15-k)

Diagram Reference: 2

6E54594300EL (UR)

Propeller (3x12-5/8"x21"-k)

Diagram Reference: 2

6E54594100EL (UR)

Propeller (3x13x19-k)

Diagram Reference: 2

6E54594900EL (UR)

Propeller (3x13-5/8"x13"-k)

Diagram Reference: 2

6L6459300098 (UR)

Propeller (3x13"x17"-kl)

Diagram Reference: 3

6L6459700098 (UR)

Propeller (3x13 x19 -kl)

Diagram Reference: 3

MARGYT3BL418 (UR ALUMINUM)

3 Blade L4 13 1/4 X 18 Cr Prop

Diagram Reference: 3

MARGYT3BL422 (UR ALUMINUM)

3 Blade L4 13 1/4 X 22 Cr Prop

Diagram Reference: 3

MARGYT3BL420 (UR ALUMINUM)

3 Blade L4 13 1/4 X 20 Cr Prop

Diagram Reference: 3

MARGYT3BL416 (UR ALUMINUM)

3 Blade L4 13 1/4 X 16 Cr Prop

Diagram Reference: 3

MARGYT3BL414 (UR ALUMINUM)

3 Blade L4 13 1/4 X 14 Cr Prop

Diagram Reference: 3

6L6459720098 (UR)

Propeller (ss 3x13"x21"-kl)

Diagram Reference: 3

MARGYT4BV418 (UR)

4 Blade V4 13.25X18 Prop

Diagram Reference: 4

MARGYT4BV420 (UR)

4 Blade 13.25X20V4

Diagram Reference: 4

MARGYT4BV422 (UR)

4 Blade 13.25X22V4

Diagram Reference: 4

MARGYT4BV423 (UR)

4 Blade 13.25X23V4

Diagram Reference: 4

6884598100

Damper rubber, propeller

Diagram Reference: 5

6884598600 (FOR 6E5 PROPELLER)

Ring, Deflector

Diagram Reference: 6
