15FWH (1996)
Partie Electrique 2

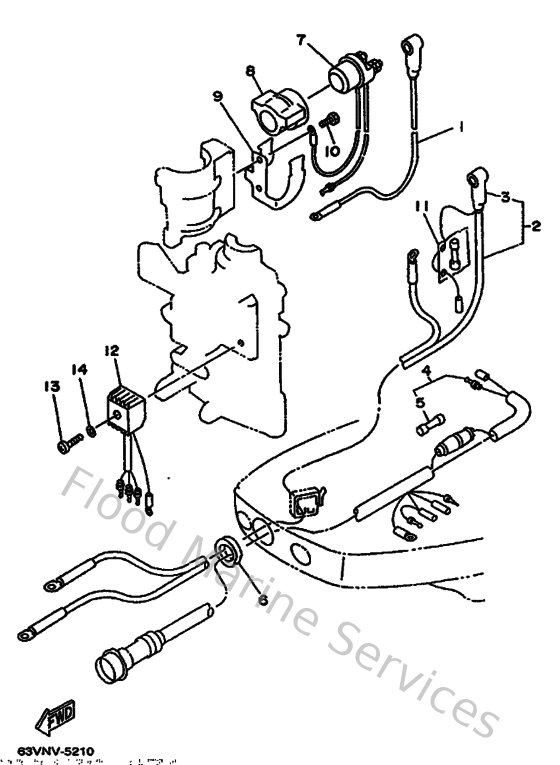

Diagram: Partie Electrique 2
Parts List
Reference
Description
Price
1
6E7821170000
Wire, lead
Loading…
↗
2
6E7821051100
Battery cable
Loading…
↗
3
6G5821191000
Cover, lead wire
Loading…
↗
5
682821510000
Fuse
Loading…
↗
6
682427245000
Grommet
Loading…
↗
7
6G1819411000
Starter relay
Loading…
↗
8
6G1819520000
Holder, relay
Loading…
↗
9
6E7819450000
Plate, Switch Fitting
Loading…
↗
10
970950601400
Bolt(gj3)
Loading…
↗
12
664819706100
Rectifier assembly
Loading…
↗
13
985800552500
Screw, panhead (a93)
Loading…
↗
14
929900560000
Washer, plain (646)
Loading…
↗
