Parts List

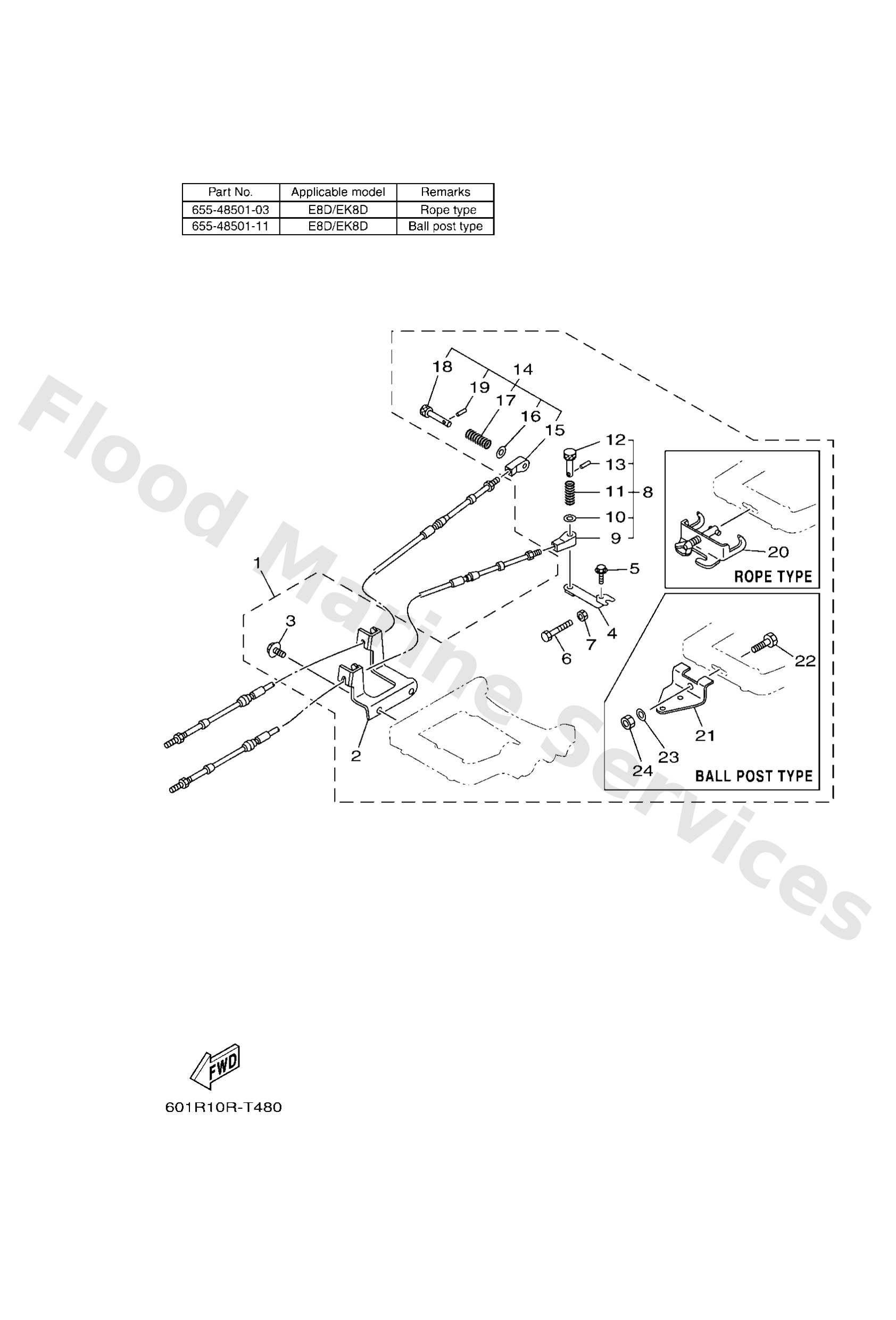

Remote Cont. Attachment assembly.
Diagram Reference: 1
Bracket, remote control 1
Diagram Reference: 2
Bolt, hexagon w/w deep recess
Diagram Reference: 3
Throttle lever, control
Diagram Reference: 4
Bolt, With Washer
Diagram Reference: 5
Bolt, hexagon deep recess
Diagram Reference: 6
Nut(661)
Diagram Reference: 7
Cable end assembly (sfift)
Diagram Reference: 8
Cable end, remote control
Diagram Reference: 9
Washer, plain (663)
Diagram Reference: 10
Spring 6044833200
Diagram Reference: 11
Hook, cable
Diagram Reference: 12
Pin, spring
Diagram Reference: 13
Cable end assembly (throttle)
Diagram Reference: 14
Cable end, remote control
Diagram Reference: 15
Spring 6174833290
Diagram Reference: 17
Hook, cable
Diagram Reference: 18
Hook steering assembly
Diagram Reference: 20
Hook, steering
Diagram Reference: 21
Bolt, hexagon deep recess
Diagram Reference: 22
Washer, plate
Diagram Reference: 23
Nut, self-locking
Diagram Reference: 24
