Parts List

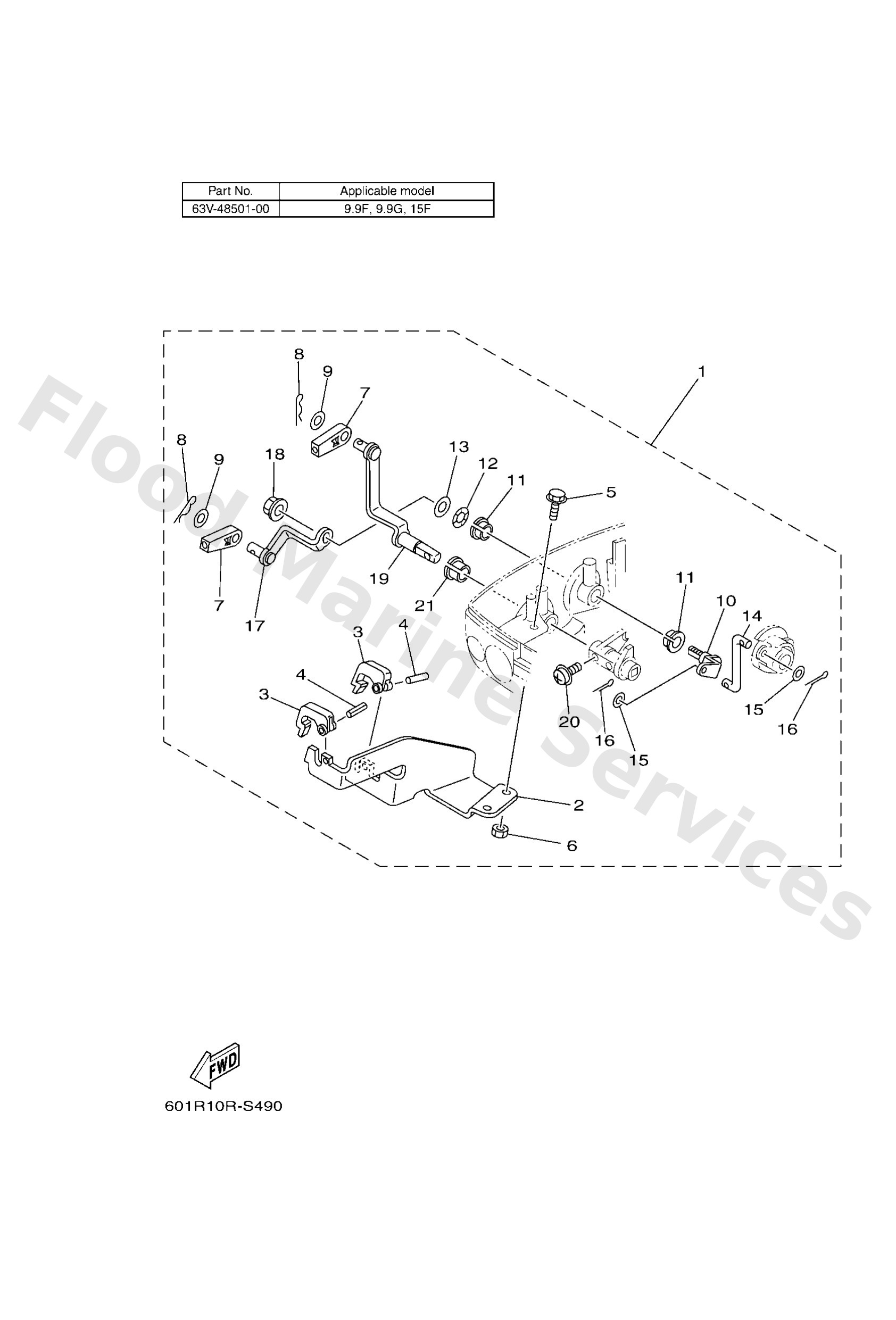

Remote cont. attachment assembly
Diagram Reference: 1
Bracket, remote control 1
Diagram Reference: 2
Clamp, cable
Diagram Reference: 3
Pin, spring
Diagram Reference: 4
Bolt, with washer(6r6)
Diagram Reference: 5
Nut(661)
Diagram Reference: 6
Cable end, remote control
Diagram Reference: 7
Clip 620436610000
Diagram Reference: 8
Washer plate (682)
Diagram Reference: 9
Lever, throttle control
Diagram Reference: 10
Bushing (658)
Diagram Reference: 11
Washer, wave (676)
Diagram Reference: 12
Washer, plate(6g9)
Diagram Reference: 13
Rod 2
Diagram Reference: 14
Washer, plate(26h)
Diagram Reference: 15
Pin, cotter
Diagram Reference: 16
Throttle lever, control
Diagram Reference: 17
Nut, nylon (6j8)
Diagram Reference: 18
Lever, shiftcontrol
Diagram Reference: 19
Screw,pan head (646)
Diagram Reference: 20
Bushing 6484418600
Diagram Reference: 21
