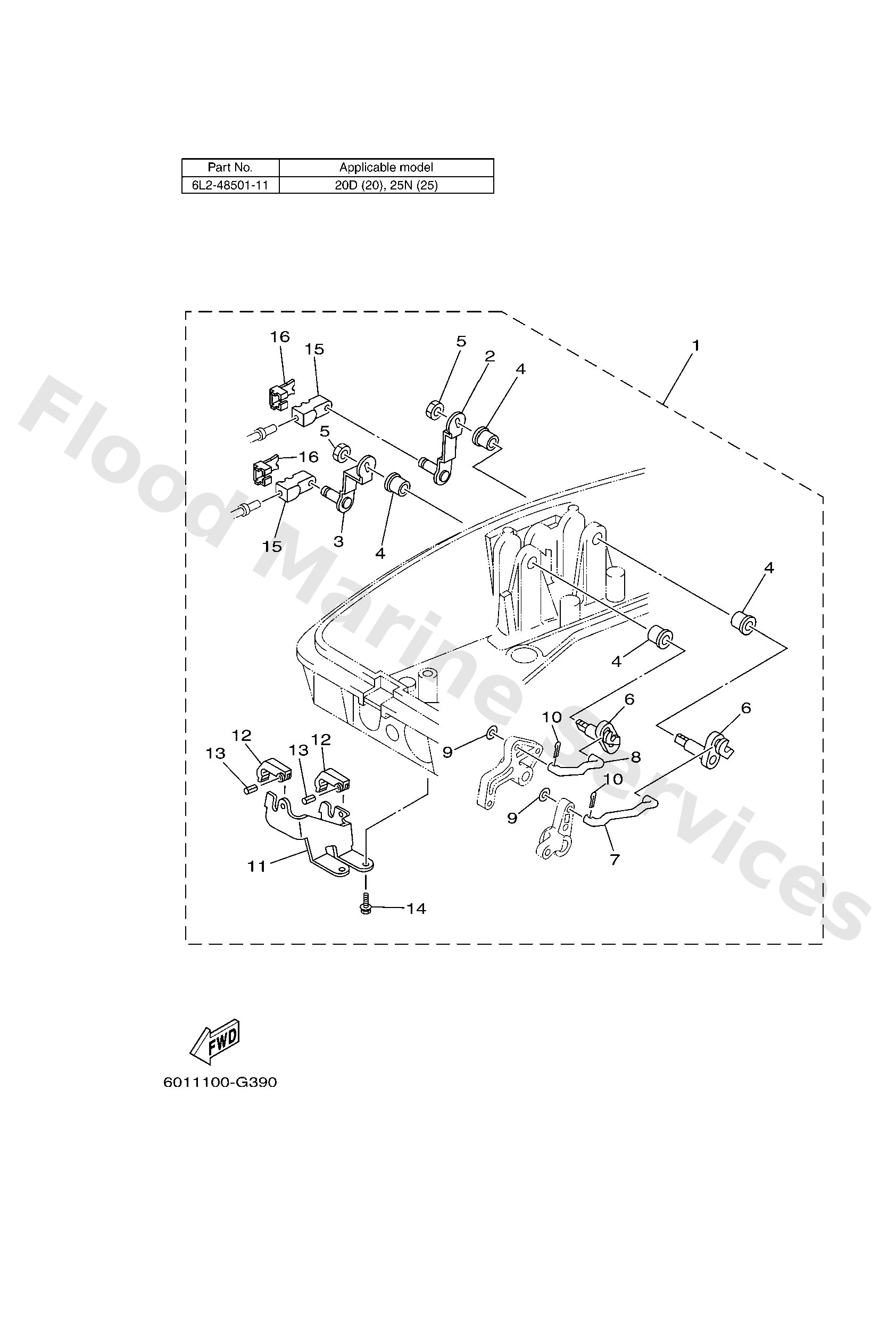

Diagram: REMO CON ATTACHMENT 3

Diagram

Parts List

6L24850111
Remote cont. attachment assembly.
Diagram Reference: 1
Get Part
6L24854401
Lever, shiftcontrol
Diagram Reference: 2
Get Part
6L24853401
Throttle lever, control
Diagram Reference: 3
Get Part
9038610009
Bushing 6484418600
Diagram Reference: 4
Get Part
9578008300
Nut, nylon (6j8)
Diagram Reference: 5
Get Part
6L24215401
Lever, throttle control
Diagram Reference: 6
Get Part
6L24219101
Rod 1
Diagram Reference: 7
Get Part
6L24219220
Rod 2
Diagram Reference: 8
Get Part
9020205088
Washer, plate (666)
Diagram Reference: 9
Get Part
9149020010
Pin, cotter
Diagram Reference: 10
Get Part
6L24853100
Bracket, remote control 1
Diagram Reference: 11
Get Part
6824853850
Clamp, cable
Diagram Reference: 12
Get Part
9169030012
Pin, spring
Diagram Reference: 13
Get Part
9010506M23
Bolt (6g1)
Diagram Reference: 14
Get Part
6G82636300
End, wire 1
Diagram Reference: 15
Get Part
6G82636400
End, wire 2
Diagram Reference: 16
Get Part
