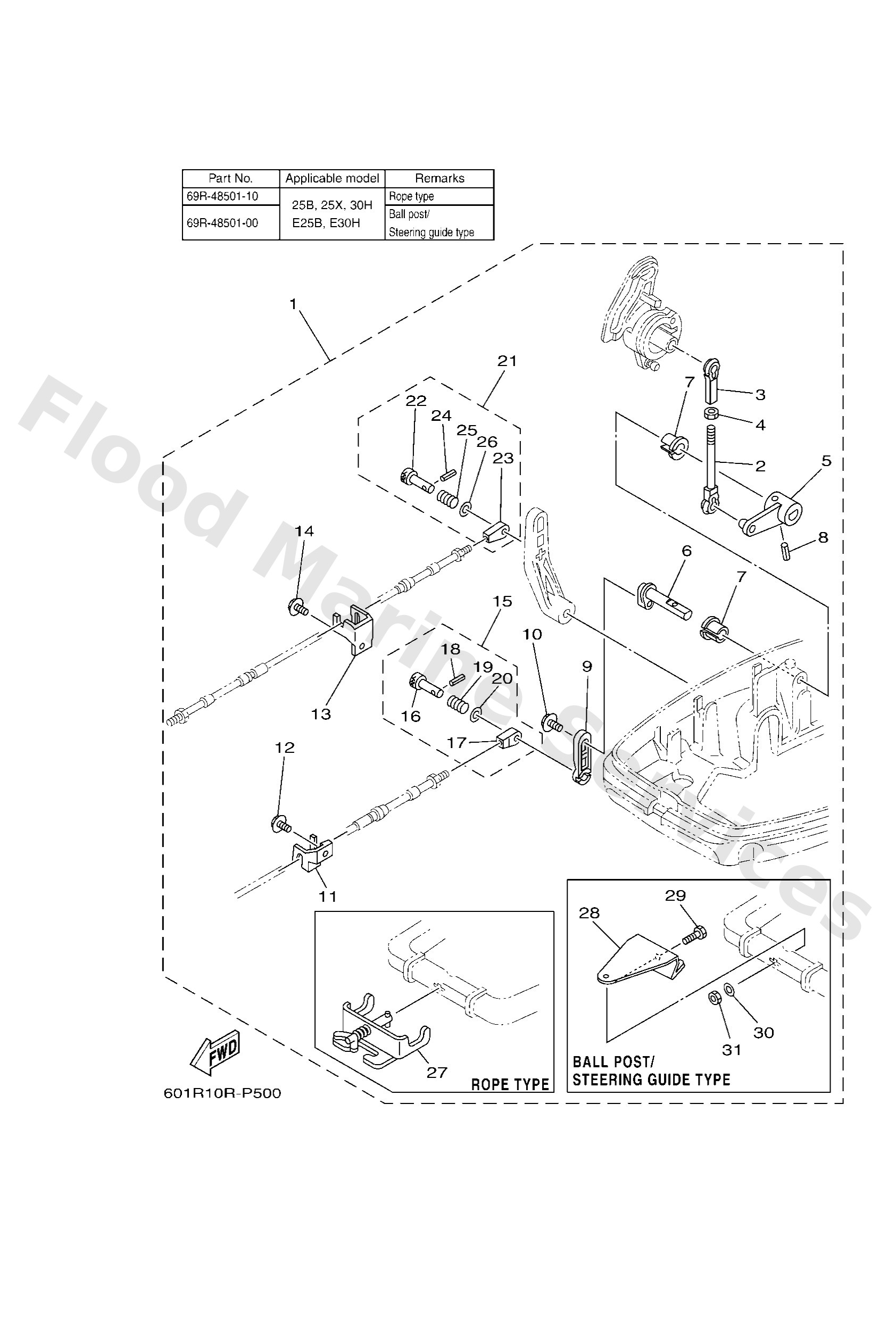

Parts List
Remote cont. attachment assembly.
Diagram Reference: 1
Remote cont. attachment assembly.
Diagram Reference: 1
Joint, link
Diagram Reference: 2
Joint, link 2
Diagram Reference: 3
Nut, hexagon (663)
Diagram Reference: 4
Lever, throttle
Diagram Reference: 5
Shaft, throttle control
Diagram Reference: 6
Bushing 6484418600
Diagram Reference: 7
Pin spring(664)
Diagram Reference: 8
Throttle lever, control
Diagram Reference: 9
Bolt, hexagon w/w deep recess
Diagram Reference: 10
Bracket, remote control 2
Diagram Reference: 11
Bolt, with washer(6r6)
Diagram Reference: 12
Bracket, remote control 1
Diagram Reference: 13
Cable end assembly
Diagram Reference: 15
Hook, cable
Diagram Reference: 16
Cable end, remote control
Diagram Reference: 17
Pin, spring
Diagram Reference: 18
Spring 6174833290
Diagram Reference: 19
Washer, plain (663)
Diagram Reference: 20
Cable end assembly
Diagram Reference: 21
Hook, cable
Diagram Reference: 22
Cable,end remote control 3
Diagram Reference: 23
Spring 6044833200
Diagram Reference: 25
Hook steering assembly
Diagram Reference: 27
Hook, steering
Diagram Reference: 28
Bolt, hexagon deep recess
Diagram Reference: 29
Washer, plate
Diagram Reference: 30
Nut, self-locking
Diagram Reference: 31
