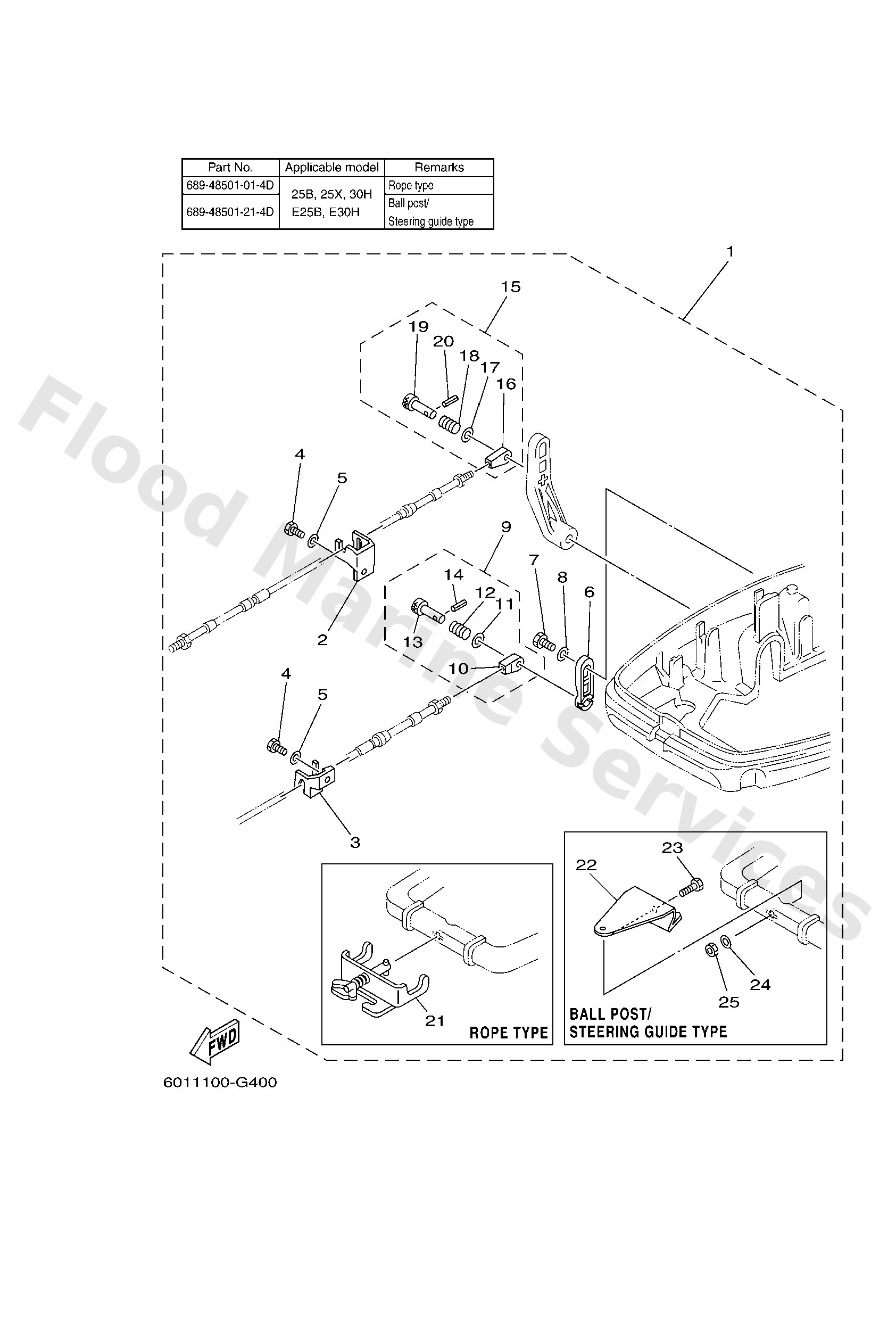

Parts List
Remote Cont. Attachment Assy.
Diagram Reference: 1
Remote Cont. Attachment Assy.
Diagram Reference: 1
Bracket, Remote Control 1
Diagram Reference: 2
Bracket, Remote Control 2
Diagram Reference: 3
Bolt
Diagram Reference: 4
Throttle Lever, Control
Diagram Reference: 6
Bolt
Diagram Reference: 7
Cable End Assy
Diagram Reference: 9
Cable End, Remote Control
Diagram Reference: 10
Washer, Plate
Diagram Reference: 11
Spring, Compression
Diagram Reference: 12
Hook, Cable
Diagram Reference: 13
Pin, Spring
Diagram Reference: 14
Cable End Assy
Diagram Reference: 15
Cable End, Remote Control
Diagram Reference: 16
Spring, Compression
Diagram Reference: 18
Hook, Cable
Diagram Reference: 19
Steering Hook Assy
Diagram Reference: 21
Hook, Steering
Diagram Reference: 22
Bolt
Diagram Reference: 23
Washer, Plate
Diagram Reference: 24
Nut, Self-Locking
Diagram Reference: 25
