Parts List
Remote cont. attachment assembly.

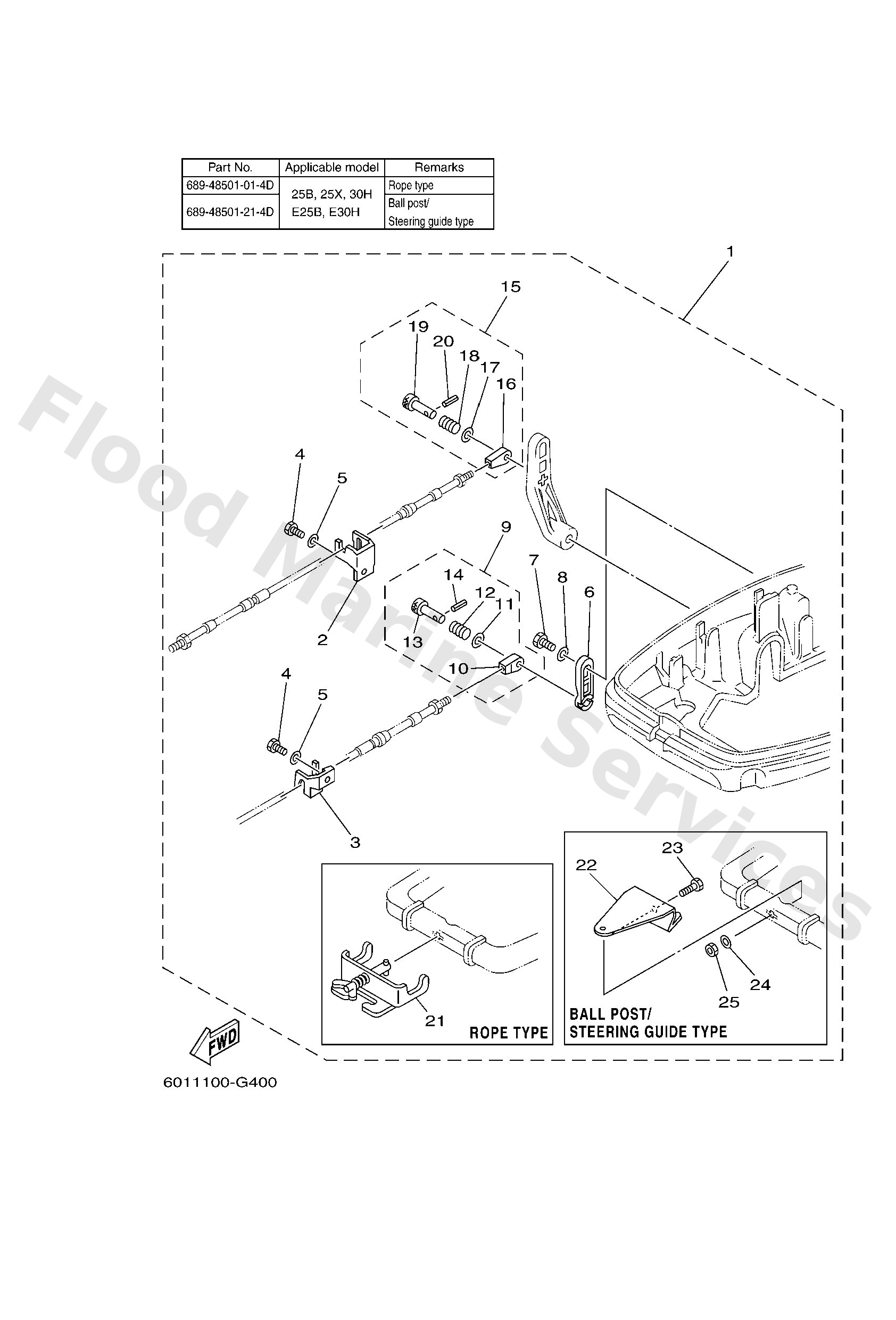

Diagram Reference: 1
Remote cont. attachment assembly.
Diagram Reference: 1
Bracket, remote control 1
Diagram Reference: 2
Bracket, remote control 2
Diagram Reference: 3
Bolt, hexagon deep recess
Diagram Reference: 4
Washer, plain (646)
Diagram Reference: 5
Throttle lever, control
Diagram Reference: 6
Bolt(gh1)
Diagram Reference: 7
Cable end assembly
Diagram Reference: 9
Cable end, remote control
Diagram Reference: 10
Washer, plain (663)
Diagram Reference: 11
Spring 6174833290
Diagram Reference: 12
Hook, cable
Diagram Reference: 13
Pin, spring
Diagram Reference: 14
Cable end assembly
Diagram Reference: 15
Cable,end remote control 3
Diagram Reference: 16
Spring 6044833200
Diagram Reference: 18
Hook, cable
Diagram Reference: 19
Hook steering assembly
Diagram Reference: 21
Hook, steering
Diagram Reference: 22
Bolt, hexagon deep recess
Diagram Reference: 23
Washer, plate
Diagram Reference: 24
Nut, self-locking
Diagram Reference: 25
