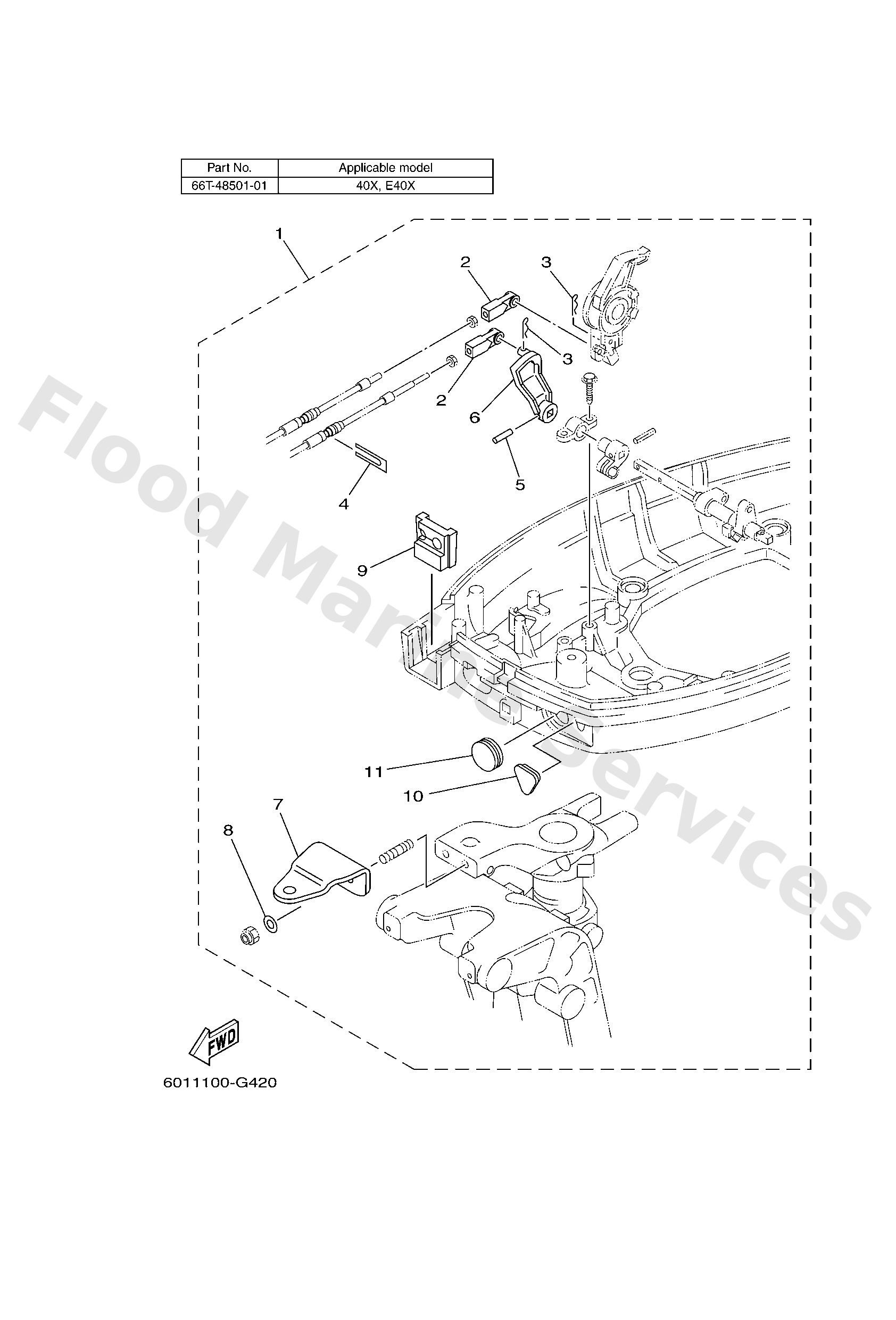

Diagram: REMO CON ATTACHMENT 6

Diagram

Parts List

66T4850101
Remote cont. attachment assembly.
Diagram Reference: 1
Get Part
6634834400
Cable end, remote control
Diagram Reference: 2
Get Part
9046818008
Clip 620436610000
Diagram Reference: 3
Get Part
6H34853800
Clamp, cable
Diagram Reference: 4
Get Part
9025403M04
Pin, spring (6h3)
Diagram Reference: 5
Get Part
66T4412501
Lever, shift rod
Diagram Reference: 6
Get Part
65W4851100
Hook, steering
Diagram Reference: 7
Get Part
9020110120
Washer, plate
Diagram Reference: 8
Get Part
66T4272530
Grommet
Diagram Reference: 9
Get Part
65W2632610
Grommet
Diagram Reference: 10
Get Part
65W4272610
Grommet
Diagram Reference: 11
Get Part
