Parts List
Remote cont. attachment assembly.

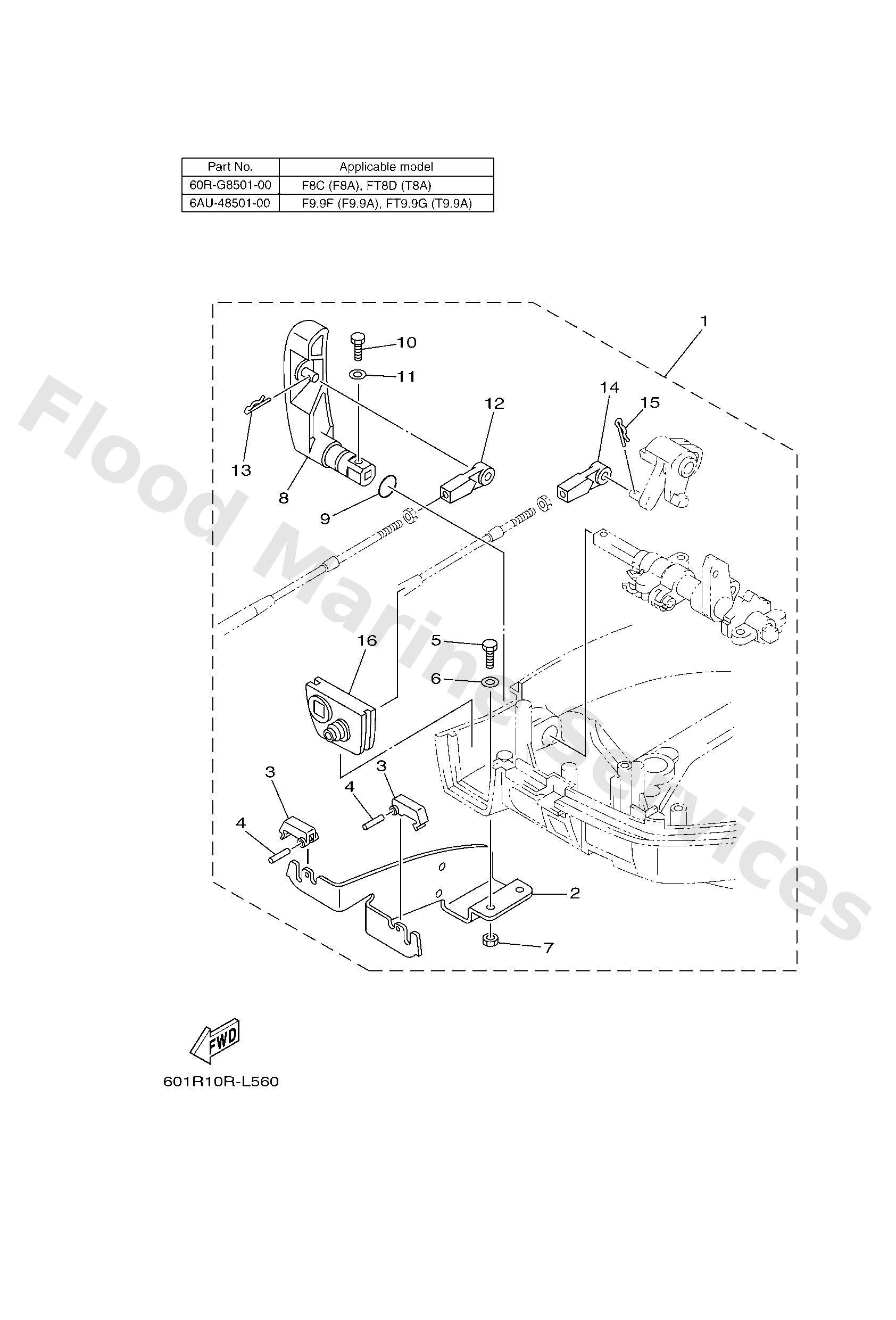

Diagram Reference: 1
Remote cont. attachment assembly.
Diagram Reference: 1
Bracket, remote control 1
Diagram Reference: 2
Clamp, cable
Diagram Reference: 3
Pin, spring
Diagram Reference: 4
Bolt(gh1)
Diagram Reference: 5
Washer, plain (646)
Diagram Reference: 6
Nut(661)
Diagram Reference: 7
Handle, gear shift
Diagram Reference: 8
Handle, gear shift
Diagram Reference: 8
O-ring(3ld)
Diagram Reference: 9
Bolt(6a1)
Diagram Reference: 10
Washer, plain (646)
Diagram Reference: 11
Cable end, remote control
Diagram Reference: 12
Clip 620436610000
Diagram Reference: 13
Grommet
Diagram Reference: 16
