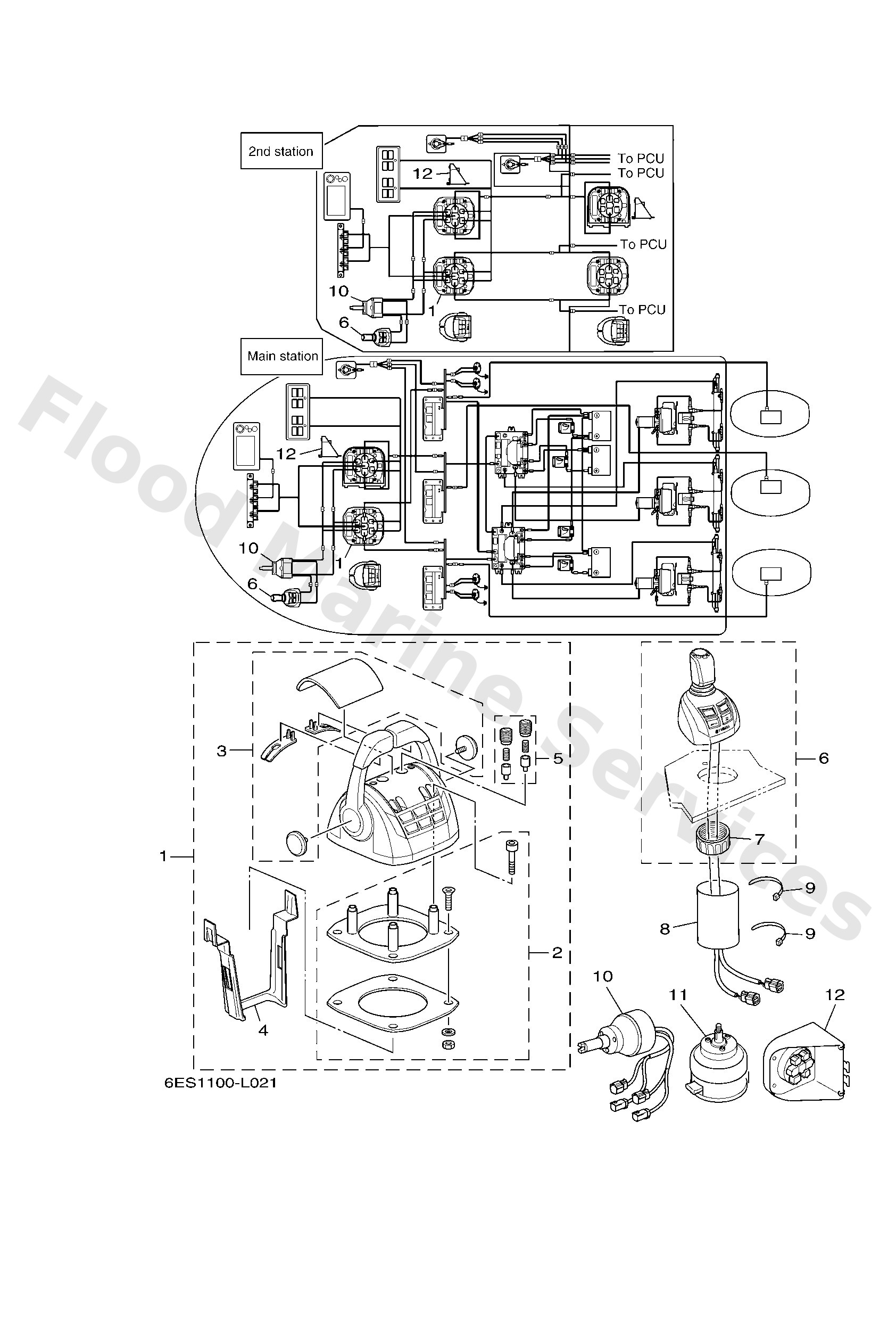

Diagram: REMOCON. & JOYSTICK (TRIPLE)

Diagram

Parts List

6ES4820701 (ASK TO MARINE DIV)
Remote Control assembly
Diagram Reference: 1
Get Part
6ES4829100
Attachment
Diagram Reference: 2
Get Part
6ES4811900
Cover set
Diagram Reference: 3
Get Part
6ES4835400
Set-plate, cable
Diagram Reference: 4
Get Part
6ES4823700
Adaptor set
Diagram Reference: 5
Get Part
6ES482A000 (ASK TO MARINE DIV)
-
Diagram Reference: 6
Get Part
6ES4815600
Nut 1
Diagram Reference: 7
Get Part
6ES8259900
Cover, connecter
Diagram Reference: 8
Get Part
9046514M66
Clamp
Diagram Reference: 9
Get Part
6ES615A000 (ASK TO MARINE DIV)
-
Diagram Reference: 10
Get Part
6ES6154A00
-
Diagram Reference: 11
Get Part
6ES8559000 (ASK TO MARINE DIV)
Center hcu (helm c
Diagram Reference: 12
Get Part
