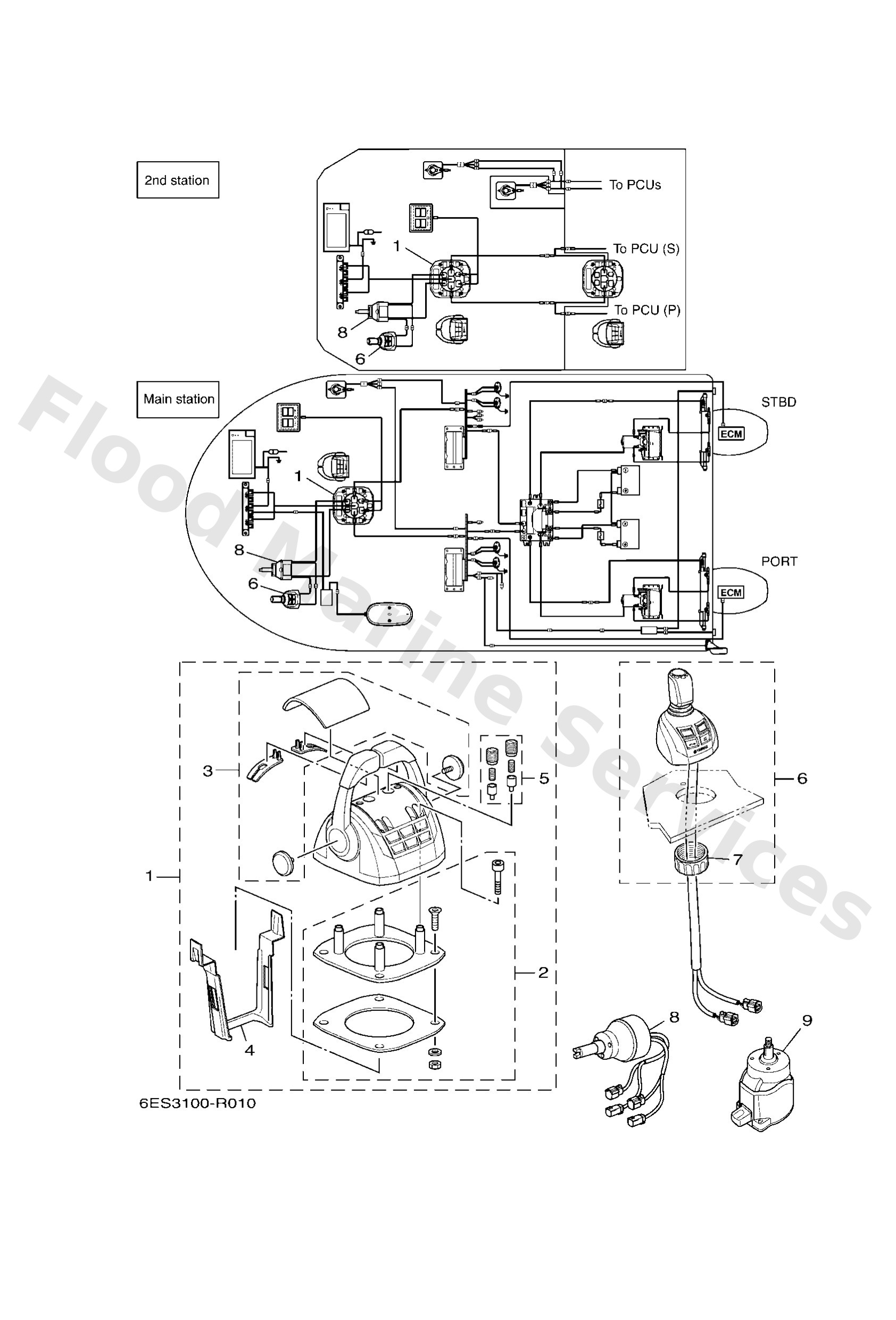

Diagram: REMOCON. & JOYSTICK (TWIN)

Diagram

Parts List

6ES4820702 (ASK TO MARINE DIV)

-

Diagram Reference: 1

6ES4829100

Attachment

Diagram Reference: 2

6ES4811900

Cover set

Diagram Reference: 3

6ES4835400

Set-plate, cable

Diagram Reference: 4

6ES4823700

Adaptor set

Diagram Reference: 5

6ES482A010 (ASK TO MARINE DIV)

-

Diagram Reference: 6

6ES4815600

Nut 1

Diagram Reference: 7

6ES615A000 (ASK TO MARINE DIV)

-

Diagram Reference: 8

6ES6154A10

-

Diagram Reference: 9
