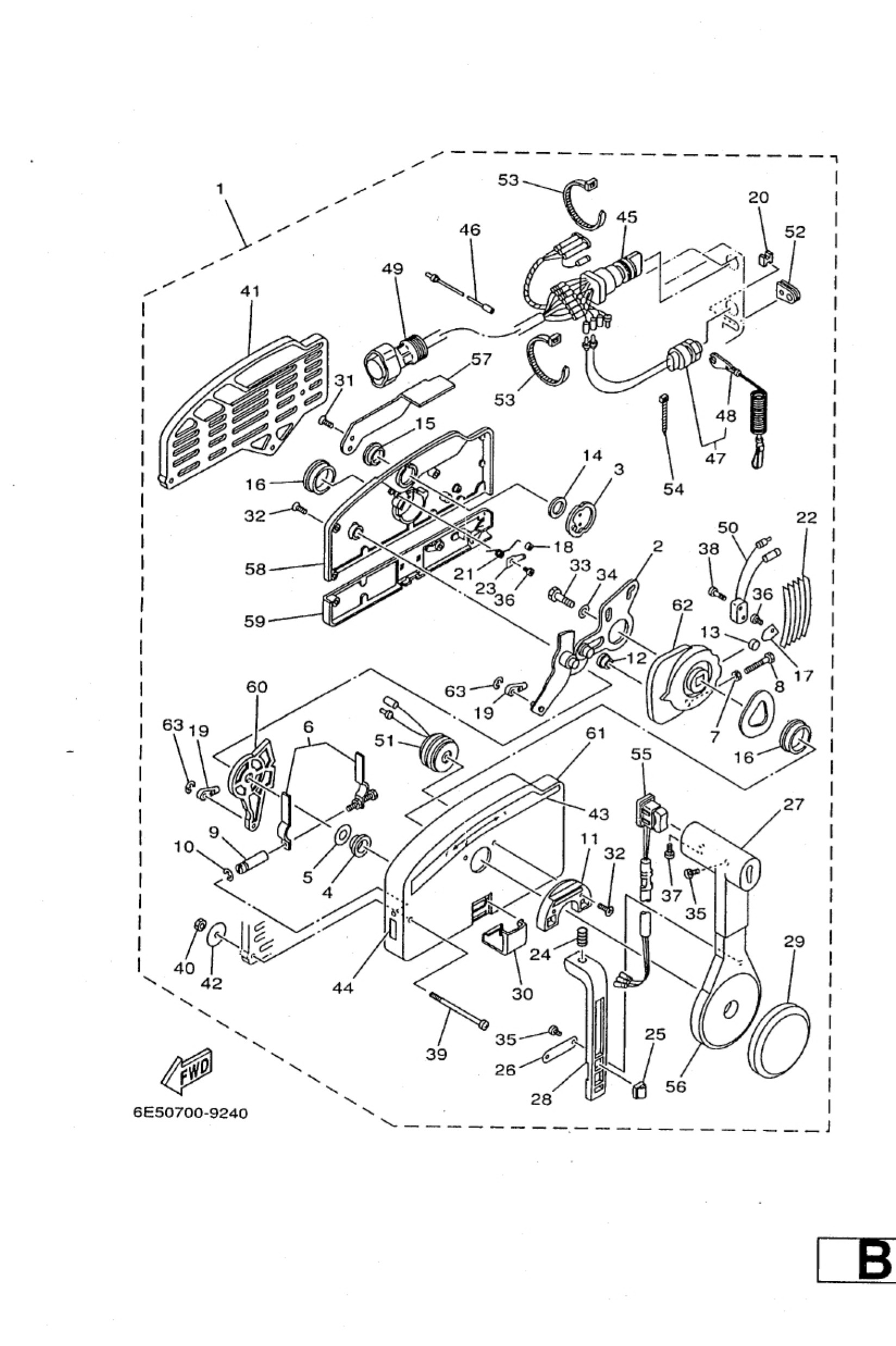

Diagram: REMOTE

Diagram

Parts List

7034822300
Lock, neutral
Diagram Reference: 28
Get Part
7034822500
Cover
Diagram Reference: 29
Get Part
7034821900
Cover, lead
Diagram Reference: 30
Get Part
7034828100
Screw, flat head
Diagram Reference: 31
Get Part
7034828200
Screw
Diagram Reference: 32
Get Part
970950803 (i)
Bolt, hexagon (fj1)
Diagram Reference: 33
Get Part
9299008600
Washer, plain (663)
Diagram Reference: 34
Get Part
9858004010
Screw, pan head (e56)
Diagram Reference: 35
Get Part
9858004006
Screw, pan head (7h3)
Diagram Reference: 36
Get Part
9858005010
Screw, pan head(62x)
Diagram Reference: 37
Get Part
98580-03015 (EEA)
Screw, pan head (n151)
Diagram Reference: 38
Get Part
7034829110
Screw
Diagram Reference: 39
Get Part
9538006600
Nut(661)
Diagram Reference: 40
Get Part
7034829310 (SINGLE)
Spacer, remote control
Diagram Reference: 41
Get Part
7014828700
Washer 1
Diagram Reference: 42
Get Part
70324821500
E
Diagram Reference: 43
Get Part
7024821700
Mark
Diagram Reference: 44
Get Part
7038251041
Main switch assembly
Diagram Reference: 45
Get Part
7038253100
Wire, lead
Diagram Reference: 46
Get Part
6888257501
Engine stop switch assembly
Diagram Reference: 47
Get Part
6826255600 (i)
©".
Diagram Reference: 48
Get Part
6888258A20 (Li5M (10P))
10p main harness mec 2m (6ft)
Diagram Reference: 49
Get Part
7038254000
Neutral switch assembly
Diagram Reference: 50
Get Part
7038338302
Buzzer
Diagram Reference: 51
Get Part
6E507009240 (GROMMET)
52 703-48284-00
Diagram Reference: 51
Get Part
7038259200
Band
Diagram Reference: 54
