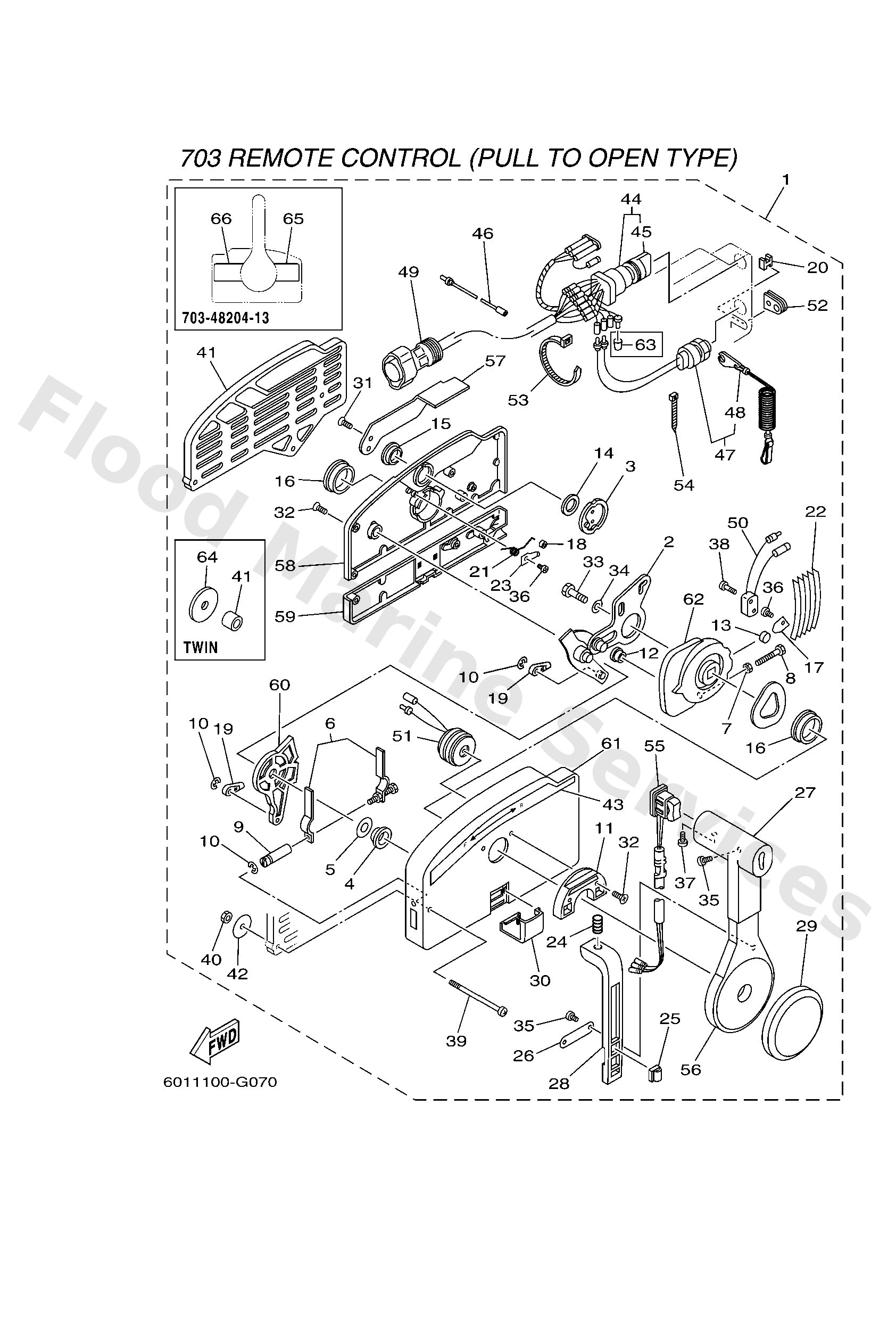

Parts List
Remote control assembly (10p)
Diagram Reference: 1
Remote contorol assembly
Diagram Reference: 1
Remote Control assembly (10P)
Diagram Reference: 1
Remote control assembly (10p, ptt)
Diagram Reference: 1
Remote control assembly (7p)
Diagram Reference: 1
Remote control assembly (7p)
Diagram Reference: 1
Arm, throttle
Diagram Reference: 2
Shaft, free accel.
Diagram Reference: 3
Bushing
Diagram Reference: 4
Spacer 3
Diagram Reference: 5
Throttle, friction
Diagram Reference: 6
Nut, hexagon (663)
Diagram Reference: 7
Bolt
Diagram Reference: 8
Shaft, Friction
Diagram Reference: 9
Circlip (701)
Diagram Reference: 10
Plate, lock
Diagram Reference: 11
Roller, cam
Diagram Reference: 12
Roller, free accel
Diagram Reference: 13
Washer, wave 3
Diagram Reference: 14
Bushing 3
Diagram Reference: 15
Bushing
Diagram Reference: 16
Retainer
Diagram Reference: 17
Roller, detent
Diagram Reference: 18
Cable end, remote control 2
Diagram Reference: 19
Anchor, cable
Diagram Reference: 20
Spring, free accel.
Diagram Reference: 21
Spring, detent
Diagram Reference: 22
Spacer 1
Diagram Reference: 23
Spring, neutral lock
Diagram Reference: 24
Clamp
Diagram Reference: 25
Plate, stopper
Diagram Reference: 26
Grip, control lever
Diagram Reference: 27
Grip, control lever
Diagram Reference: 27
Lock, neutral
Diagram Reference: 28
Cover
Diagram Reference: 29
Cover, lead
Diagram Reference: 30
Screw, flat head
Diagram Reference: 31
Screw
Diagram Reference: 32
Bolt, hexagon (fj1)
Diagram Reference: 33
Washer, plain (663)
Diagram Reference: 34
Screw, pan head (e56)
Diagram Reference: 35
Screw, pan head (7h3)
Diagram Reference: 36
Screw, pan head(62x)
Diagram Reference: 37
Screw, pan head (n151)
Diagram Reference: 38
Screw
Diagram Reference: 39
Nut(661)
Diagram Reference: 40
Spacer, remote control
Diagram Reference: 41
Spacer, remote control
Diagram Reference: 41
Washer 1
Diagram Reference: 42
Graphic
Diagram Reference: 43
Main switch assembly
Diagram Reference: 44
Main switch assembly
Diagram Reference: 44
Cap, key
Diagram Reference: 45
Wire, lead
Diagram Reference: 46
Engine stop switch assembly
Diagram Reference: 47
Lanyard, stop switch
Diagram Reference: 48
Extension, wire harness
Diagram Reference: 49
10p main harness mec 2m (6ft)
Diagram Reference: 49
Neutral switch assembly
Diagram Reference: 50
Buzzer
Diagram Reference: 51
Grommet
Diagram Reference: 52
Grommet
Diagram Reference: 52
Band
Diagram Reference: 53
Band
Diagram Reference: 54
Cover, control lever
Diagram Reference: 55
Trim & tilt switch assembly
Diagram Reference: 55
Trim & tilt switch assembly
Diagram Reference: 55
Grip
Diagram Reference: 56
Knob, free accel
Diagram Reference: 57
Rear housing
Diagram Reference: 58
Back, panel
Diagram Reference: 59
Arm, shift
Diagram Reference: 60
Housing,1
Diagram Reference: 61
Drive gear
Diagram Reference: 62
Cap
Diagram Reference: 63
Washer
Diagram Reference: 64
Graphic 1
Diagram Reference: 65
Graphic 2
Diagram Reference: 66
