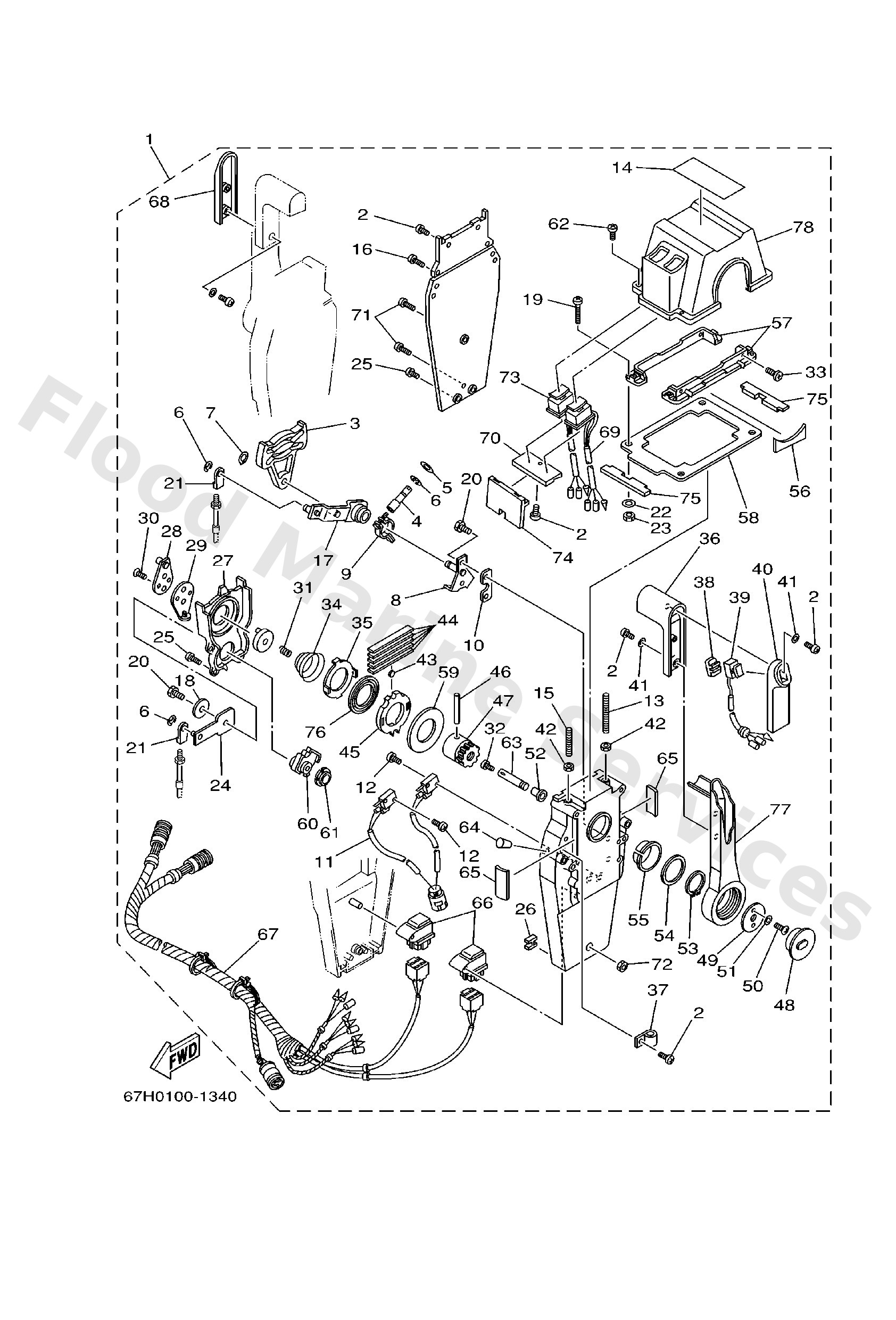

Parts List
Remote Control Assy
Diagram Reference: 1
Screw, Pan Head
Diagram Reference: 2
Shaft, Friction
Diagram Reference: 4
Spacer
Diagram Reference: 5
Circlip
Diagram Reference: 6
Throttle, Friction
Diagram Reference: 9
Spacer
Diagram Reference: 10
Neutral switch assembly
Diagram Reference: 11
Screw 3
Diagram Reference: 12
Screw
Diagram Reference: 13
Graphic 1
Diagram Reference: 14
Screw
Diagram Reference: 15
Screw, Pan Head
Diagram Reference: 16
Washer 1
Diagram Reference: 18
Screw
Diagram Reference: 19
Bolt
Diagram Reference: 20
Cable End, Remote Control 2
Diagram Reference: 21
Washer
Diagram Reference: 22
Nut
Diagram Reference: 23
Arm, Shift
Diagram Reference: 24
Screw 1
Diagram Reference: 25
Anchor, Cable
Diagram Reference: 26
Housing, Gear
Diagram Reference: 27
Arm, Drive
Diagram Reference: 28
Screw, Flat Head
Diagram Reference: 30
Spring 1
Diagram Reference: 31
Screw, Pan Head
Diagram Reference: 32
Screw, Flat Head
Diagram Reference: 33
Spring, Free Accel.
Diagram Reference: 34
Plate, Lock
Diagram Reference: 35
Grip, Control Lever
Diagram Reference: 36
Holder, Switch
Diagram Reference: 38
Trim & tilt switch assembly
Diagram Reference: 39
Grip, Control Lever
Diagram Reference: 40
Washer, Internal Tooth
Diagram Reference: 41
Nut, Hexagon
Diagram Reference: 42
Roller, Free Accel.
Diagram Reference: 43
Spring, Detent
Diagram Reference: 44
Gear 1
Diagram Reference: 45
Pin 2
Diagram Reference: 46
Shaft, Drive
Diagram Reference: 47
Cover
Diagram Reference: 48
Washer 2
Diagram Reference: 49
Screw, Pan Head
Diagram Reference: 50
Washer, Internal Tooth
Diagram Reference: 51
Circlip 2
Diagram Reference: 53
Washer 3
Diagram Reference: 54
Bushing 1
Diagram Reference: 55
Cover, Lead
Diagram Reference: 56
Plate, Stopper 2
Diagram Reference: 57
Grommet
Diagram Reference: 58
Washer 2
Diagram Reference: 59
Gear 2
Diagram Reference: 60
Bushing
Diagram Reference: 61
Screw
Diagram Reference: 62
Shaft, Free Accel.
Diagram Reference: 63
Plug
Diagram Reference: 64
Grommet
Diagram Reference: 65
Relay assembly
Diagram Reference: 66
Wire Harness Assy
Diagram Reference: 67
Grip, control lever 2
Diagram Reference: 68
Trim & tilt switch assembly
Diagram Reference: 69
Holder, switch
Diagram Reference: 70
Screw 2
Diagram Reference: 71
Nut 1
Diagram Reference: 72
Trim & tilt switch assembly
Diagram Reference: 73
Grommet 2
Diagram Reference: 74
Grommet 3
Diagram Reference: 75
Plate, Shift
Diagram Reference: 76
Lever, Control
Diagram Reference: 77
Cover
Diagram Reference: 78
