Parts List

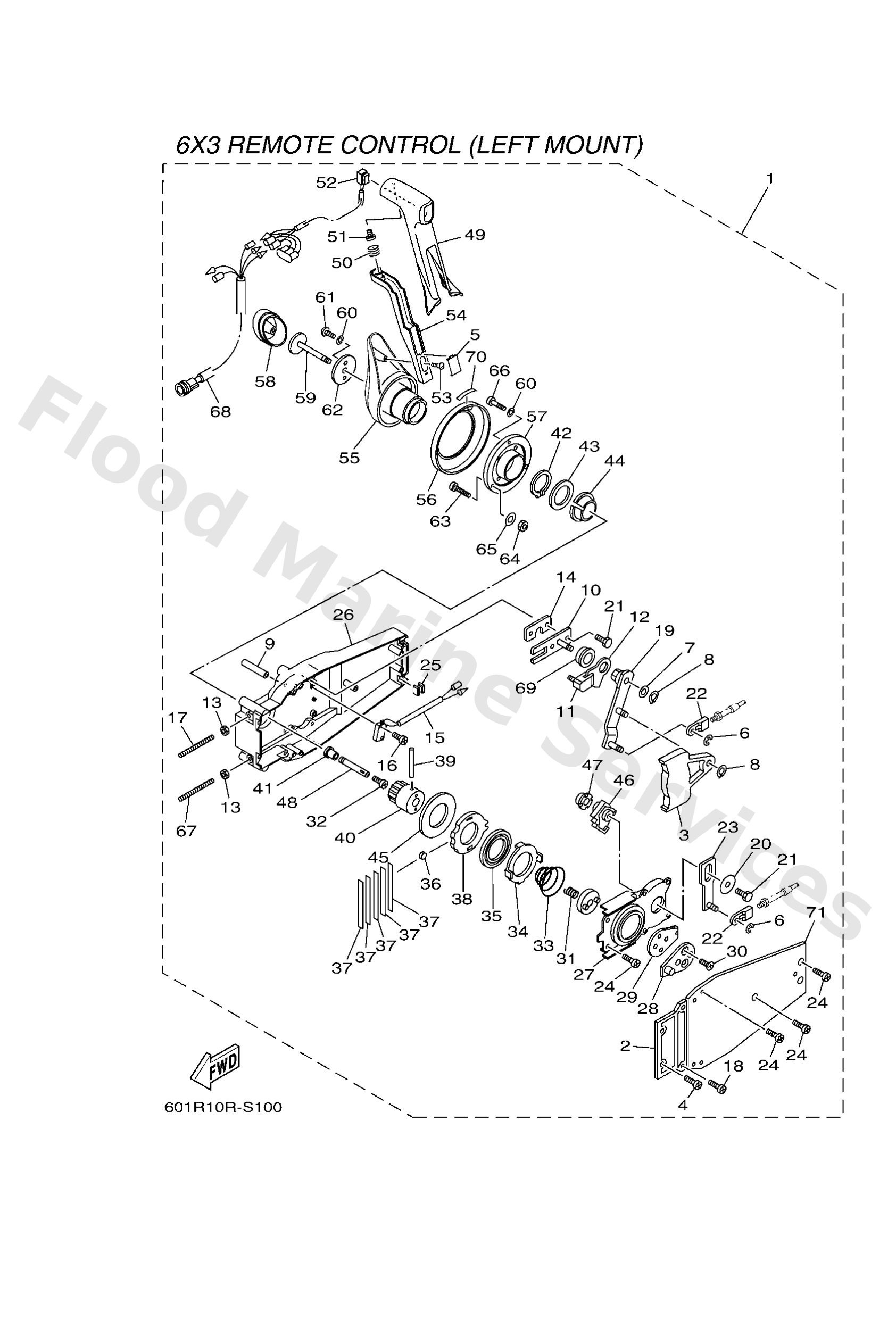

6x3 single mec flush rc left
Diagram Reference: 1
Back plate 1
Diagram Reference: 2
Plate, cam
Diagram Reference: 3
Screw, pan head(6b0)
Diagram Reference: 4
Cap, lock arm
Diagram Reference: 5
Circlip (701)
Diagram Reference: 6
Washer, plate
Diagram Reference: 7
Circlip 1
Diagram Reference: 8
Shaft, friction
Diagram Reference: 9
Throttle, friction
Diagram Reference: 11
Plate, adjust
Diagram Reference: 12
Nut(661)
Diagram Reference: 13
Spacer 2
Diagram Reference: 14
Neutral switch assembly
Diagram Reference: 15
Screw 3
Diagram Reference: 16
Screw
Diagram Reference: 17
Screw, panhead (a93)
Diagram Reference: 18
Washer 1
Diagram Reference: 20
Bolt (fj0)
Diagram Reference: 21
Cable end, remote control 2
Diagram Reference: 22
Arm, shift
Diagram Reference: 23
Screw 1
Diagram Reference: 24
Anchor, cable
Diagram Reference: 25
Housing,1
Diagram Reference: 26
Housing, gear
Diagram Reference: 27
Arm, drive
Diagram Reference: 28
Screw flat head
Diagram Reference: 30
Spring 1
Diagram Reference: 31
Screw, pan head (7h3)
Diagram Reference: 32
Spring, free accel.
Diagram Reference: 33
Plate, lock
Diagram Reference: 34
Plate, shift
Diagram Reference: 35
Roller, free accel
Diagram Reference: 36
Spring, detent
Diagram Reference: 37
Gear 1
Diagram Reference: 38
Pin 2
Diagram Reference: 39
Shaft, Drive
Diagram Reference: 40
Bushing 4
Diagram Reference: 41
Circlip 2
Diagram Reference: 42
Washer 3
Diagram Reference: 43
Bushing 1
Diagram Reference: 44
Washer 2
Diagram Reference: 45
Gear 2
Diagram Reference: 46
Bushing
Diagram Reference: 47
Shaft, Free Accel.
Diagram Reference: 48
Grip, control lever
Diagram Reference: 49
Spring, neutral lock
Diagram Reference: 50
Screw, pan head (7g3)
Diagram Reference: 51
Trim & tilt switch assembly
Diagram Reference: 52
Stopper, throttle adjust
Diagram Reference: 53
Lock, neutral
Diagram Reference: 54
Lever, control
Diagram Reference: 55
Cover
Diagram Reference: 56
Body, remote control 1
Diagram Reference: 57
Cover
Diagram Reference: 58
Plunger
Diagram Reference: 59
Washer, tooth
Diagram Reference: 60
Screw
Diagram Reference: 61
Washer 3
Diagram Reference: 62
Screw, pan head(6h4)
Diagram Reference: 63
Screw 2
Diagram Reference: 63
Nut 1
Diagram Reference: 64
Washer 1
Diagram Reference: 65
Screw 3
Diagram Reference: 66
Screw1
Diagram Reference: 67
Extension, wire lead
Diagram Reference: 68
Bushing
Diagram Reference: 69
Indicator, shift
Diagram Reference: 70
Back plate 2
Diagram Reference: 71
