Parts List

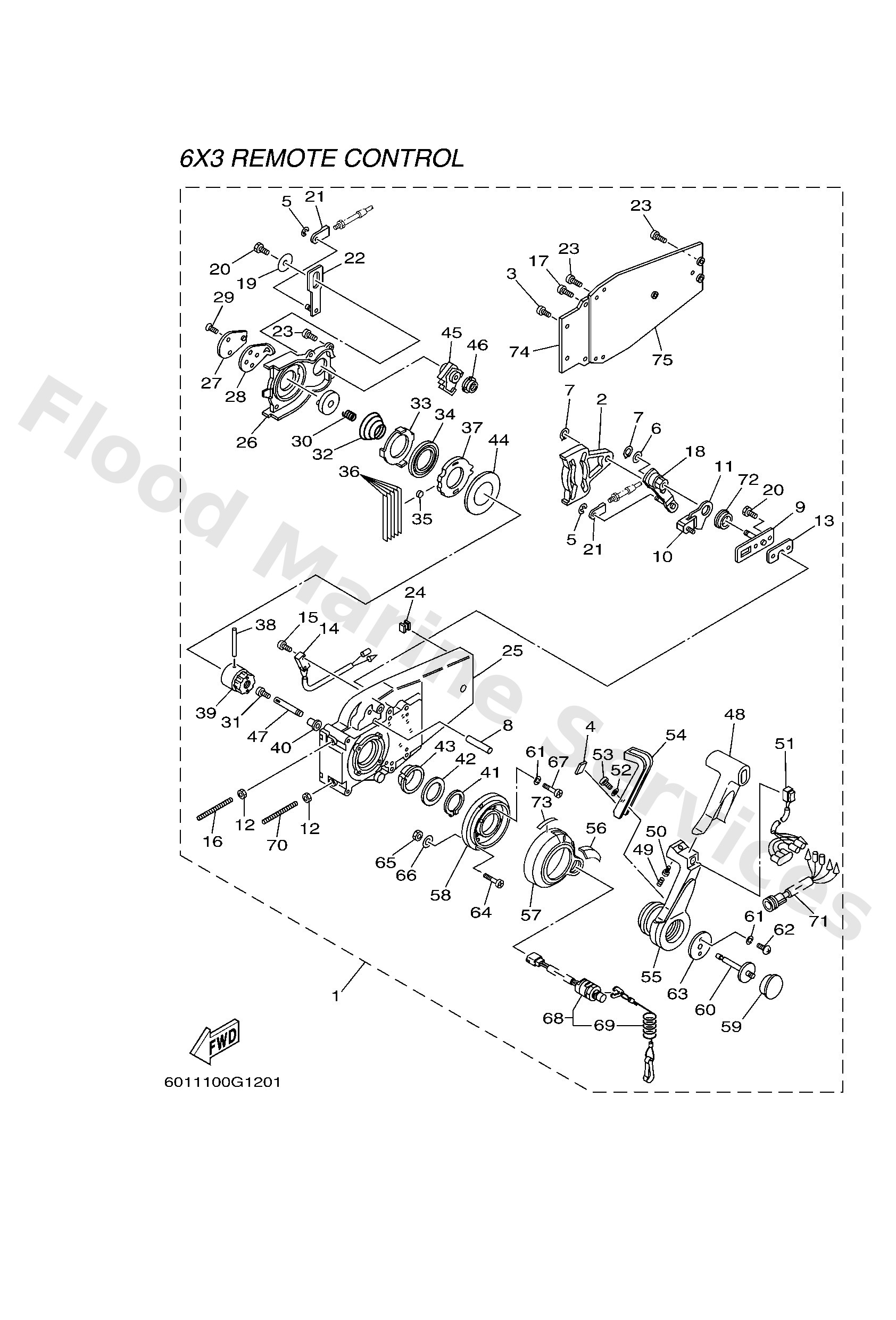

6x3 single mec flush rc right
Diagram Reference: 1
Plate, cam
Diagram Reference: 2
Screw, pan head(6b0)
Diagram Reference: 3
Cap, lock arm
Diagram Reference: 4
Circlip (701)
Diagram Reference: 5
Washer, plate
Diagram Reference: 6
Circlip 1
Diagram Reference: 7
Shaft, friction
Diagram Reference: 8
Throttle, friction
Diagram Reference: 10
Plate, adjust
Diagram Reference: 11
Nut(661)
Diagram Reference: 12
Spacer 2
Diagram Reference: 13
Neutral switch assembly
Diagram Reference: 14
Screw, pan head (n151)
Diagram Reference: 15
Screw
Diagram Reference: 16
Screw, panhead (a93)
Diagram Reference: 17
Washer 1
Diagram Reference: 19
Bolt (fj0)
Diagram Reference: 20
Cable end, remote control 2
Diagram Reference: 21
Arm, shift
Diagram Reference: 22
Screw 1
Diagram Reference: 23
Anchor, cable
Diagram Reference: 24
Housing,1
Diagram Reference: 25
Housing, gear
Diagram Reference: 26
Arm, drive
Diagram Reference: 27
Screw flat head
Diagram Reference: 29
Spring 1
Diagram Reference: 30
Screw, pan head (7h3)
Diagram Reference: 31
Spring, free accel.
Diagram Reference: 32
Plate, lock
Diagram Reference: 33
Plate, shift
Diagram Reference: 34
Roller, free accel
Diagram Reference: 35
Spring, detent
Diagram Reference: 36
Gear 1
Diagram Reference: 37
Pin 2
Diagram Reference: 38
Shaft, Drive
Diagram Reference: 39
Bushing 4
Diagram Reference: 40
Circlip 2
Diagram Reference: 41
Washer 3
Diagram Reference: 42
Bushing 1
Diagram Reference: 43
Washer 2
Diagram Reference: 44
Gear 2
Diagram Reference: 45
Bushing
Diagram Reference: 46
Shaft, Free Accel.
Diagram Reference: 47
Grip, control lever
Diagram Reference: 48
Spring, neutral lock
Diagram Reference: 49
Screw, pan head (7g3)
Diagram Reference: 50
Trim & tilt switch assembly
Diagram Reference: 51
Washer
Diagram Reference: 52
Screw 1
Diagram Reference: 53
Lock, neutral
Diagram Reference: 54
Lever, control
Diagram Reference: 55
Cover
Diagram Reference: 56
Cover
Diagram Reference: 57
Body, remote control 1
Diagram Reference: 58
Cover
Diagram Reference: 59
Plunger
Diagram Reference: 60
Washer, tooth
Diagram Reference: 61
Screw
Diagram Reference: 62
Washer 3
Diagram Reference: 63
Screw, pan head(6h4)
Diagram Reference: 64
Screw 2
Diagram Reference: 64
Nut 1
Diagram Reference: 65
Washer 1
Diagram Reference: 66
Screw 3
Diagram Reference: 67
Engine stop switch assembly
Diagram Reference: 68
Lanyard, stop switch
Diagram Reference: 69
Screw1
Diagram Reference: 70
Extension, wire lead
Diagram Reference: 71
Bushing
Diagram Reference: 72
Indicator, shift
Diagram Reference: 73
Back plate 1
Diagram Reference: 74
Back plate 2
Diagram Reference: 75
