Parts List

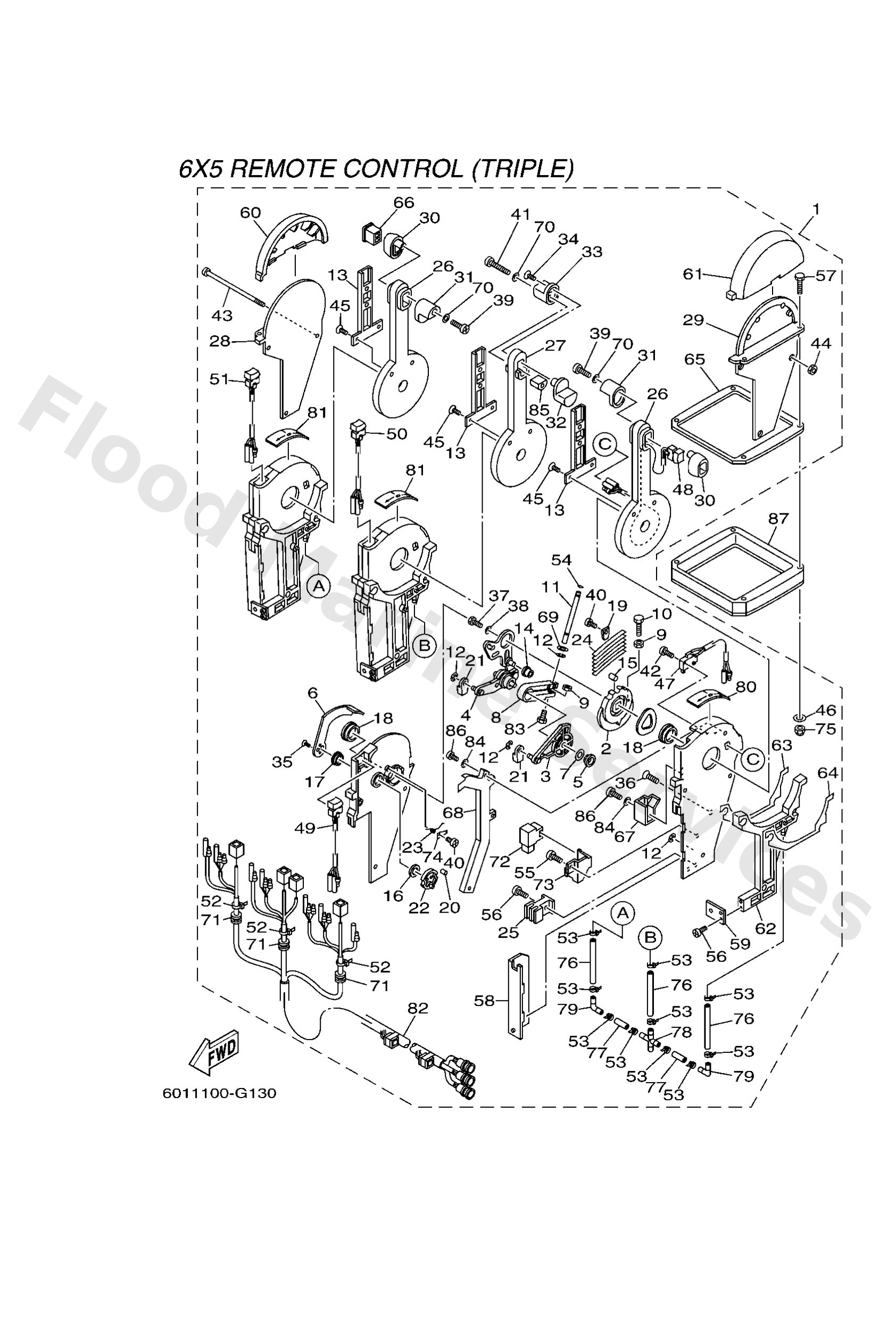

Remote Control assembly
Diagram Reference: 1
Gear
Diagram Reference: 2
Arm, shift
Diagram Reference: 3
Arm, throttle
Diagram Reference: 4
Bushing
Diagram Reference: 5
Knob, free accel.
Diagram Reference: 6
Spacer 3
Diagram Reference: 7
Friction, throttle
Diagram Reference: 8
Nut, hexagon (663)
Diagram Reference: 9
Bolt
Diagram Reference: 10
Shaft, friction
Diagram Reference: 11
Circlip (701)
Diagram Reference: 12
Cover, control lever
Diagram Reference: 13
Roller, cam
Diagram Reference: 14
Roller, free accel
Diagram Reference: 15
Washer, wave 3
Diagram Reference: 16
Bushing 3
Diagram Reference: 17
Bushing
Diagram Reference: 18
Retainer
Diagram Reference: 19
Roller, detent
Diagram Reference: 20
Cable end, remote control 2
Diagram Reference: 21
Shaft, free accel.
Diagram Reference: 22
Spring, free accel.
Diagram Reference: 23
Spring, detent
Diagram Reference: 24
Anchor, cable
Diagram Reference: 25
Lever, control
Diagram Reference: 26
Lever, control
Diagram Reference: 27
Plate, stopper 2
Diagram Reference: 28
Plate, stopper 2
Diagram Reference: 29
Grip, Control Lever
Diagram Reference: 31
Grip, Control Lever
Diagram Reference: 33
Screw 1
Diagram Reference: 34
Screw 2
Diagram Reference: 35
Screw 3
Diagram Reference: 36
Bolt, hexagon (fj1)
Diagram Reference: 37
Ybs66-8 washer, plain
Diagram Reference: 38
Screw 1
Diagram Reference: 39
Screw, pan head (7h3)
Diagram Reference: 40
Screw 1
Diagram Reference: 41
Screw 3
Diagram Reference: 42
Bolt set
Diagram Reference: 43
Nut 1
Diagram Reference: 44
Screw, flat head
Diagram Reference: 45
Washer 1
Diagram Reference: 46
Neutral switch assembly
Diagram Reference: 47
Trim & tilt switch assembly
Diagram Reference: 48
Trim & tilt switch assembly
Diagram Reference: 49
Trim & tilt switch assembly
Diagram Reference: 50
Trim & tilt switch assembly
Diagram Reference: 51
Band
Diagram Reference: 52
Band, clamp
Diagram Reference: 53
Seal, rubber
Diagram Reference: 54
Screw, pan head(62x)
Diagram Reference: 55
Screw,pan head (646)
Diagram Reference: 56
Screw,panhead (eg9)
Diagram Reference: 57
Screw, tapping
Diagram Reference: 57
Back plate 2
Diagram Reference: 58
Set-plate, cable
Diagram Reference: 59
Cover
Diagram Reference: 60
Cover
Diagram Reference: 61
Spacer
Diagram Reference: 62
Pad
Diagram Reference: 63
Pad
Diagram Reference: 64
Grommet
Diagram Reference: 65
Grip, Control Lever
Diagram Reference: 66
Cover, lead
Diagram Reference: 67
Cover
Diagram Reference: 68
Washer, plain (663)
Diagram Reference: 69
Washer, tooth
Diagram Reference: 70
Boot
Diagram Reference: 71
Relay assembly
Diagram Reference: 72
Holder, switch
Diagram Reference: 73
Spacer 1
Diagram Reference: 74
Nut(661)
Diagram Reference: 75
Tube
Diagram Reference: 76
Tube
Diagram Reference: 77
Connector
Diagram Reference: 78
Connector
Diagram Reference: 79
Graphic
Diagram Reference: 80
Graphic
Diagram Reference: 81
Wire Harness assembly
Diagram Reference: 82
Ybs66-5 washer, plain
Diagram Reference: 84
Grip, control lever
Diagram Reference: 85
item_description
Diagram Reference: 87
