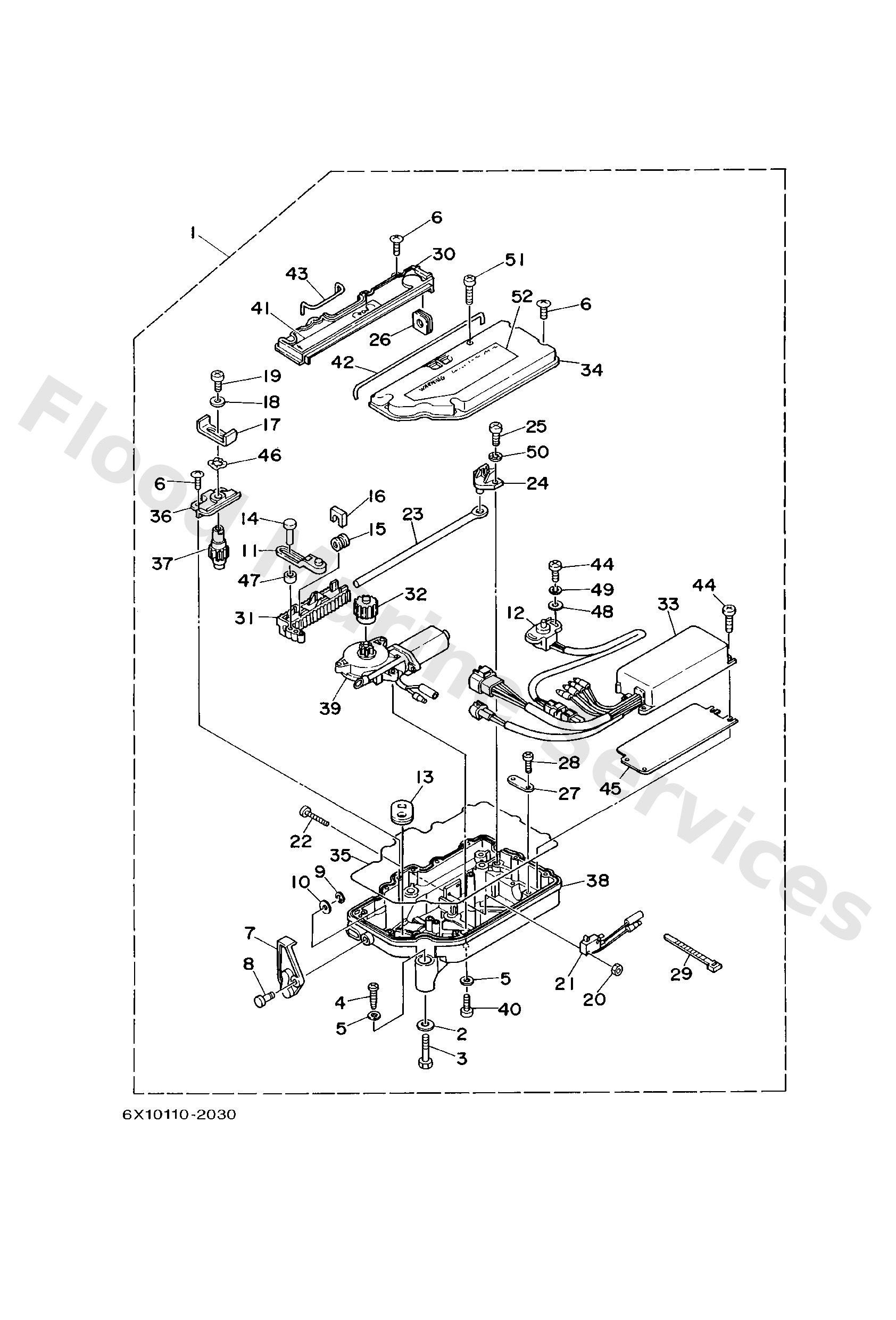

Diagram: REMOTE CONTROL ASSY1 (ACTUATER)
Parts List
Actuater (Dual Station)
Diagram Reference: 1
Washer, plain (663)
Diagram Reference: 2
Screw 2
Diagram Reference: 4
Washer, Plain
Diagram Reference: 5
Circlip (701)
Diagram Reference: 9
Spacer
Diagram Reference: 10
Throttle sensor assembly
Diagram Reference: 12
Grommet
Diagram Reference: 13
Cable, end
Diagram Reference: 15
Set-plate, cable
Diagram Reference: 16
Washer 1
Diagram Reference: 18
Screw (M5X0.8X12)
Diagram Reference: 19
Nut (6g8)
Diagram Reference: 20
Neutral switch assembly
Diagram Reference: 21
Screw (M3X0.5X20)
Diagram Reference: 22
Shaft 1
Diagram Reference: 23
Plate, Shift
Diagram Reference: 24
Screw (M6X1.0X25)
Diagram Reference: 25
Grommet 2
Diagram Reference: 26
Screw (M5X10)
Diagram Reference: 28
Band
Diagram Reference: 29
Cover, Control Lever
Diagram Reference: 30
Gear
Diagram Reference: 31
Gear 2
Diagram Reference: 32
Control Unit assembly
Diagram Reference: 33
Bush, Rubber
Diagram Reference: 35
Cap
Diagram Reference: 36
Housing,1
Diagram Reference: 38
Motor assembly
Diagram Reference: 39
Screw (M6X1.0X35)
Diagram Reference: 40
Bush, Rubber
Diagram Reference: 42
Bush, Rubber
Diagram Reference: 43
Back Plate 2
Diagram Reference: 45
Washer, Wave
Diagram Reference: 46
Spacer
Diagram Reference: 47
Ybs66-5 washer, plain
Diagram Reference: 48
Ybs67-5 washer, spring
Diagram Reference: 49
Washer, tooth
Diagram Reference: 50
