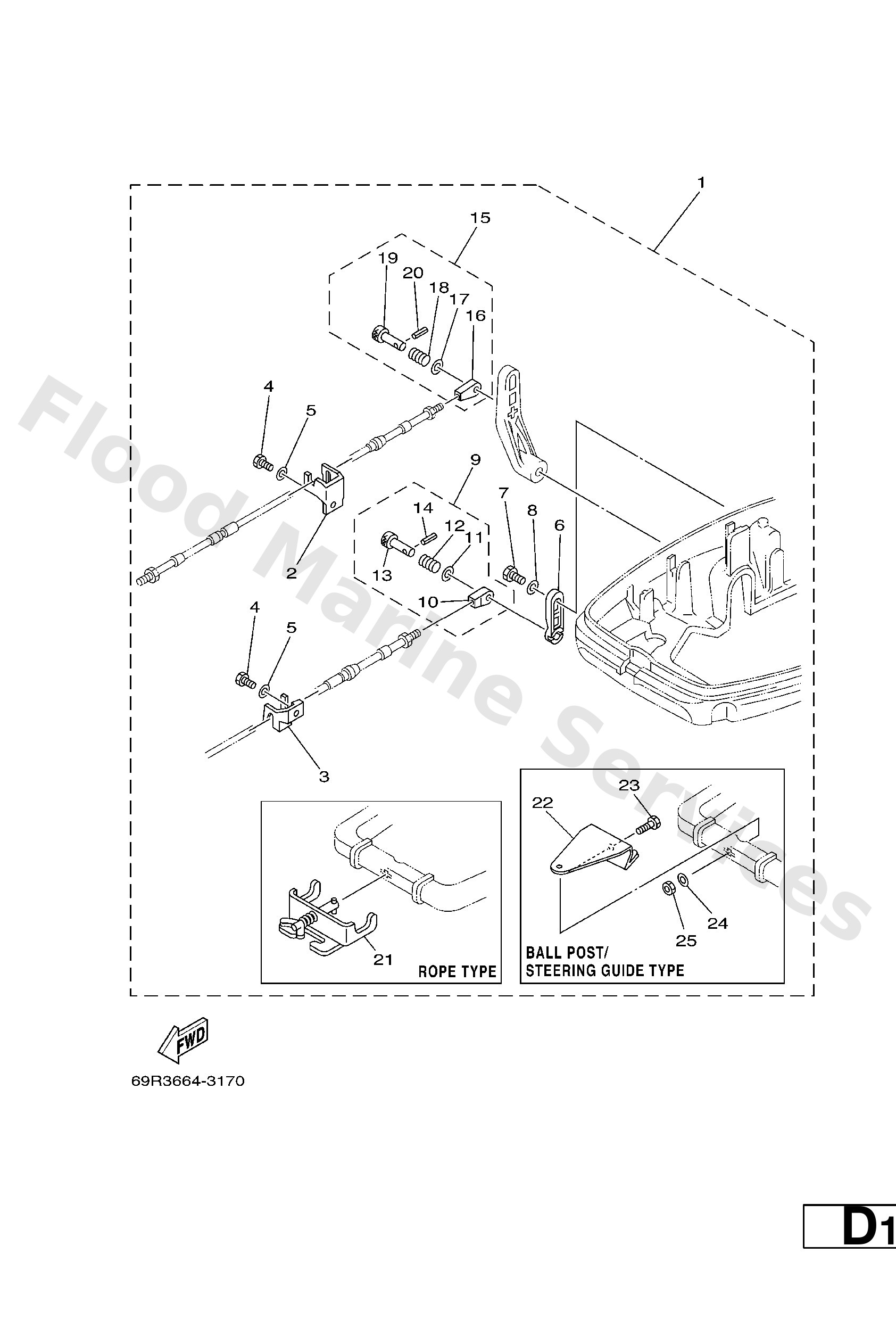

Diagram: REMOTE CONTROL ATTACHMENT

Diagram

Parts List

689−48501−21−4D (AP BALL POST/)

Remote cont. attachment assembly.

Diagram Reference: 1

689−48501−01−4D (AP ROPE TYPE)

Remote cont. attachment assembly.

Diagram Reference: 1

689−48531−50

Bracket, remote control 1

Diagram Reference: 2

689−48532−50

Bracket, remote control 2

Diagram Reference: 3

97095−06016

Bolt, hexagon deep recess

Diagram Reference: 4

92995−06600

Washer, plain (646)

Diagram Reference: 5

648−48534−50−4D

Throttle lever, control

Diagram Reference: 6

97095−06012

Bolt(gh1)

Diagram Reference: 7

648−48340−50

Cable end assembly

Diagram Reference: 9

617−48346−90

Cable end, remote control

Diagram Reference: 10

92990−08600

Washer, plain (663)

Diagram Reference: 11

90501−10264

Spring 6174833290

Diagram Reference: 12

617−48361−91

Hook, cable

Diagram Reference: 13

91690−30012

Pin, spring

Diagram Reference: 14

648−48330−50

Cable end assembly

Diagram Reference: 15

648−48346−50

Cable,end remote control 3

Diagram Reference: 16

90501−10071

Spring 6044833200

Diagram Reference: 18

617−48331−91

Hook, cable

Diagram Reference: 19

700−48510−12 (ROPE TYPE)

Hook steering assembly

Diagram Reference: 21

689−48511−01 (BALL POST/)

Hook, steering

Diagram Reference: 22

97075−10040 (BALL POST/)

Bolt, hexagon deep recess

Diagram Reference: 23

92990−10600 (BALL POST/)

Washer, plate

Diagram Reference: 24

90185−10051 (BALL POST/)

Nut, self-locking

Diagram Reference: 25
