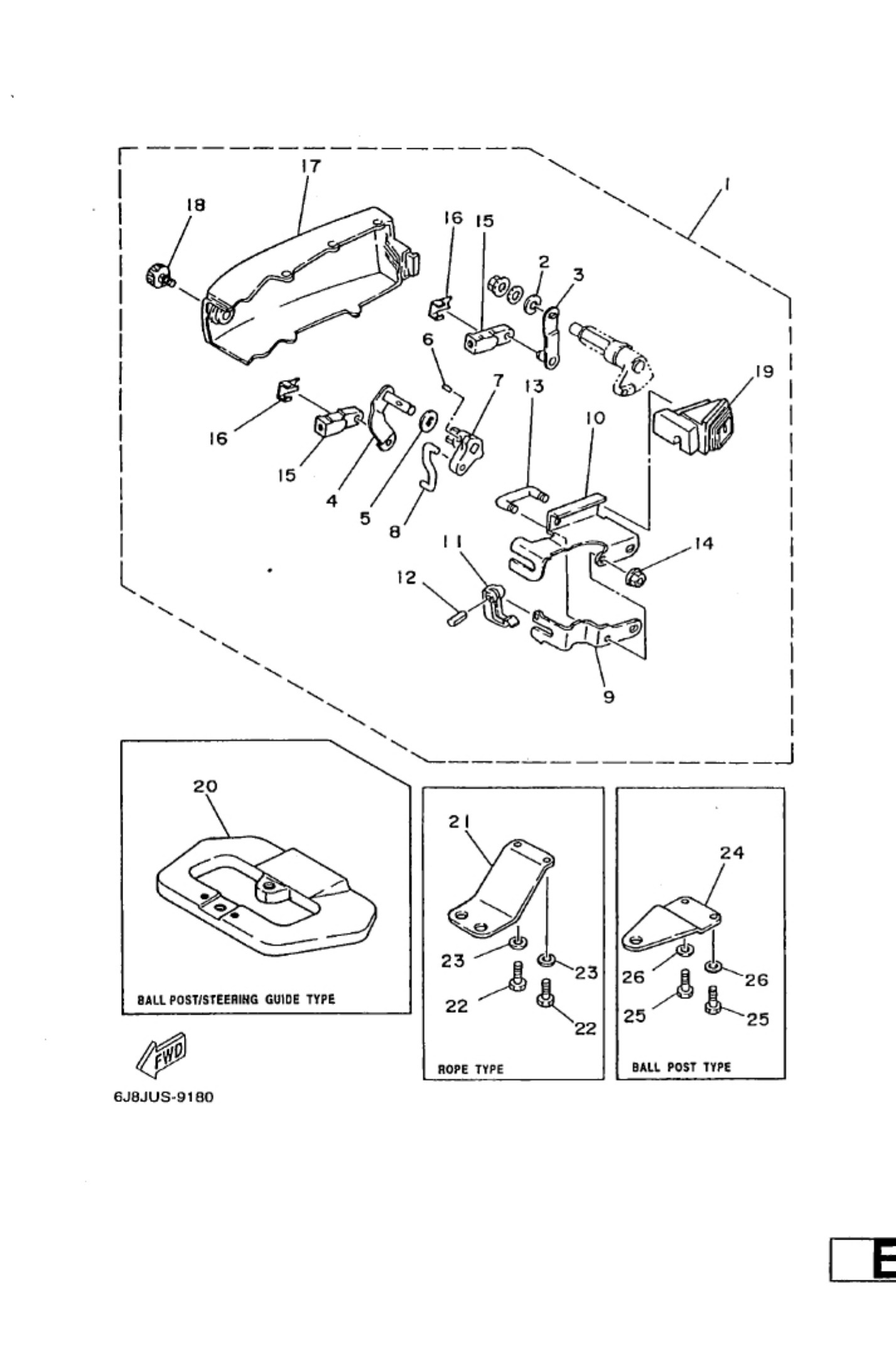

Diagram: REMOTE CONTROL ATTACHMENT

Diagram

Parts List

6J84850111 (| tf um)
Attachment kit
Diagram Reference: 1
Get Part
6J848501034D ([uA)
Remocon attachment assembly
Diagram Reference: 1
Get Part
9209008100 (IRIE!)
Washer, Spring
Diagram Reference: 2
Get Part
6J84853400 (IRIEIE)
Throttle lever, control
Diagram Reference: 3
Get Part
6J84851401 ([IRIRIE)
Lever, Shiftcontrol
Diagram Reference: 4
Get Part
9169030316 (IRIE)
Pin, spring
Diagram Reference: 6
Get Part
6J84417302 ([IRIE)
Lever, shift control
Diagram Reference: 7
Get Part
6824853850 (IRIE!)
Clamp, cable
Diagram Reference: 11
Get Part
9169030012 (HRIRIR)
Pin, spring
Diagram Reference: 12
Get Part
9010906M29
Bolt(6j8)
Diagram Reference: 13
Get Part
9017906M24
Nut(6j8)
Diagram Reference: 14
Get Part
6G82636400 (2| 2) 2| 2)
End, wire 2
Diagram Reference: 16
Get Part
6J84272351
Cover, bottom (dbn:gray)
Diagram Reference: 17
Get Part
6J84284600
Screw
Diagram Reference: 18
Get Part
6J84272410
Grommet
Diagram Reference: 19
Get Part
9709506016 (2| 2| 2f 2)
Bolt, hexagon deep recess
Diagram Reference: 22
Get Part
9299006600 (2| 2| 2f 2)
Washer, plain (646)
Diagram Reference: 23
Get Part
6G84851110
Hook, steering
Diagram Reference: 24
