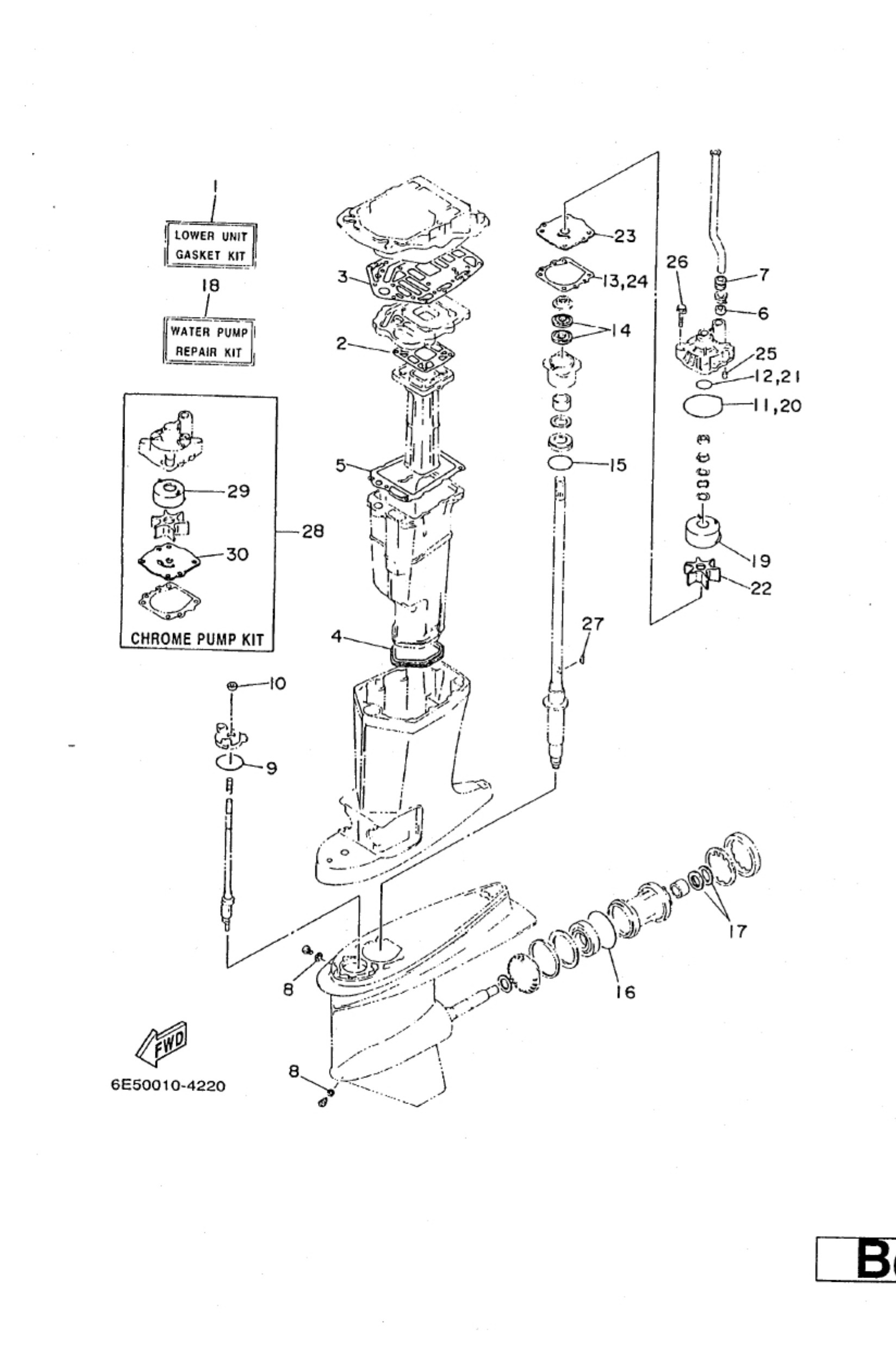

Diagram: REPAIR
Parts List
Gasket, exhaust manifold
Diagram Reference: 1
Gasket, upper casing
Diagram Reference: 1
Gasket, muffler
Diagram Reference: 1
Gasket, exhaust manifold
Diagram Reference: 1
Damper, water seal 1
Diagram Reference: 1
Damper, water seal 2
Diagram Reference: 1
Gasket kit, lower unit
Diagram Reference: 1
Gasket
Diagram Reference: 8
O-ring(47x)
Diagram Reference: 9
Oil seal
Diagram Reference: 10
O-ring (6g8)
Diagram Reference: 12
Gasket,water pump
Diagram Reference: 13
Oil seal (6e5)
Diagram Reference: 14
O-ring (70e)
Diagram Reference: 15
Oil seal (6e5)
Diagram Reference: 17
Water Pump Repair Kit
Diagram Reference: 18
Insert, cartridge
Diagram Reference: 19
O-ring (6e5)
Diagram Reference: 20
Impeller
Diagram Reference: 22
Outer plate, cartridge
Diagram Reference: 23
24 Bes5-44315-A0
Diagram Reference: 23
Pin, dowel (614)
Diagram Reference: 25
Key, Woodruff
Diagram Reference: 27
