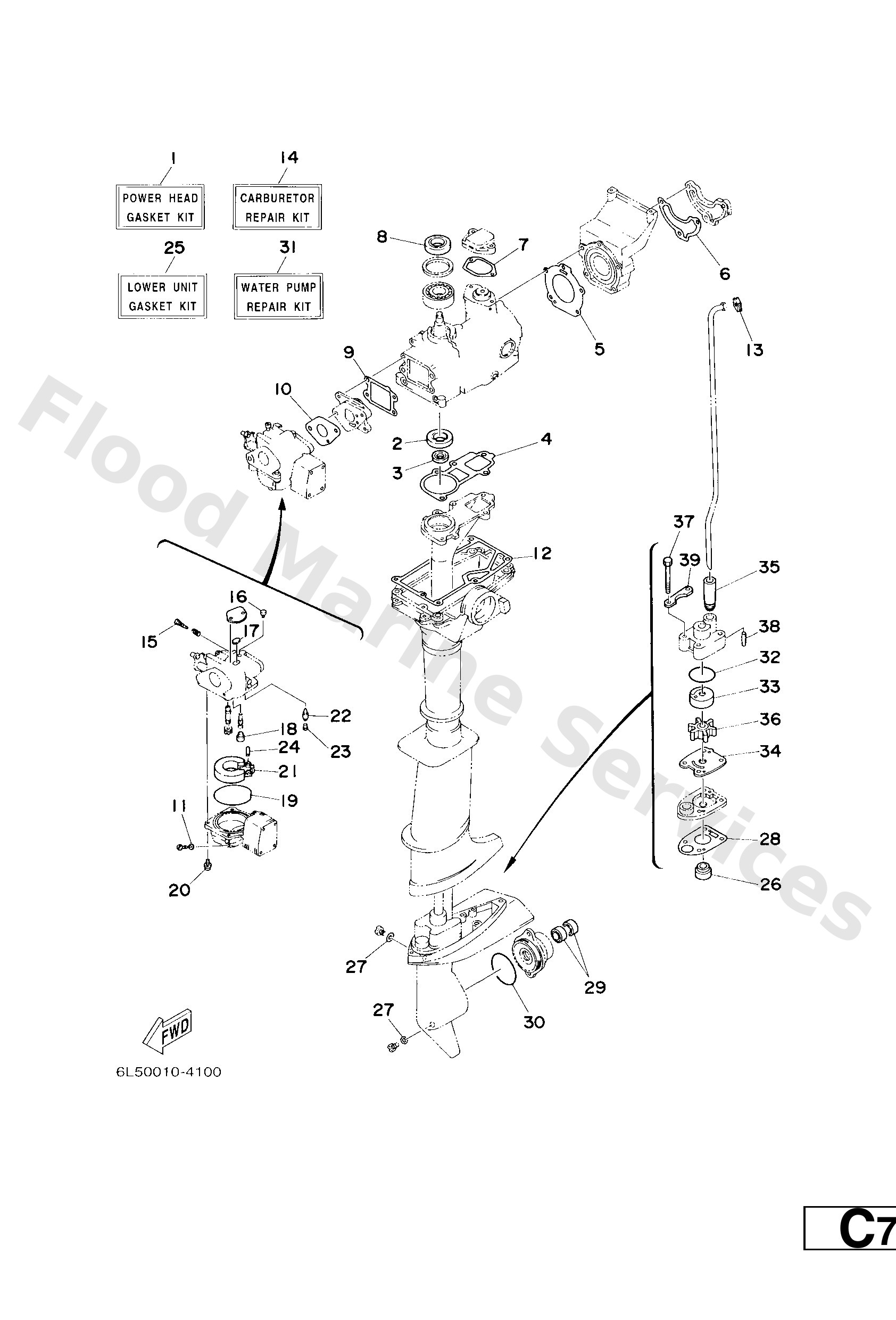

Diagram: REPAIR KIT
Parts List
Power head gasket kit
Diagram Reference: 1
Oil seal(6j1)
Diagram Reference: 2
Oil seal(6l5)
Diagram Reference: 3
Gasket, oil seal housing
Diagram Reference: 4
Gasket, cylinder head 1
Diagram Reference: 5
Gasket, head cover
Diagram Reference: 6
Gasket, cover
Diagram Reference: 7
Oil seal(6j1)
Diagram Reference: 8
Gasket, valve seat
Diagram Reference: 9
Gasket
Diagram Reference: 10
Washer
Diagram Reference: 11
Gasket, upper casing
Diagram Reference: 12
Damper, water seal 1
Diagram Reference: 13
Carburetor repair kit
Diagram Reference: 14
Screw, pilot
Diagram Reference: 15
Cap
Diagram Reference: 16
Packing
Diagram Reference: 17
Rubber cap
Diagram Reference: 18
Gasket, float chamber
Diagram Reference: 19
Screw, pan head(ga5)
Diagram Reference: 20
Float comp.
Diagram Reference: 21
Valve, needle
Diagram Reference: 22
Pin, valve
Diagram Reference: 23
Pin, arm
Diagram Reference: 24
Lower Unit Gasket Kit
Diagram Reference: 25
Oil seal
Diagram Reference: 26
Gasket
Diagram Reference: 27
Packing,l0wer casing
Diagram Reference: 28
Oil seal
Diagram Reference: 29
O-ring
Diagram Reference: 30
Water pump repair kit
Diagram Reference: 31
O-ring(6l5)
Diagram Reference: 32
Insert, cartridge
Diagram Reference: 33
Outer plate, cartridge
Diagram Reference: 34
Damper, water seal 2
Diagram Reference: 35
Impeller
Diagram Reference: 36
Bolt (682)
Diagram Reference: 37
Pin. dowel. (647)
Diagram Reference: 38
Plate
Diagram Reference: 39
