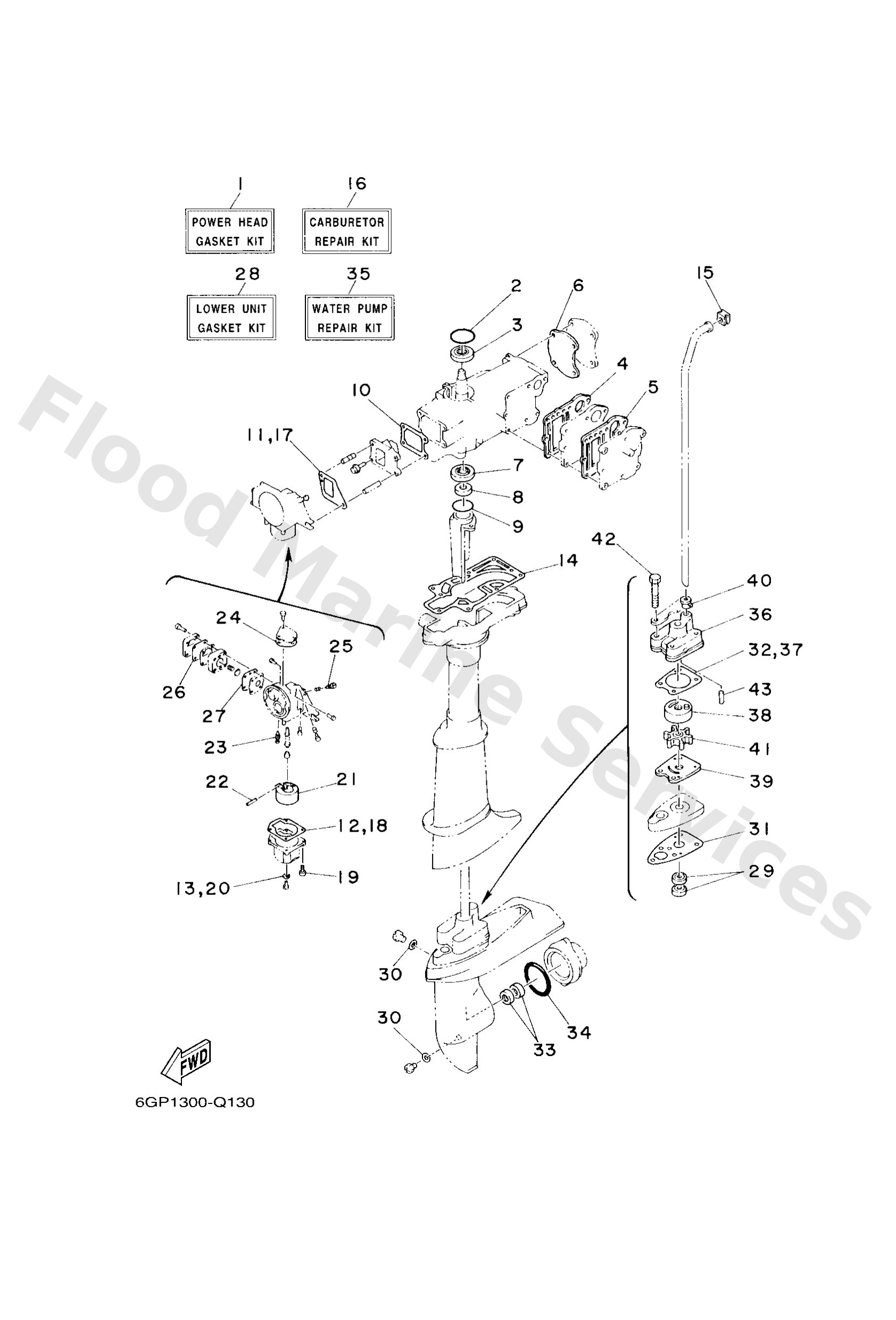

Diagram: REPAIR KIT

Diagram

Parts List

6E3W0001A4
Power head gasket kit
Diagram Reference: 1
Get Part
9321042159
O-ring (647)
Diagram Reference: 2
Get Part
9310220M25
Oil seal (6e0)
Diagram Reference: 3
Get Part
6E341112A1
Gasket,inner cover exhaust
Diagram Reference: 4
Get Part
6E341114A1
Gasket,outer cover exhaust
Diagram Reference: 5
Get Part
6E311193A1
Gasket,head cover
Diagram Reference: 6
Get Part
9310120M29
Oil seal(6j1)
Diagram Reference: 7
Get Part
9310110M25
Oil seal(6e0)
Diagram Reference: 8
Get Part
9321031MJ5
O-ring
Diagram Reference: 9
Get Part
6E013621A2
Gasket, valve seat
Diagram Reference: 10
Get Part
6E014198A0
Gasket
Diagram Reference: 11
Get Part
6E01438400
Gasket, float chamber
Diagram Reference: 12
Get Part
6461419801
Gasket
Diagram Reference: 13
Get Part
6E045113A1
Gasket,upper casing
Diagram Reference: 14
Get Part
6464436500
Damper, water seal 1
Diagram Reference: 15
Get Part
6E0W009304
Carbureetor repair kit
Diagram Reference: 16
Get Part
9798004116
Screw, with washer(61b)
Diagram Reference: 19
Get Part
6E71438501
Float
Diagram Reference: 21
Get Part
6471438600
Pin, float
Diagram Reference: 22
Get Part
6F51439200
Valve, needle
Diagram Reference: 23
Get Part
6E01422700
Gasket
Diagram Reference: 24
Get Part
6471432300
Screw, air adjusting
Diagram Reference: 25
Get Part
6E02447100
Diaphragm
Diagram Reference: 26
Get Part
6E02441100
Diaphragm
Diagram Reference: 27
Get Part
6E0W0001C1
L0wer unit gasket kit
Diagram Reference: 28
Get Part
9310110M14
Oil seal
Diagram Reference: 29
Get Part
9043008003
Gasket
Diagram Reference: 30
Get Part
6E045315A0
Packing,lower casing
Diagram Reference: 31
Get Part
6E044315A0
Gasket,water pump 1
Diagram Reference: 32
Get Part
9310113M12
Oil seal
Diagram Reference: 33
Get Part
9321048214
O-ring
Diagram Reference: 34
Get Part
6E0W0078A3
Water pump repair kit
Diagram Reference: 35
Get Part
6E04431100
Housing, water pump
Diagram Reference: 36
Get Part
6E04432202
Insert, cartridge
Diagram Reference: 38
Get Part
6E04432300
Outer plate, cartridge
Diagram Reference: 39
Get Part
6E04436600
Damper, water seal 2
Diagram Reference: 40
Get Part
6E04435200
Impeller
Diagram Reference: 41
Get Part
9709506045
Bolt, hexagon
Diagram Reference: 42
Get Part
9360418080
Pin. dowel. (647)
Diagram Reference: 43
Get Part
