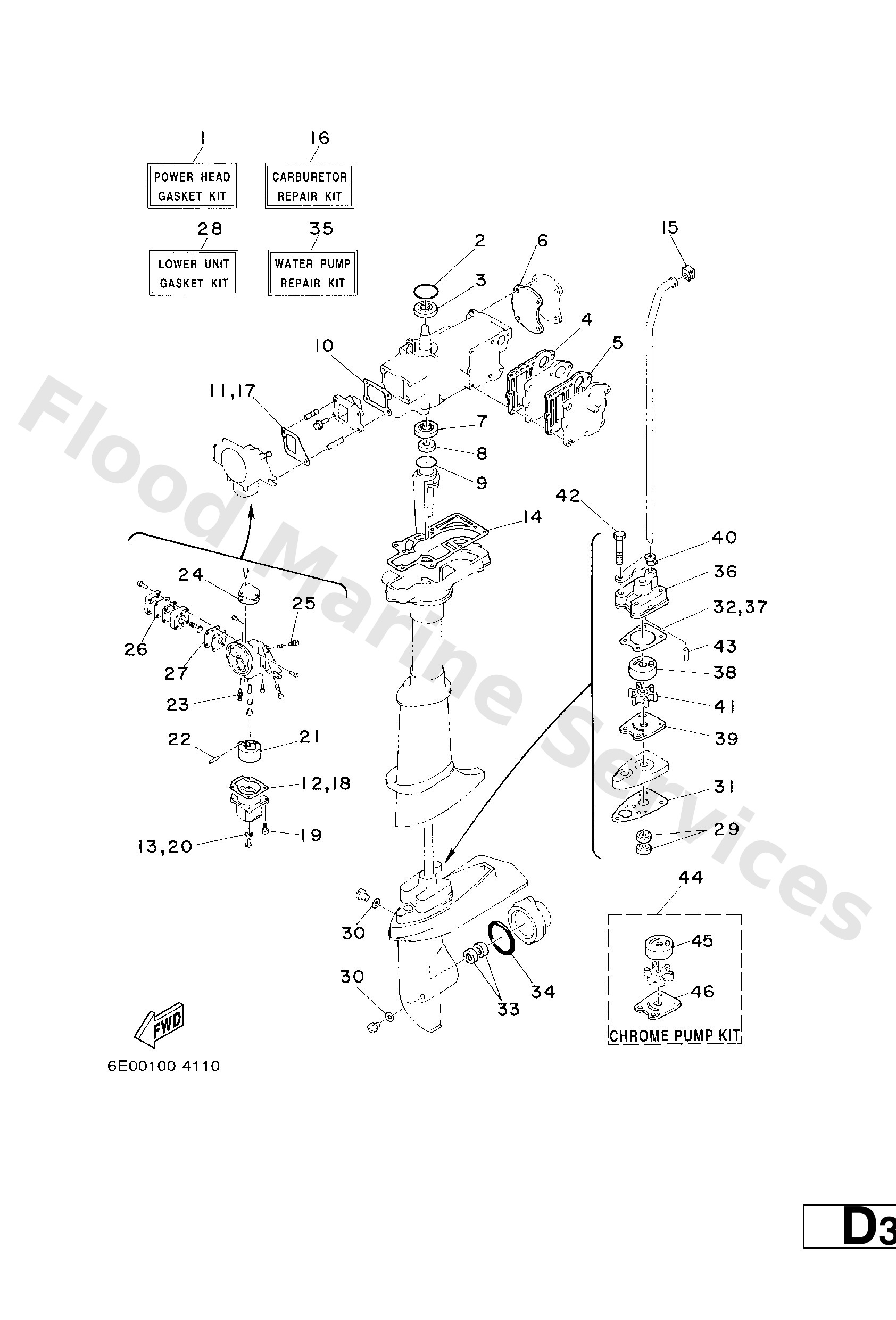

Parts List
Power head gasket kit
Diagram Reference: 1
Gasket kit
Diagram Reference: 1
O-ring (647)
Diagram Reference: 2
Oil seal (6e0)
Diagram Reference: 3
Gasket,inner cover exhaust
Diagram Reference: 4
Gasket,inner cover exhaust
Diagram Reference: 4
Gasket,outer cover exhaust
Diagram Reference: 5
Gasket,outer cover exhaust
Diagram Reference: 5
Gasket,head cover
Diagram Reference: 6
Gasket,head cover
Diagram Reference: 6
Oil seal(6j1)
Diagram Reference: 7
Oil seal(6e0)
Diagram Reference: 8
O-ring
Diagram Reference: 9
Gasket, valve seat
Diagram Reference: 10
Gasket
Diagram Reference: 11
Gasket, float chamber
Diagram Reference: 12
Gasket
Diagram Reference: 13
Gasket,upper casing
Diagram Reference: 14
Damper, water seal 1
Diagram Reference: 15
Carbureetor repair kit
Diagram Reference: 16
Screw, with washer(61b)
Diagram Reference: 19
Float
Diagram Reference: 21
Pin, float
Diagram Reference: 22
Valve, needle
Diagram Reference: 23
Gasket
Diagram Reference: 24
Screw, air adjusting
Diagram Reference: 25
Diaphragm
Diagram Reference: 26
Diaphragm
Diagram Reference: 27
L0wer unit gasket kit
Diagram Reference: 28
Oil seal
Diagram Reference: 29
Gasket
Diagram Reference: 30
Packing,lower casing
Diagram Reference: 31
Gasket,water pump 1
Diagram Reference: 32
Oil seal
Diagram Reference: 33
O-ring
Diagram Reference: 34
Water pump repair kit
Diagram Reference: 35
Housing, water pump
Diagram Reference: 36
Insert, cartridge
Diagram Reference: 38
Outer plate, cartridge
Diagram Reference: 39
Damper, water seal 2
Diagram Reference: 40
Impeller
Diagram Reference: 41
Bolt, hexagon
Diagram Reference: 42
Pin. dowel. (647)
Diagram Reference: 43
11 −
Diagram Reference: 44
Insert, cartridge
Diagram Reference: 45
Outer plate, cartridge
Diagram Reference: 46
