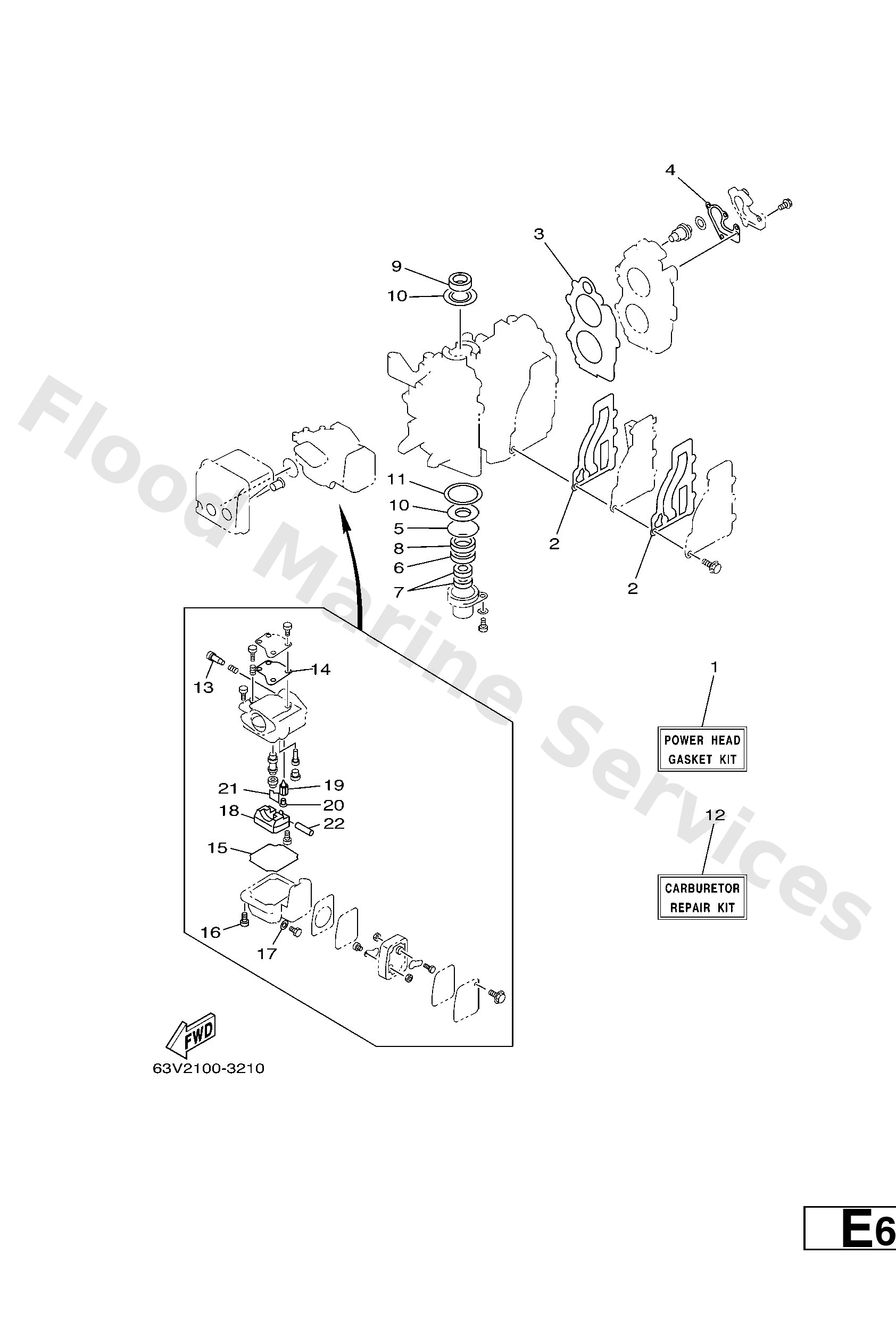

Diagram: REPAIR KIT 1

Diagram

Parts List

63VW000102
Gasket kit
Diagram Reference: 1
Get Part
63V41112A0
Gasket, exhaust inner cover
Diagram Reference: 2
Get Part
63V11181A1
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
68212414A1
Gasket, cover
Diagram Reference: 4
Get Part
9321046M16
O-ring (688)
Diagram Reference: 5
Get Part
9310125018
Oil seal
Diagram Reference: 6
Get Part
9310113018
Oil seal
Diagram Reference: 7
Get Part
9310225M48
Oil seal(63v)
Diagram Reference: 8
Get Part
9311023M00
Oil seal (682)
Diagram Reference: 9
Get Part
63V1144500
Spacer
Diagram Reference: 10
Get Part
9020146M29
Washer, plate(63v)
Diagram Reference: 11
Get Part
63VW009300
Carburetor repair kit
Diagram Reference: 12
Get Part
6791492300
Screw, pilot
Diagram Reference: 13
Get Part
63V1412600
Gasket
Diagram Reference: 14
Get Part
63V1498400
Gasket, float chamber
Diagram Reference: 15
Get Part
9798004114
Screw, pan head(ga5)
Diagram Reference: 16
Get Part
65W1439800
Washer
Diagram Reference: 17
Get Part
63V1498500
Float
Diagram Reference: 18
Get Part
6G11454601
Valve, needle
Diagram Reference: 19
Get Part
6761418600
Pin, valve
Diagram Reference: 20
Get Part
6631415900
Clip
Diagram Reference: 21
Get Part
6H41454800
Pin, float arm
Diagram Reference: 22
